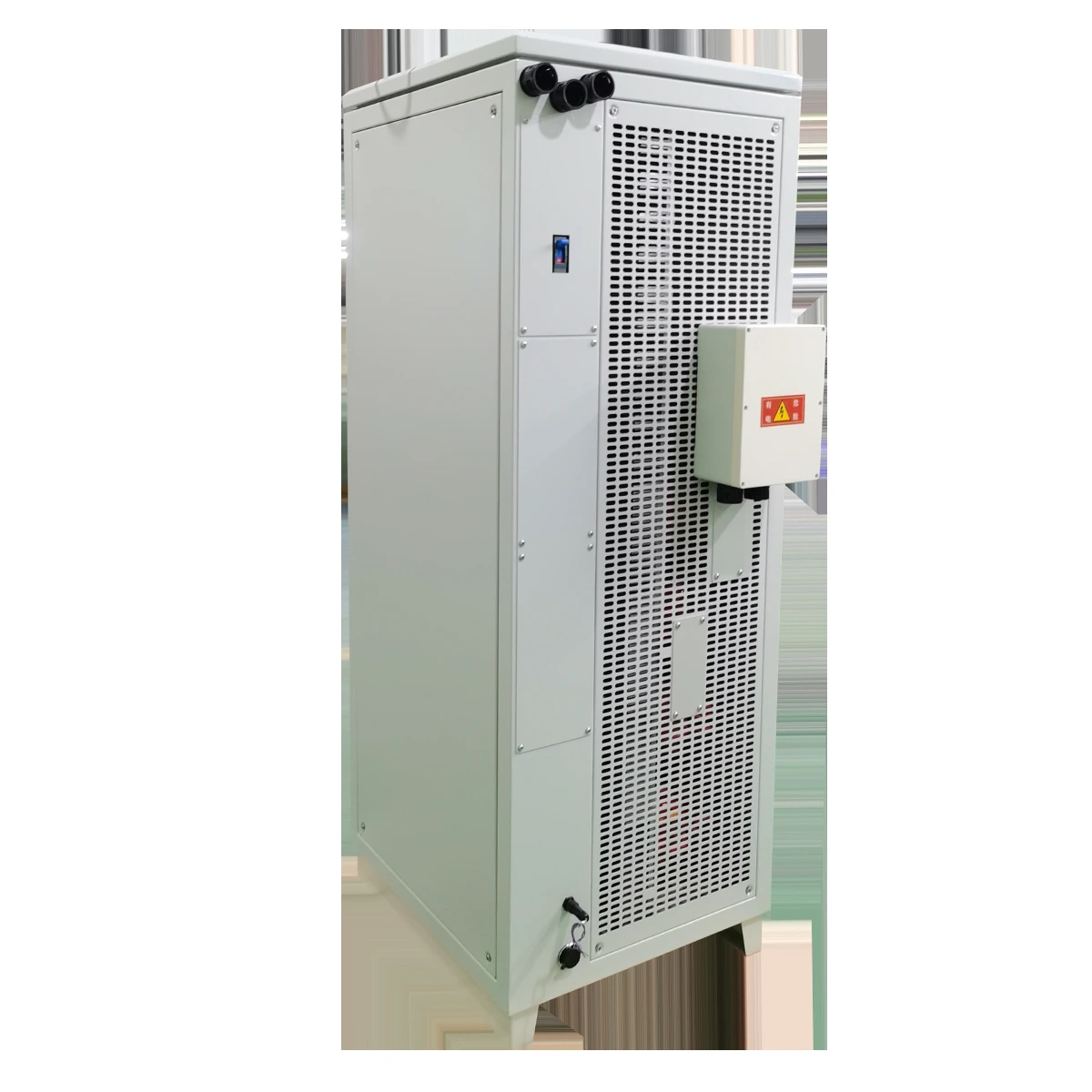

Micro-arc Oxidation MAO Power Source 750V 100A Industrial-Grade Anodizing Rectifier

Executive Summary
This industrial high frequency rectifier factory certified power source delivers a robust 750V at 100A output, purpose-built for the demanding plasma electrolytic oxidation (PEO) environment. It provides the precise voltage–time curve required for ceramic coating formation on lightweight alloys, overcoming the limitations of traditional DC supplies in maintaining stable anodic current density during breakdown. Whether you are scaling a magnesium alloy ceramic coating line or need a reliable titanium bio-compatible oxide process, this unit offers the dynamic arc suppression and energy efficiency required for consistent, high-quality coatings.
Part 1 Key Features & Engineering Highlights
Our engineers designed this system around a true IGBT high-frequency inverter topology. This avoids the massive iron-core losses and slow response times of older silicon-controlled rectifiers. You get rapid spark quenching and finer control over the oxide layer porosity. The IGBT rectifier manufacturer pedigree ensures a mean time between failures exceeding 50,000 hours under full load.
We understand that a MAO bath is a chaotic electrical load. The arc is constantly extinguishing and reigniting. Our digital current loop reacts in under one millisecond to maintain your set density, preventing “soft sparking” that ruins part finish. This heavy-duty DC power supply price point reflects a total cost of ownership that beats off-brand units within twelve months due to lower scrap rates.
Part 2 Technical Specifications Table
| Parameter | Specification |
| — | — |
| Input Voltage | 3-Phase AC 380V±10% (50/60Hz) |
| Rated Output Voltage | 0V – 750V (continuously adjustable) |
| Rated Output Current | 0A – 100A (continuously adjustable) |
| Output Power | 75 kW maximum |
| Control Method | IGBT Pulse Width Modulation (PWM) |
| Regulation Mode | CV / CC automatic crossover |
| Voltage Regulation | ≤ 1% |
| Current Ripple | 90% at full load |
| Cooling Method | Forced air / water-cooled option |
| Enclosure Rating | IP54 (control section) |
| Communication Protocols | RS485 Modbus RTU, Ethernet, 4-20mA analog |
Part 3 Advanced Built-in Protection Systems
This unit does not just fail safe; it performs architecture with nested interlock protection. The system monitors real-time insulation resistance to ground, hard-faults on load arcing above your threshold, and executes a zero-current shutdown if the electrolyte level drops unexpectedly.
Key protective systems include:
– Overtemperature protection on IGBT modules and heat sink
– Overvoltage and overcurrent electronic snap-back (no physical fuses to replace)
– Phase loss and open-phase detection on the input line
– Short-circuit proof output with automatic recovery
Part 4 Target Industrial Applications
This power source is a field-tested solution for plasma electrolytic oxidation, specifically where high voltage is non-negotiable. It delivers the initiation energy needed for the “breakdown” phase on magnesium alloys and titanium.
– Magnesium Alloy Ceramic Coating: Achieve a dense, highly adhesive MgO layer for automotive and aerospace components. This is ideal for parts requiring corrosion resistance per ASTM B457.
– Titanium Bio-Compatible Oxide: Produce the rutile-rich porous oxide layer used in medical implants, where dielectric strength and pore size uniformity are critical.
– Aluminum Alloy Hard Coating: Run continuous high-energy pulses to produce alpha-alumina layers exceeding 70 HRC for wear surfaces.
– Custom Plasma Electrolytic Nitriding: For experimental and batch processes where power modulation is key to phase control.
Part 5 Customization and Tailored Engineering Services
Your process is not off-the-shelf. Our custom current voltage rectifier service allows you to modify the standard 750V 100A platform or build a new architecture from scratch.
We offer full modification capability from 1V to 1000V and from 1A to 100,000A. All units output DC only. Add-on modules to integrate into your MAO line include:
– Process Timer: Scheduled power ramp-up and “soak” stages for uniform coating.
– Multi-Stage Profile Control: Store up to 200 unique voltage-time/current-time profiles. This is essential for nano-structured coating recipes.
– Ampere-Minute Integrator: Real-time monitoring of charge transferred to the work piece, triggering automatic cycle termination.
– Automatic Reverse Polarity: Cleans cathode buildup and bath contamination in-situ.
– Soft-Start: Prevents impact current blowing fuses or tripping breakers during startup.
For closed-loop manufacturing, we integrate RS485 Modbus RTU, Ethernet, and 4-20mA interfaces for direct PLC control and data logging. The pulse function supports independent positive/negative wave adjustment from 1 to 3000 Hz for complete spark energy management.
Direct your inquiry to our industrial high frequency rectifier factory team. We will confirm your input AC voltage, cooling medium, and the physical dimensions required for your tank house layout.
