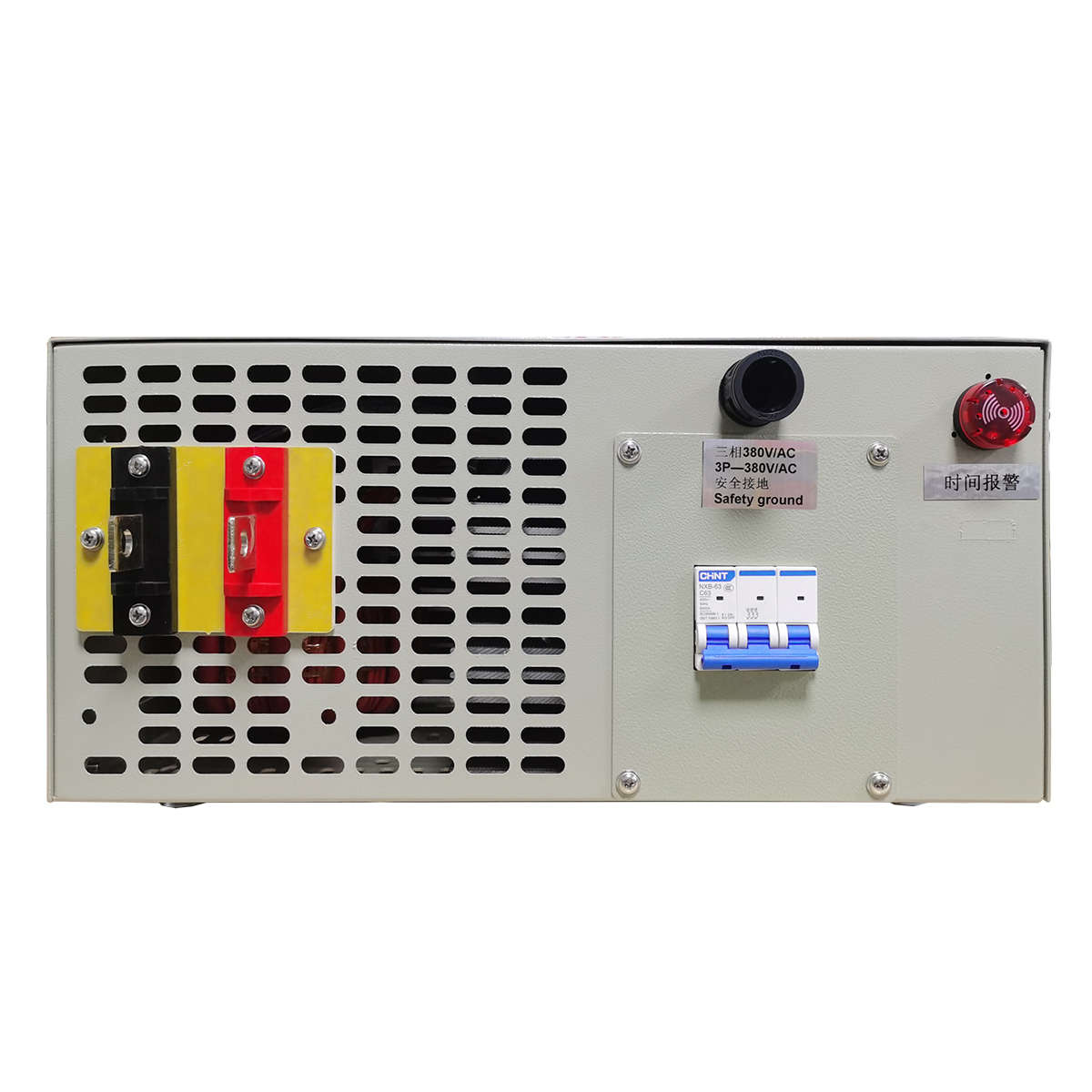

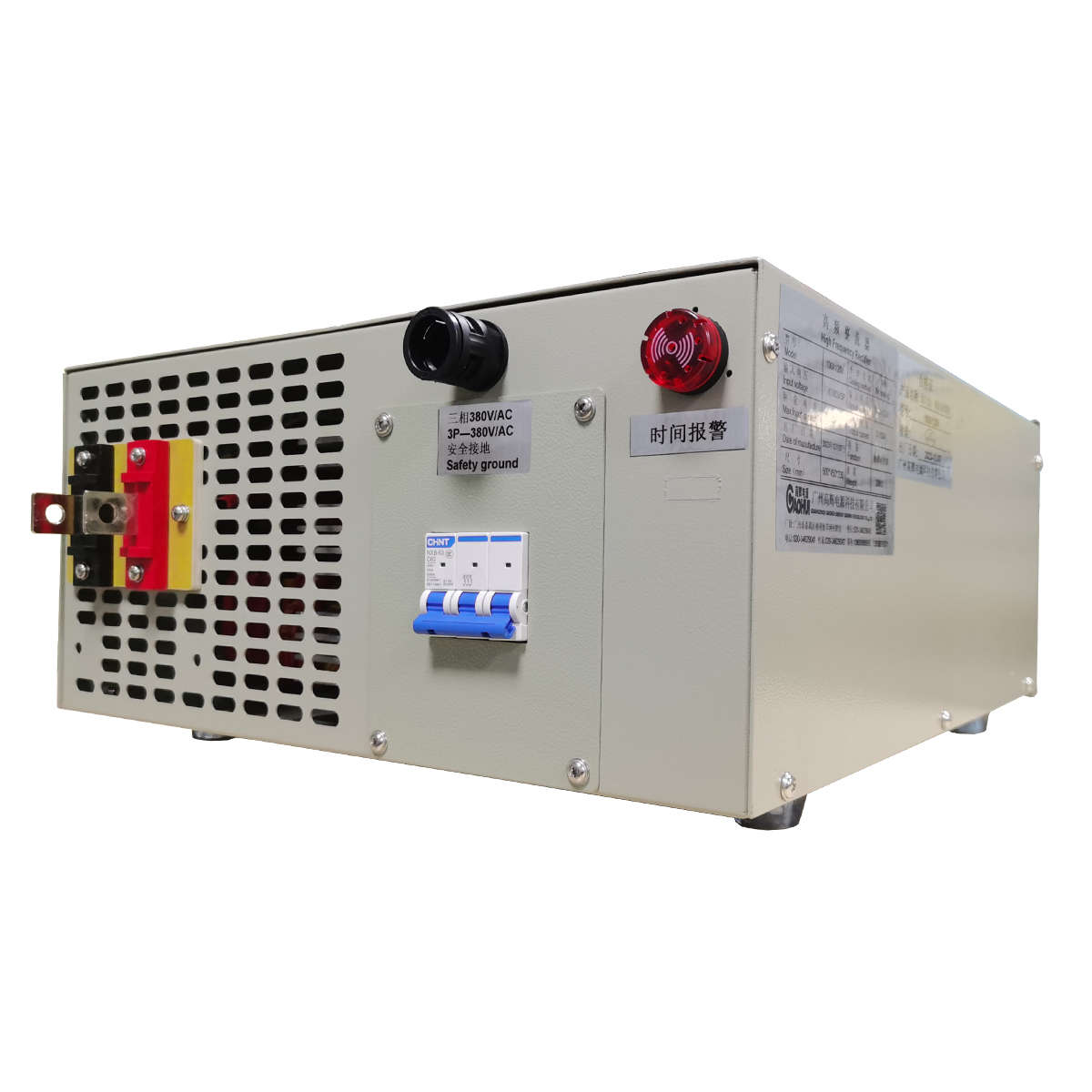

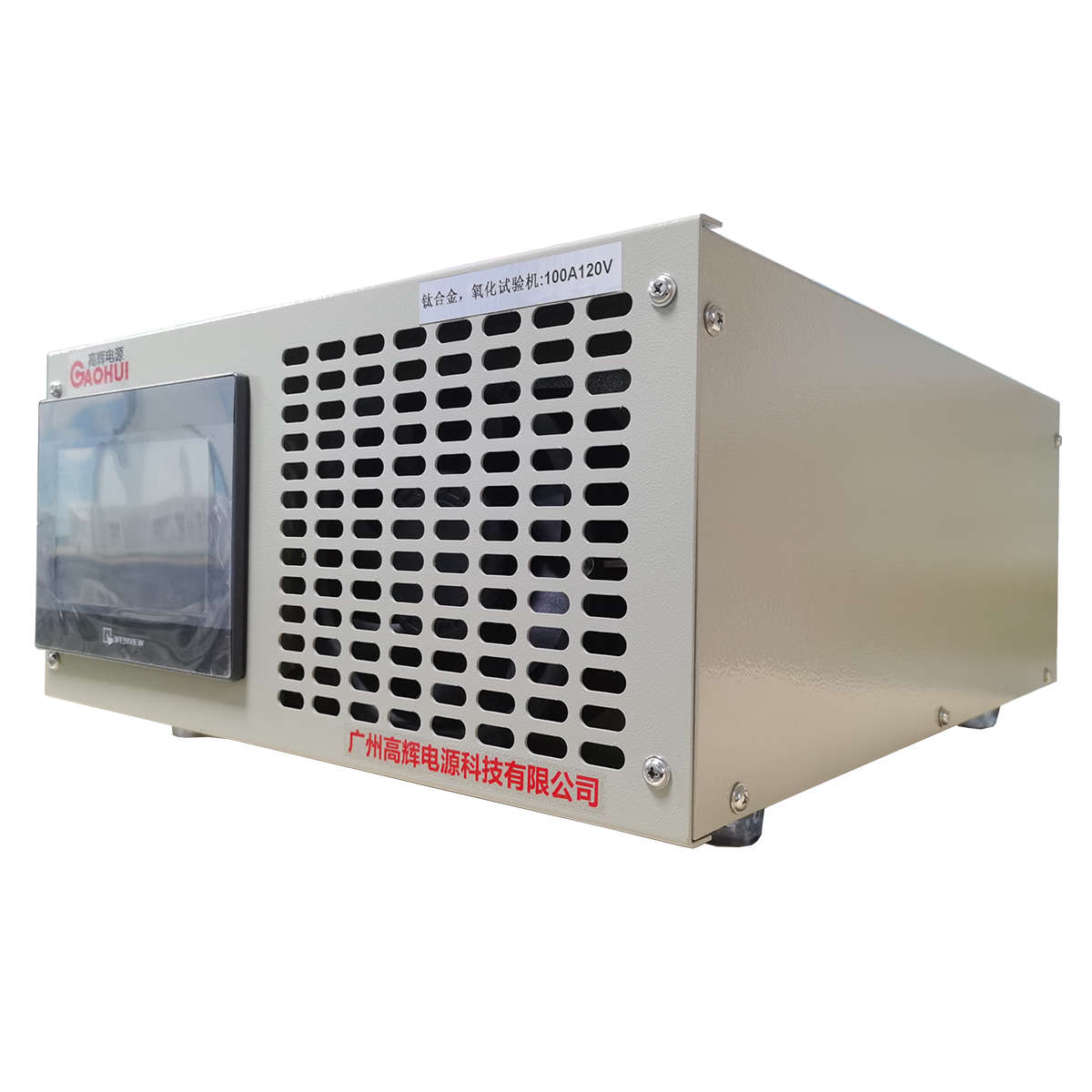

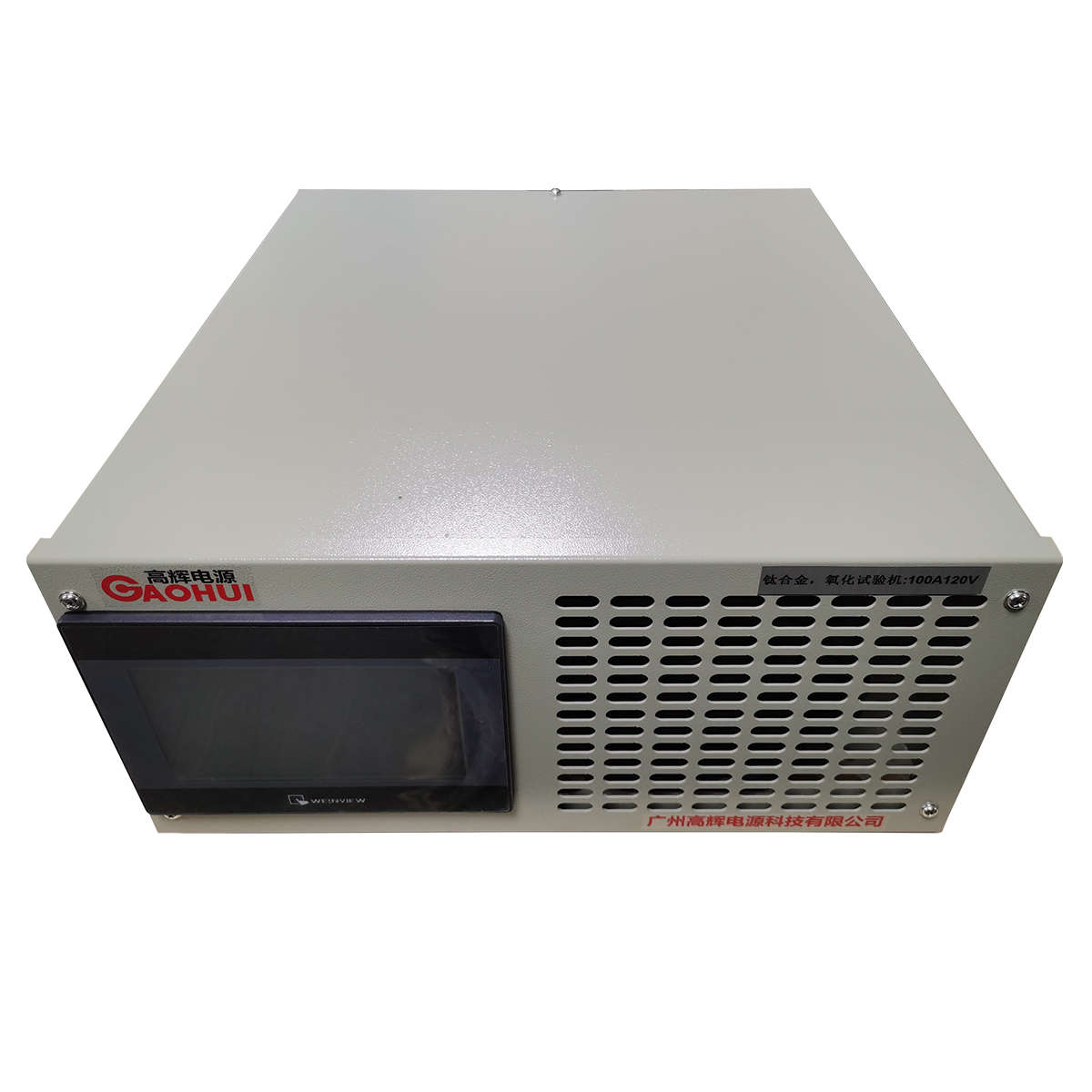

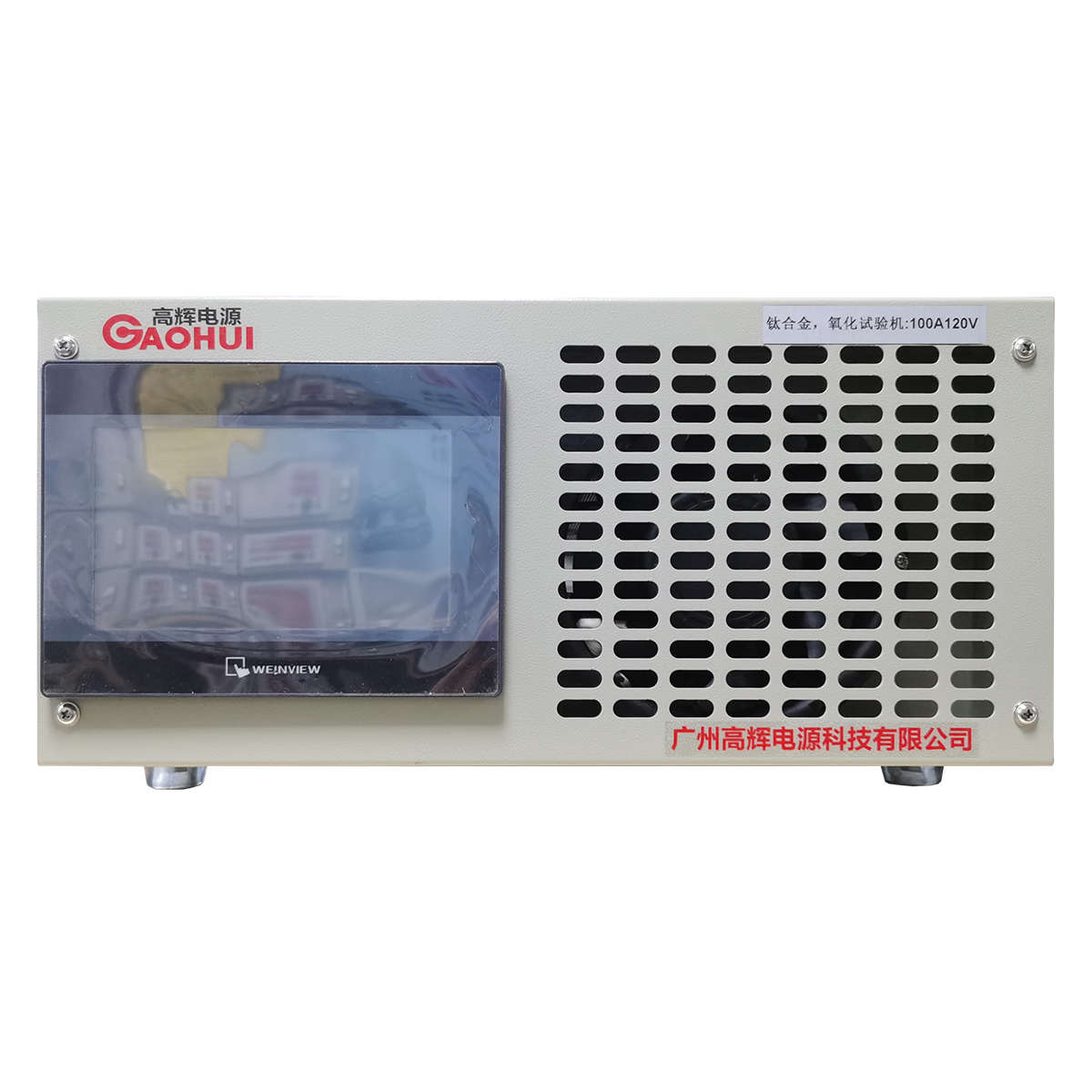

100A 120V titanium alloy oxidation test rectifier

Working Principle

• PLC control and touchscreen operation.
• Process curve control is possible; voltage can rapidly rise to the process voltage value within 0.5 seconds.
• RS485 communication interface is available for automated management by a host computer.
• Up to 30 process segments and 50 workpiece memory functions can be set.
• Input Voltage: Three-phase 380V 50Hz
• Output Voltage: DC200-500V
• Output Current: DC100A-3000A



Advantages

1. High Stability: Advanced technology, imported core components, strict quality control, and comprehensive protection functions enhance product stability.
2. High-Precision Control: High-frequency switching control, fast response speed, and output control accuracy up to 1% throughout the entire process.
3. Excellent Energy Saving: Small size and light weight (SMALL AND LGHT is 1/5-1/10 the size of a controllable rectifier), making it easy to transport and install.
4. Small Size and Light Weight: 1/5-1/10 the size of a silicon controlled rectifier, making it easy to transport and install.
5. Comprehensive Protection Functions: Features protection against phase loss, overvoltage, undervoltage, short circuit, overcurrent, and overheating, providing all-around protection for the equipment.
