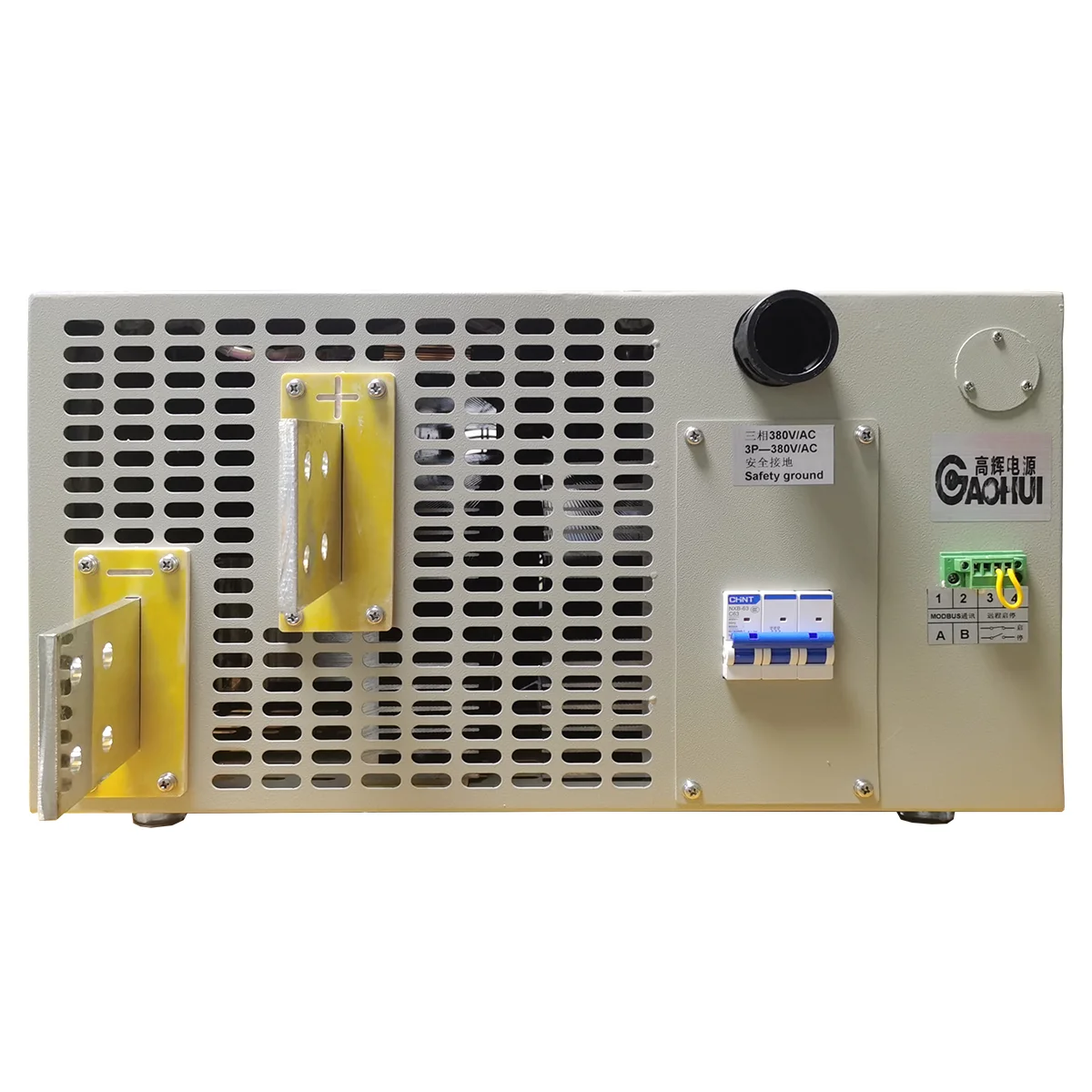

Part 1: Key Features
– High-efficiency IGBT-based switching technology delivers 36V DC at 1000A continuous output for demanding anodizing processes
– Precision digital control via RS485 Modbus RTU interface enables remote monitoring and automated voltage/current regulation
– Built-in over-voltage and over-current protection ensures reliable operation and protects downstream equipment
– Compact rack-mount design with low ripple output for consistent anodizing layer quality
– Programmable Logic Controller (PLC) integration supports pre-set parameter profiles for repeatable results
Part 2: Technical Specifications
| Output Voltage | 36V DC (adjustable 0-36V) |
| Output Current | 1000A (adjustable 0-1000A) |
| Input Power | Three-phase AC 380V±10%, 50/60Hz, 45.8KVA |
| Efficiency | >92% at full load |
| Ripple | <1% RMS at rated output |
| Control Interface | RS485 Modbus RTU, Ethernet, 4-20mA |
| Protection Class | IP20 (indoor use) |
| Operating Temperature | 0-50 degrees Celsius |
| Dimensions | 600mm x 400mm x 800mm (W x D x H) |
| Weight | Approximately 120kg |
Part 3: Built-in Protection Systems
Over-voltage protection automatically shuts down output if voltage exceeds 40V. Over-current protection activates at 1100A to prevent damage. Short-circuit protection triggers immediate output disconnect. Thermal protection with fan cooling ensures stable operation up to 50 degrees Celsius ambient. All protection parameters are user-configurable via the digital interface.
Part 4: Main Applications
– Sulfuric acid anodizing for aluminum and titanium components
– Hard anodizing at 3-12 Amps per square foot
– Color anodizing with dye at 140 degrees Fahrenheit
– Electroplating and electropolishing processes
– Nickel acetate sealing at 180 degrees Fahrenheit
Part 5: Customization and Tailored Engineering Services
GAOHUI factory offers full customization from 1V to 1000V and 1A to 100,000A for AC-DC rectifier systems. Available custom functions include Digital Process Timer for precise cycle control, Multi-Stage Programmable Profile Control for complex anodizing sequences, Ampere-Minute Integrator for charge calculation, Automatic Reverse Polarity for cleaning cycles, and Soft-Start Ramp-Up for gradual current application. Local/Remote Control options include push-button panels or HMI Touch Screen. Communication interfaces support RS485 Modbus RTU, Ethernet, and 4-20mA analog control. Pulse functions are adjustable from 1-100% duty cycle and 1-3000Hz frequency for specialized anodizing requirements.
