GAOHUI Heavy Duty Zinc Plating Rectifier (12V 800A) – Industrial IGBT Power Supply

Executive Summary
Your zinc plating line demands precision, efficiency, and relentless uptime. Standard power supplies introduce ripple that compromises coating adhesion and wastes energy. The GAOHUI 12V 800A rectifier, built in our industrial high frequency rectifier factory, delivers pure DC output with less than 3% ripple for superior crystal structure on acid zinc, alkaline cyan-free, and galvanized steel wire coatings. This is not a hobbyist unit; it is purpose-built for 24/7 production environments where every square foot of plating surface must receive consistent current density. Forget expensive, oversized SCR units – this high-frequency IGBT topology saves floor space and slashes your electrical bill.
Part 1 Key Features & Engineering Highlights
Real IGBT Switching Topology – Core modules from Infineon ensure >90% efficiency at full load, converting three-phase 380V AC into rock-stable 12V DC.
Ultra-Low Ripple Output – Patented multi-phase interleaving and dual LC filters keep ripple under 1.5% at 800A. This eliminates “burned” edges and pitting on zinc coatings.
Digital PID Regulation – Closed-loop control maintains voltage and current within 0.5% accuracy, critical for barrel plating of bolts and rack plating of automotive parts.
Industrial-Grade Coating – All PCBs are conformal-coated; bus bars are tin-plated copper; cooling fans are dual ball-bearing for 50,000-hour MTBF.

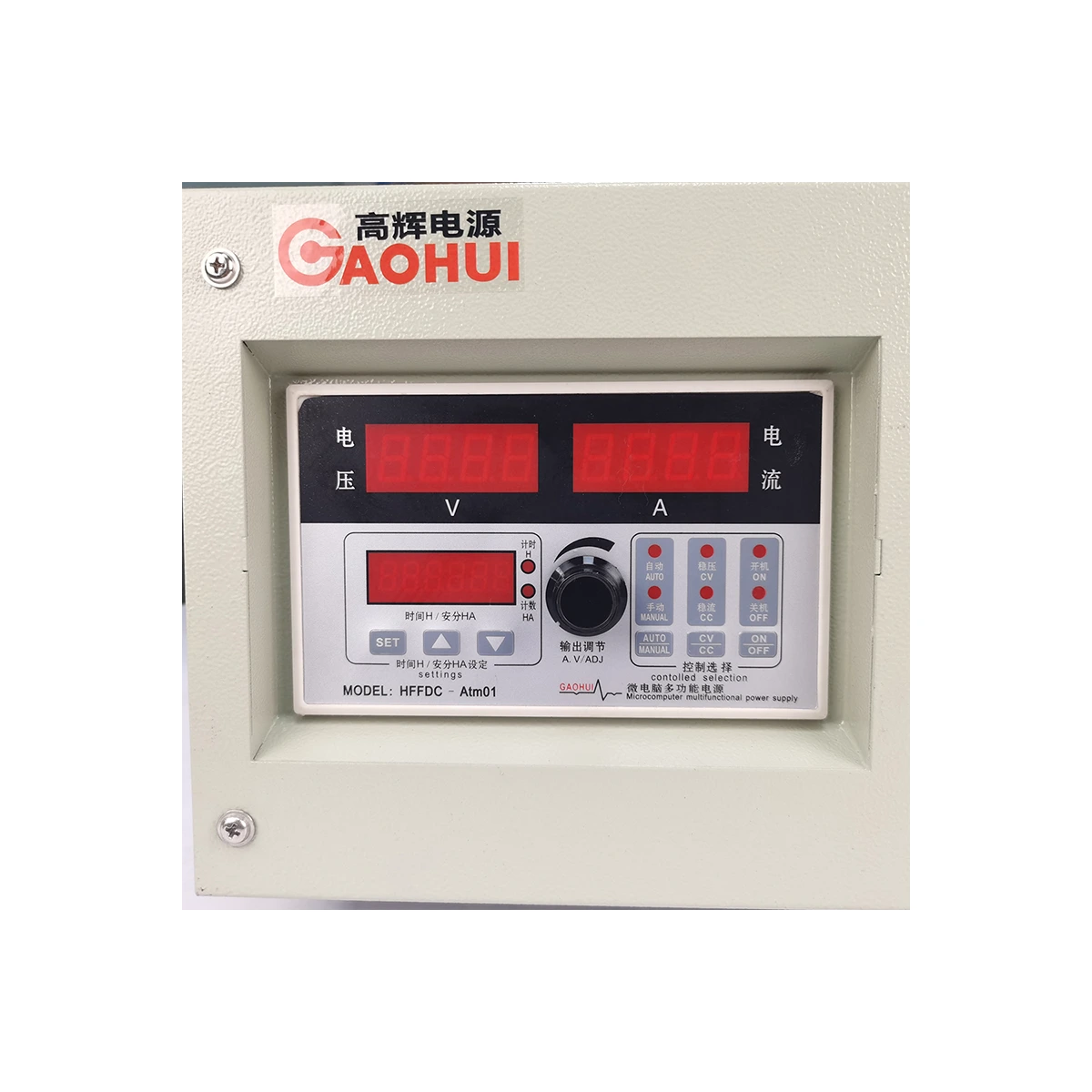

Front Panel Touch HMI – Intuitive color screen displays real-time voltage, amperage, Ah count, and fault history. No confusing codes.
Part 2 Technical Specifications Table
| Parameter | GAOHUI 12V 800A Specification |
| :— | :— |
| Input Voltage | Three-phase AC 380V ± 10%, 60Hz (IEC compliant) |
| Output Voltage Range | 0 – 12V (continuously adjustable, 1V step) |
| Output Current Range | 0 – 800A (continuous rating) |
| Output Ripple (rms) | ≤ 1.5% at rated load |
| Efficiency | ≥ 91% at full load |
| Control Method | IGBT PWM with digital PID |
| Cooling System | Forced air, front-to-back airflow |
| Protection Class | IP42 (standard), IP54 (optional) |
| Operating Temperature | -10°C to 45°C |
| Weight | Approx. 65 kg (unit only) |
| Dimensions (W×D×H) | 550 mm × 450 mm × 600 mm |
Part 3 Advanced Built-in Protection Systems
Short-Circuit Protection – Instantaneous trip (less than 5 µs) detects weld-through or anode shorts.
Over-Temperature Warning – Dual thermistors on IGBT heatsink trigger alarm at 75°C; shutdown at 85°C.
Phase Loss & Voltage Sag Detection – Continuous monitoring of three-phase input. Unit alarms if any phase drops below 340V.
Soft-Start Circuit – Ramps output over 0.5 seconds to prevent cathode “dumping” of zinc flakes.
Electronic Current Limiting – Set hard current limit from panel; unit folds back instead of tripping, ideal for complex-shaped parts.
Part 4 Target Industrial Applications
Acid Zinc Chloride Plating – Stable current eliminates white haze at high current density zones (rack lines for automotive fasteners).
Alkaline Non-Cyanide Zinc – The low-ripple DC prevents “burns” on high-strength steel parts (aircraft bolts, structural hardware).
Galvanized Steel Wire Continuous Coating – Wire speeds up to 30 m/min benefit from 800A buffered output without edge build-up.
Barrel Zinc Plating – Digital timer and ramp profile manage 3-amps per square foot for small parts (nuts, washers, clips).
Part 5 Customization and Tailored Engineering Services
Our factory delivers custom current voltage rectifier configurations for your exact bath chemistry. Send us your tank dimensions and desired plating time; we design the unit. All GAOHUI rectifiers support:
Voltage/Current Range – 1V to 1000V DC, 1A to 100,000A DC. Input is always AC (single or three-phase).
Integrated Process Modules – Include Process Timer (0-999 min), Multi-Stage Profile Control (up to 5 ramps), Ampere-Minute Integrator, Automatic Reverse Polarity (0-60 sec forward, 0-10 sec reverse), and Soft-Start (0-30 sec).
Communication Interfaces – RS485 Modbus RTU, Ethernet TCP/IP, and 4-20mA analog for PLC integration. All standard on IGBT rectifier manufacturer units.
Pulse Function – 1-3000 Hz adjustable duty cycle (0-100%) for specialized zinc-nickel alloy deposition.
Dimension & Cooling – Tower, rack, or explosion-proof enclosure. Liquid cooling available for extreme current densities.
Get the heavy-duty DC power supply price for the 12V 800A model directly from the manufacturer. Contact our engineering team for a quote optimized for your production volume.
