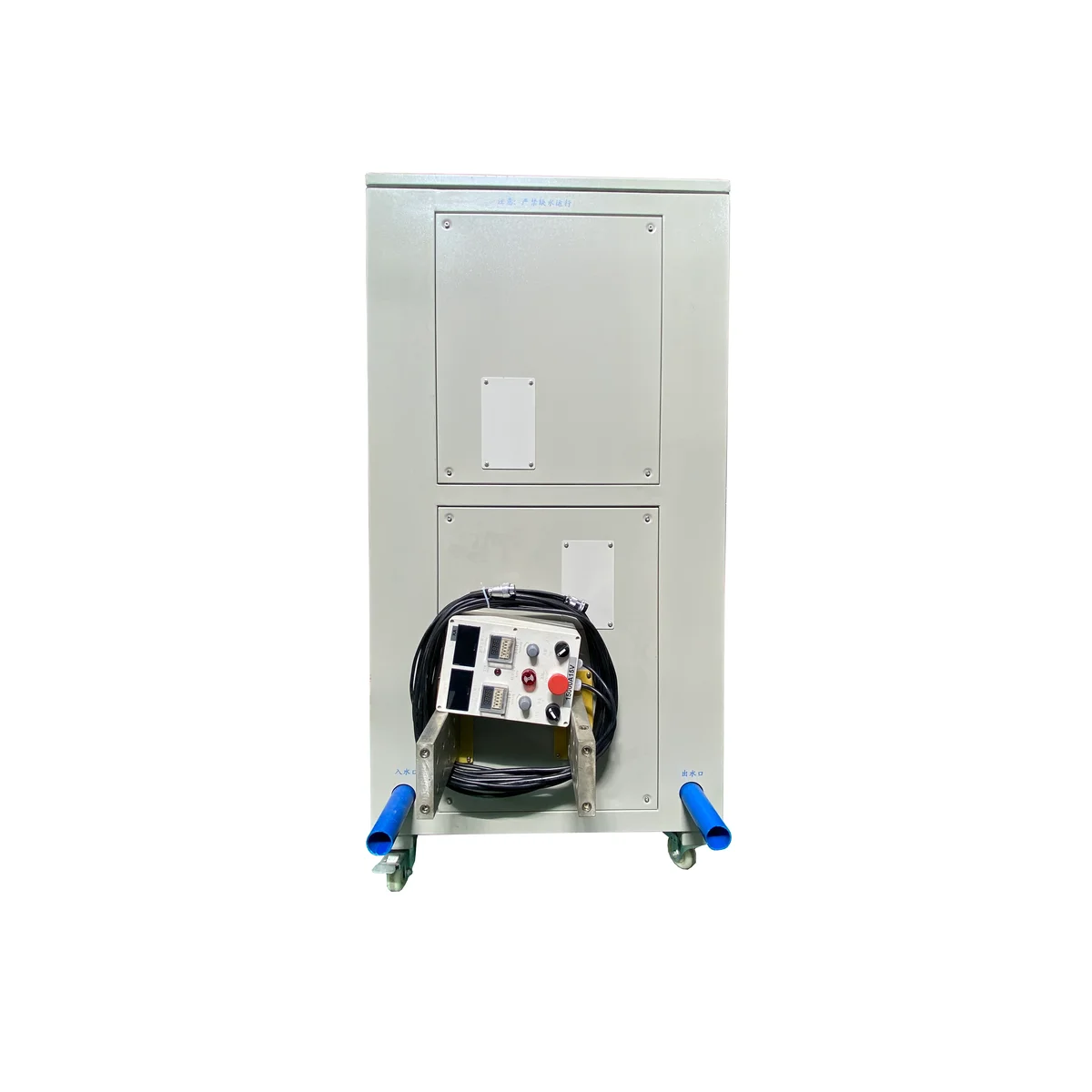

6V 500A Precious Metal Plating Rectifier

The 6V 500A precious metal plating rectifier supplies controlled DC for a defined gold, silver, platinum-group or precious-metal alloy plating process. Selection must identify the deposited metal, coating purpose, chemistry and production method rather than relying on the term “precious metal” alone.

Published Rating

Rated DC output	6 V, 500 A
Primary application	Precious metal electroplating
AC input for quotation	Specify AC 220 V or 380 V; AC 415 V may be selected for the site. Final input configuration requires confirmation.
Main regulation mode	Constant-current or constant-voltage main mode, selected for the process. Final control configuration requires confirmation.
Cooling and enclosure	Selected from output power, duty cycle, ambient temperature, installation environment and available cooling conditions.

Application Definition

Soft gold, hard gold, decorative deposits, wear-resistant contact layers, flash plating, thick deposits and electroforming can have very different current-density and waveform requirements. Use the chemistry supplier’s data sheet and the approved production trial as the governing process source.

Calculate the initial current with I = J × A. Include actual energized area, load quantity and selective regions. Voltage depends on bath conductivity, contacts, spacing and connection losses, so the 6 V rating must be checked against the loaded cell.

Information Required for Quotation

• Deposited metal or alloy and chemistry supplier/product name.
• Coating purpose, target thickness, thickness tolerance and production cycle.
• Substrate, underplate, effective area and loading method.
• Rack, barrel, selective, jet or continuous plating method.
• Approved DC or pulse waveform and any ampere-minute or batch-record requirement.

Configuration Boundary

This page confirms the published DC rating and application only. Cooling method, enclosure grade, control interface, ramp profile, timer, ampere-hour control, pulse operation, polarity reversal, communication protocol and any special ripple limit are optional project items only when confirmed in writing. They are not included by default.

Frequently Asked Questions

Can one setting cover gold and silver plating?

No. Metal, chemistry, current density, anode system and coating objective must be evaluated separately.

Is pulse plating included?

Not by default. The chemistry or process owner must supply the approved waveform.

How is 500 A checked?

Use effective energized area and approved current density, then verify the largest production load.

See the complete precious metal plating rectifier range, or send the process data for a rectifier selection review.
