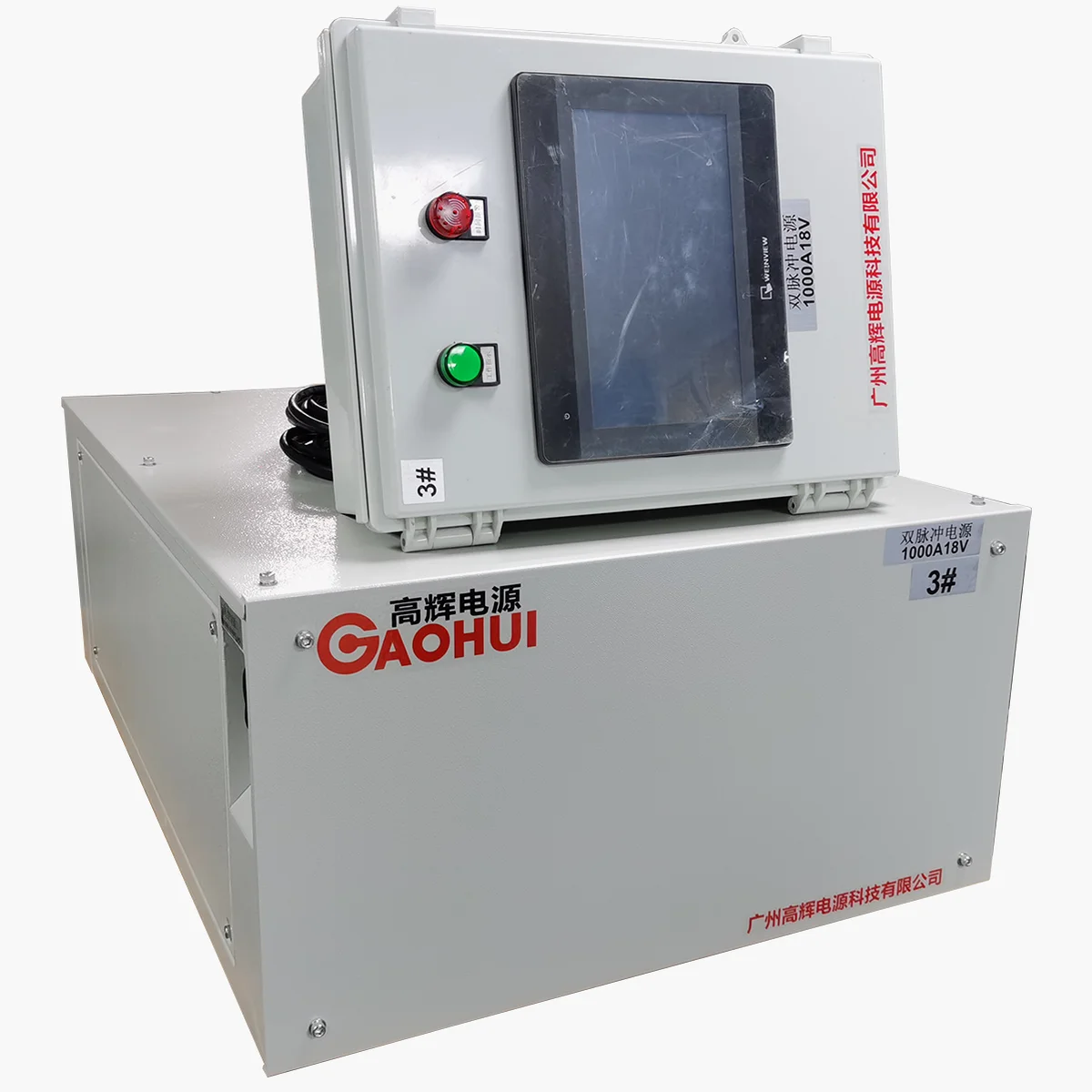

12V 1000A Precious Metal Plating Rectifier

The 12V 1000A Precious Metal Plating Rectifier is a unidirectional DC power supply rated at 12 V and 1000 A for precious metal electroplating projects. The published rating defines the available DC envelope; it does not replace process calculations or establish the normal operating setpoint.

Published Rating and Electrical Boundary

Rated DC output	12 V DC, 1000 A DC
Application	precious metal electroplating
Regulation	Constant-current or constant-voltage main mode, selected for the confirmed process
AC input	AC 380 V or 415 V. Final phase, frequency and site conditions must be confirmed.

This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.

Application and Selection

This page applies to gold, silver, platinum-group or precious-metal alloy deposition for a defined coating objective Use effective energized area and the current-density window from the exact chemistry; soft gold, hard gold, flash and thick deposits are not interchangeable. Confirm loaded cell voltage from chemistry, contacts, spacing, selective electrodes and connection losses.

The metal or alloy, coating purpose, underplate and production method must be defined before selecting the power supply.

Working-point focus: the nameplate rating is an available ceiling, not a recommended operating recipe. The normal working current and voltage must come from the validated process window and actual load.

Information Required for Selection

• metal or alloy
• chemistry supplier and product
• substrate and underplate
• coating purpose and thickness
• effective area and load
• approved current density
• rack, barrel, selective or continuous method
• waveform and traceability requirements

Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.

Configuration Boundary

The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.

Frequently Asked Questions

Is the rated current the normal process current?

No. The rating is the product ceiling; the working setpoint must follow the validated process window and actual load.

Can the process name determine the final voltage?

No. Loaded voltage depends on chemistry or load behavior, spacing, contacts, conductors and the production arrangement.

Are pulse, reversal and communications included?

Only when they are written into the confirmed configuration. They are not assumed from the product title.

Review related options in Electroplating Rectifiers, or contact Gao Hui with the selection data above.
