GAOHUI Hard Anodizing Power Source 60V 500A IGBT Rectifier manufacturer custom current voltage rectifier

The GAOHUI 60V 500A unit is engineered specifically for the demanding process of mil-spec hard anodizing, where the formation of a dense, wear-resistant oxide layer on components like pistons and aerospace actuators requires precise, high-voltage current delivery. Unlike general-purpose lab supplies that falter under continuous industrial load, this unit leverages advanced IGBT switching technology to maintain a rock-solid DC output, achieving the high current densities necessary for thick coating builds. As a leading industrial high frequency rectifier factory, we design for zero allowable downtime in production environments, providing the current stability that differentiates a sealed coating from a burnt part. This system eliminates the voltage sag common in competitor units (e.g., typical adjustable 60V 20A lab sources), ensuring your tank maintains exactly 500A throughout the entire cycle for a consistent oxide structure.
Part 1 Key Features & Engineering Highlights
Constant Current / Constant Voltage (CC/CV) with automatic crossover ensures the rectifier holds the precise 30V threshold critical for hard anodizing, preventing the ‘cooking’ effect seen at higher voltages while driving the reaction at full 500A load.
Industrial-grade IGBT design delivers >90% efficiency, dramatically reducing heat waste and operational costs compared to aged SCR or linear supplies. This high-frequency topology allows for rapid transient response as the load changes during thick coating build-up.
True 0-60V adjustable range, not a narrow window. This gives you the flexibility to process standard decorative anodize (16-17V) up to full hard coat requirements without needing a second unit.

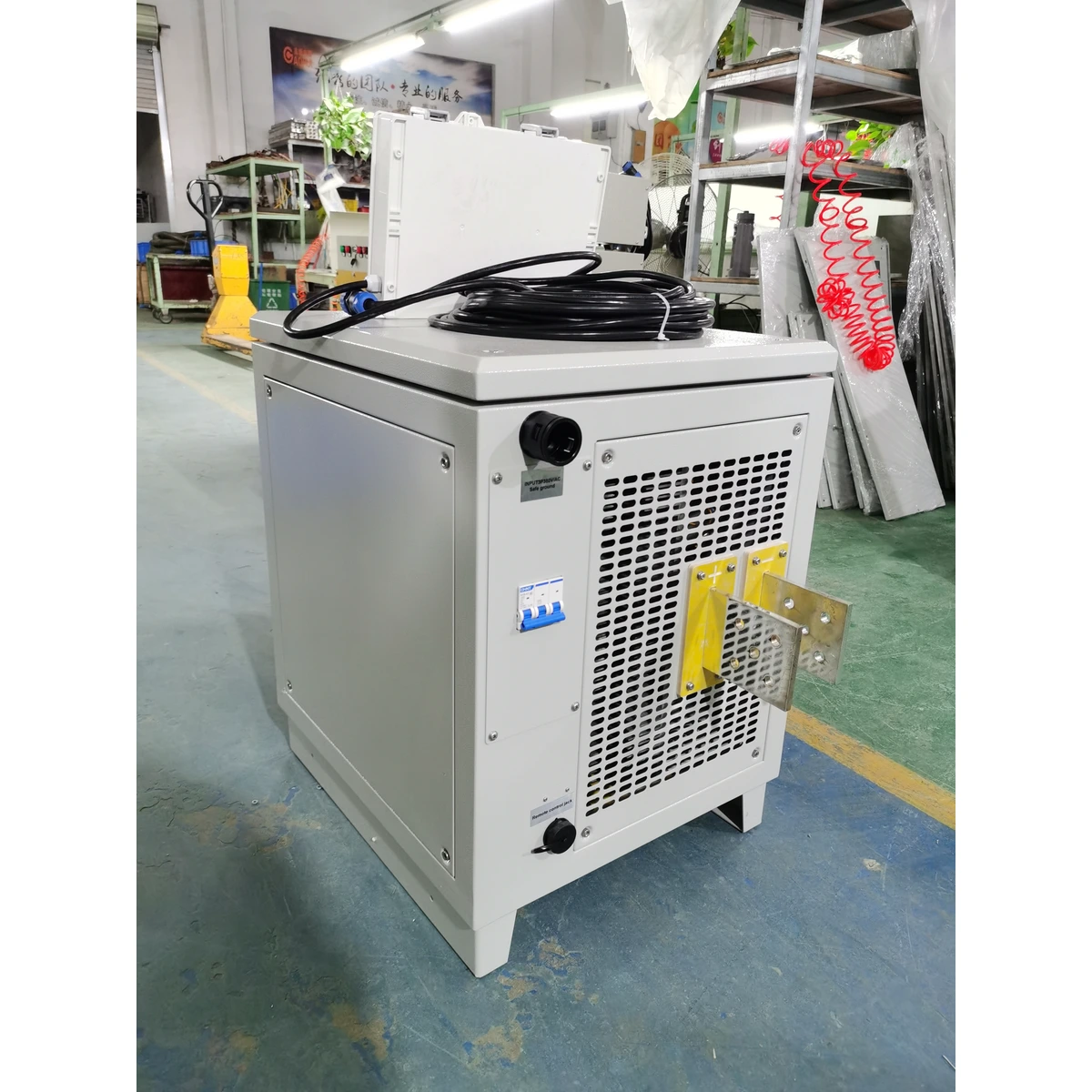

Heavy-duty enclosure with sealed transformer and bus bars, engineered for the corrosive fume environment of an anodizing line. All interior electronics are conformal coated for long service life.
Part 2 Technical Specifications Table
| Parameter | Specification |
| :— | :— |
| AC Input Voltage | 3-Phase, 380VAC ±10% (Custom input voltage available) |
| Output Voltage | 0-60V DC (Continuously Adjustable) |
| Output Current | 0-500A DC (Continuously Adjustable) |
| Rated Power | 30 KW |
| Output Type | DC only (CC/CV Priority) |
| Regulation Mode | Constant Current / Constant Voltage |
| Ripple Noise | < 5% RMS (at rated load) |
| Cooling Method | Forced Air Cooling (Industrial Fan) |
| Display | Digital Volt / Ammeter (High Accuracy) |
| Protection | Phase Loss, Overheat, Overload, Short Circuit |
| Control Interface | RS485 Modbus RTU, 0-10V Analog (Optional Ethernet) |
Part 3 Advanced Built-in Protection Systems
This hard anodizing rectifier is safeguarded against the common failures that destroy cheaper power supplies. A triple-stage overcurrent protection prevents catastrophic damage if a rack shorts or a part falls into the tank. Built-in thermal sensors trigger an alarm before internal temperature exceeds safe limits, protecting the IGBT modules during high-duty-cycle runs. Phase-loss detection shuts down the unit immediately if a mains fuse blows, preventing single-phasing damage to the transformer. The dry-contact alarm output can be wired into your plant's PLC for remote shutdown integration.
Part 4 Target Industrial Applications
This heavy-duty DC power supply price point is optimized for facilities requiring a certified IGBT rectifier manufacturer for precision surface finishing. The primary application is mil-spec hard anodizing (Type II and Type III) on 7075 and 6061 aluminum alloys. It is ideal for achieving the specified 50-100 micron thick, wear-resistant oxide layer on hydraulic pistons, firearm components, and aerospace landing gear parts. The stable DC output also performs exceptionally for conventional sulfuric and chromic acid anodizing, as well as for coloring and sealing stages.
Part 5 Customization and Tailored Engineering Services
A generic AC/DC power supply is insufficient for specialized finishing lines. Our factory provides a custom current voltage rectifier built specifically for your tank configuration and process profile. Standard custom options include: Process Timer (cycle end notification), Multi-Stage Profile Control (programming ramps and holds for thick coating steps), Ampere-Minute Integrator (precise coating thickness control based on total charge), Automatic Reverse Polarity (for de-plating or etch sequences), and Soft-Start circuitry (to avoid HV spikes on thin aluminum parts). All units offer external control interfaces: RS485 Modbus RTU, Ethernet/IP, and standard 4-20mA analog inputs for seamless PLC integration. For advanced pulse capabilities, we offer pulse functions adjustable from 1-3000 Hz, enabling denser, harder coatings with improved grain structure. We are a true factory (1V-1000V, 1A-100,000A capacity) that builds to your exact amperage range and rack configuration, not just a re-seller of boxed units.
