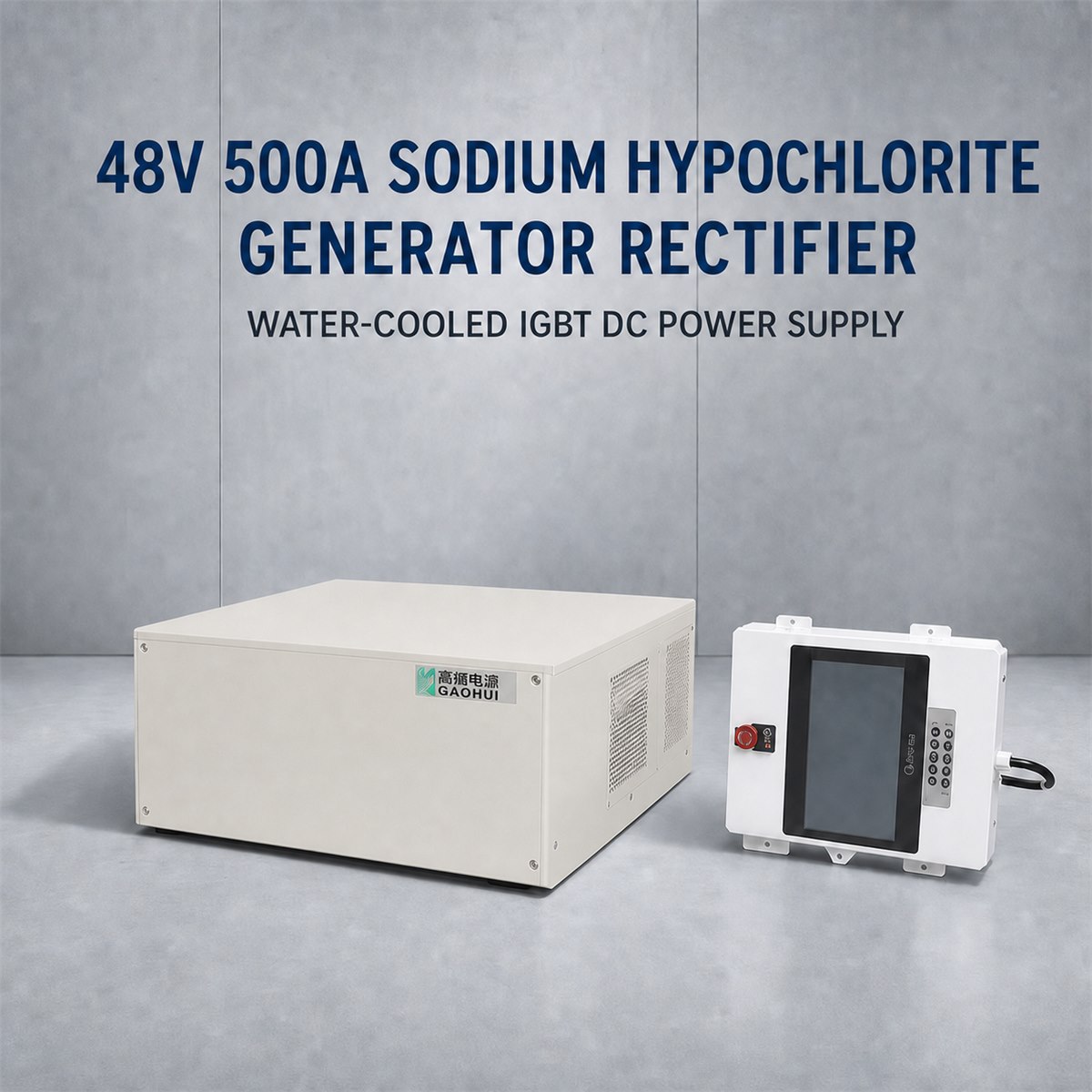

The 48V 500A Sodium Hypochlorite Generator Rectifier provides 24 kW of adjustable DC power for electrolytic chlorine-generation systems using suitable brine.
The 48V 500A Sodium Hypochlorite Generator Rectifier powers a compatible brine electrolytic cell to produce hypochlorite solution, with current stability helping operators manage production rate and active-chlorine consistency.
Driving the brine electrolyzer
Direct current passes through the electrolytic cell to generate active chlorine species that form sodium hypochlorite in solution. Stable output helps the generator hold its selected production point. Concentration and efficiency also depend on salt quality, brine strength, water temperature, electrode condition, flow and gas management.
Rated configuration
| DC output | 48V, 500A |
|---|---|
| Rated power | 24 kW |
| Control | Constant current and constant voltage |
| Cooling | Air or water cooling |
| Options | Timer, polarity management, PLC and RS485 |
| Custom range | 1–1000V and 1–100,000A |
Match the cell bank
Provide the number of cells, series or parallel arrangement, loaded voltage, target current and operating hours. Brine conductivity and electrode area help confirm the useful adjustment range.
Generator integration
Remote output commands, current feedback, flow permissives, temperature alarms and emergency shutdown can coordinate the supply with pumps, tanks and ventilation equipment.
View sodium hypochlorite rectifiers, browse electrolysis power supplies, or send your electrolyzer-cell data.
