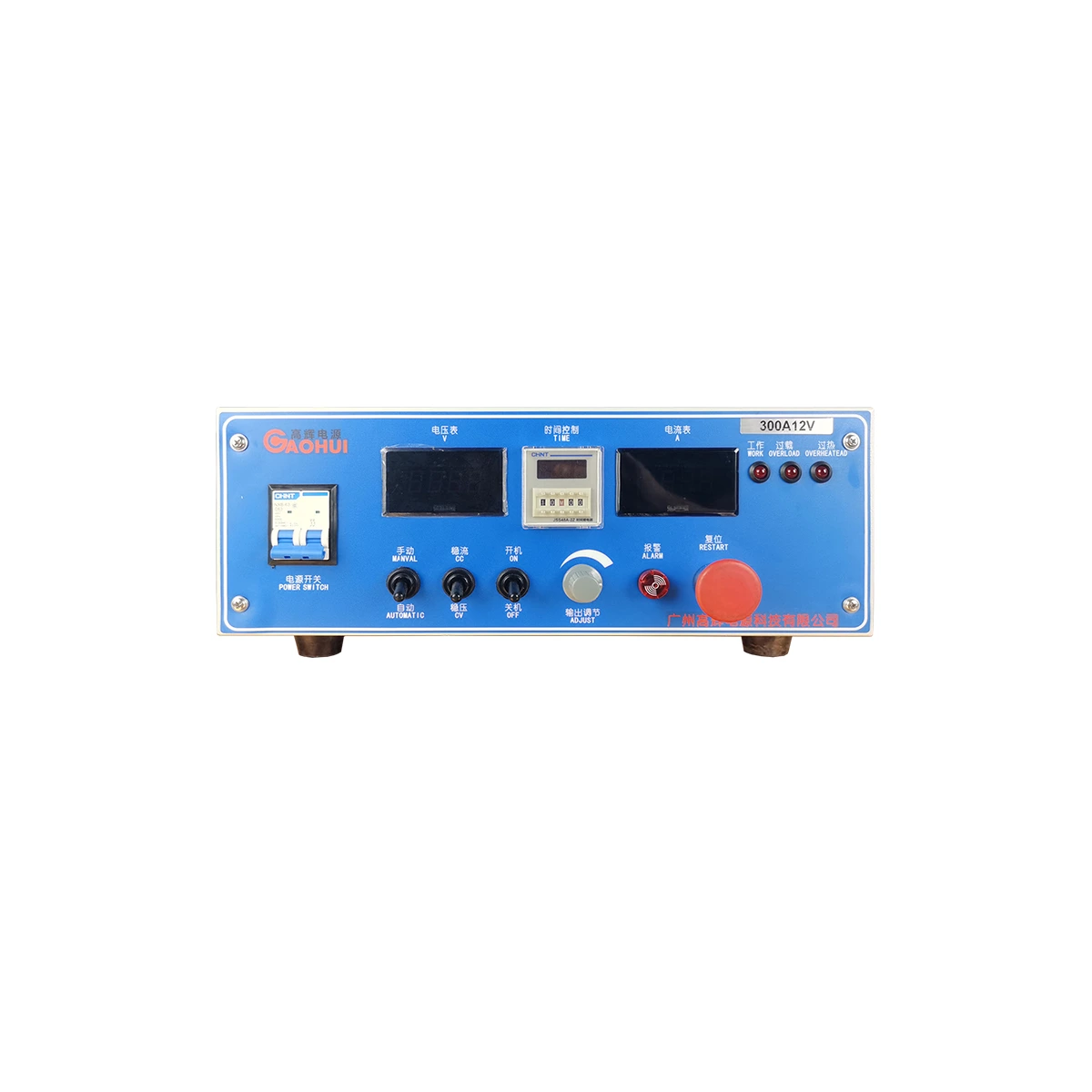

Precious Metal Plating Power Source 12V 300A GAOHUI IGBT Rectifier

Executive Summary
This GAOHUI 12V 300A unit is an industrial high-frequency switching rectifier engineered for mission-critical precious metal electroplating. It delivers exceptionally stable, ripple-free DC output, maximizing deposition quality for high-value substrates. Factory-direct pricing and rigorous construction ensure this rectifier reduces your total cost of ownership compared to traditional thyristor-based units. If you require cost-sensitive procurement for a heavy-duty DC power supply price assessment, this module provides the optimal balance of advanced control and long-term operational reliability.
Part 1 Key Features & Engineering Highlights
1. Ultra-Low Output Ripple: Achieves less than 1% ripple factor, critical for mirror-finish gold plating and dense pore-free silver deposits.
2. GaN-Enhanced IGBT Switching: High-frequency (up to 30kHz) inverter topology shrinks transformer size while boosting energy conversion efficiency to over 89%.
3. Full Digital Control Loop: PID-based regulation locks voltage or current output within 0.5% accuracy across full load range, compensating for fluctuations in tank chemistry and temperature.
4. Durable Industrial Enclosure: Fully sealed, forced-air-cooled chassis with IP54 ingress protection rating, built for harsh plating shop environments and corrosive chemical mist.
Part 2 Technical Specifications Table

Part 3 Advanced Built-in Protection Systems
– Intelligent Overload Cutoff: Automatic shutdown upon sustained current limit exceedance, preventing thermal runaway and cathode burning.
– Short Circuit Trip: Microsecond-response using dedicated Hall-effect sensors isolating output before arc damage occurs.
– Phase Loss Guard: Monitors all three input phases, disabling rectifier if one phase fails, preventing single-phase operation damage.
– Over-Temperature Derating: Thermal sensors inside IGBT modules proportionally reduce current output to maintain safe junction temperatures under high ambient service conditions.
Part 4 Target Industrial Applications
– Precious Metal Refining: Reverse electroplating systems for stripping gold, silver, platinum from scrap substrates where constant current control prevents substrate dissolution.
– Selective Brush Plating: Perfect for portable or probe-plating of high-wear areas on connectors, circuit board edge fingers, and industrial tools.
– Jewelry & Watchmaking: Fine rhodium plating and palladium-nickel alloy deposition for luxury accessories requiring perfectly uniform layers.
– Medical Device Manufacturing: Deposition of platinum-iridium coatings on surgical implants and electrodes, where process reliability is patient-critical.
Part 5 Customization and Tailored Engineering Services
Our factory provides comprehensive bespoke engineering for unique process requirements. Client may customize output parameters across 1V-1000V and 1A-100,000A, with input configurations from single-phase AC 220V to three-phase AC 690V. All output is pure DC. Available enhancement modules include:
Process Timer for preset plating cycles, Multi-Stage Profile Control allowing sequential voltage/current step changes, Ampere-Minute Integrator providing closed-loop total charge delivery management, and Automatic Reverse Polarity switching for pulse-reverse plating cycles that improve deposit uniformity. Interface options include RS485 Modbus RTU, Ethernet TCP/IP, and isolated 4-20mA analog control. Rectifier also supports user-programmable Pulse Frequency output adjustable from 1Hz to 3000Hz for high-frequency pulse plating applications. As a leading industrial high frequency rectifier factory, we assure full compliance with your exact tank geometry and bath chemistry. Matching of heavy-duty DC power supply price to engineered features is standard procedure. Consultation with this IGBT rectifier manufacturer for custom current voltage rectifier requirements is welcomed.
