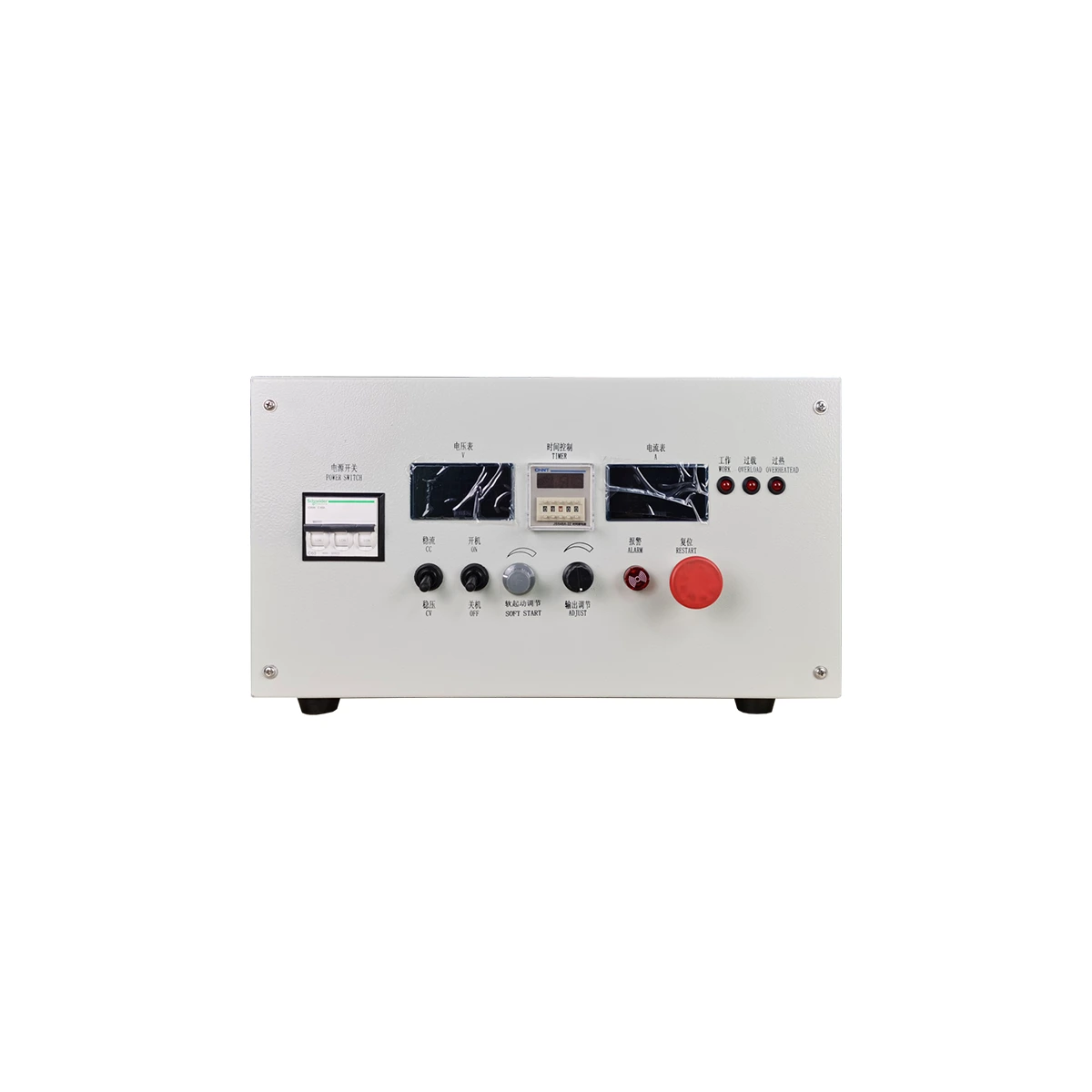

Plasma Electropolishing – 300V 50A Heavy-Duty High Frequency Switching Rectifier

The evolving demands of plasma-based surface finishing—specifically plasma eco-polishing, metallic gloss shining, and environmentally friendly deburring—require a power supply that delivers both precision and brute force. This 300V 50A system is engineered for electrolytic anodic dissolution in plasma electrolytes, providing the stable, ripple-free DC energy necessary to achieve mirror-like finishes on stainless steel, titanium, and superalloys without chemical etchants. Designed and manufactured by an industrial high frequency rectifier factory, this unit leverages IGBT-switching topology to reduce energy waste and maintain constant voltage under dynamic load conditions. Whether integrated into a high-throughput production line or a research-oriented pilot system, this power supply offers the industrial-grade reliability needed for consistent metal removal rates and surface quality.
PART 1: KEY FEATURES & ENGINEERING HIGHLIGHTS
High-Frequency IGBT Inverter Topology: Utilizes soft-switching technology operating above 20 kHz, yielding a DC output with less than 0.5% ripple. This minimizes arcing and pitting on the workpiece during the plasma electro-polishing step.
Wide Operating Range & High Overload Capacity: Rated for continuous 50A and 300V output, with a 110% load capacity for 60 seconds. This ensures uninterrupted processing during startup surges and polishing of complex geometries.
Advanced Digital PID Control Loop: A 32-bit DSP processor handles real-time feedback from the output bus, maintaining voltage regulation better than ±0.1% across the entire load range. This is critical for achieving uniform metallic gloss shining across batch runs.
Energy Efficient Design: Power factor correction to ≥ 0.92 and conversion efficiency exceeding 90% at full load. Compared to older SCR-based rectifiers, this reduces operational cooling requirements and the total heavy-duty DC power supply price over its lifecycle.
PART 2: TECHNICAL SPECIFICATIONS TABLE

PART 3: ADVANCED BUILT-IN PROTECTION SYSTEMS
This unit is safeguarded against common failure modes that disrupt critical surface treatment processes. Internal protection logic monitors for output overvoltage, overcurrent, short circuit, and overtemperature conditions via isolated sensors. An active input phase-loss circuit prevents single-phasing damage, while a dedicated soft-start relay limits inrush current. The housing is rated IP20 for general industrial environments. If you need a specific certification or a tailored protection suite, as a certified IGBT rectifier manufacturer, we can integrate external arc suppression or customized emergency stop circuits.
PART 4: TARGET INDUSTRIAL APPLICATIONS
Plasma Electropolishing & Plasma Eco-Polishing: Delivers the precise voltage level required to initiate and maintain a stable plasma sheath around the workpiece in non-toxic electrolyte solutions. This replaces hazardous acid mixtures with a water-based, environmentally friendly deburring process.
Metallic Gloss Shining for Medical & Aerospace Components: Provides ripple-free current needed to uniformly level micro-peaks on 316L stainless steel surgical instruments or titanium orthopedic implants without creating a haziness or orange peel effect.
Automated Production Lines: Equipped with standard isolation relays and analog interfaces (0-10V, 4-20mA) for direct integration with PLCs. The standard remote on/off and fault output signals allow this rectifier to act as a node in a complete polishing cell.
PART 5: CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
We serve as a direct custom current voltage rectifier partner for process engineers who need more than a standard catalog item. Our factory offers fully customizable configurations across an expansive electrical range of 1V to 1000V and 1A to 100,000A, with AC input and strict DC output only.
Key customization options include:
Digital Process Timer: Automatic shut-off based on elapsed time, ensuring cycle repeatability.
Multi-Stage Profile Control: Output can follow an I-V-t profile, ramping voltage and current to match workpiece surface area changes during polishing.
Ampere-Minute Integrator: Precisely tracks total charge passed, enabling closed-loop removal depth control.
Automatic Reverse Polarity (ARP): Periodically reverses output polarity at user-defined intervals to clear electrolyte byproduct layers from the workpiece surface.
Soft-Start / Soft-Stop Ramp: Gradual application and removal of power to minimize thermal shock to the plasma layer.
Digital Interfaces: Standard RS485 Modbus RTU (optional Ethernet TCP/IP) for data logging and remote set-point control via SCADA. Analog interfaces include 0-10V for voltage and 4-20mA for current.
Built-In Pulse Function: When ordered with the optional pulse generator module, the DC base output can be modulated with square-wave pulses from 1 Hz to 3000 Hz, at adjustable duty cycle (10% to 90%). This allows for enhanced localized current density during difficult deburring of thin-walled parts.
