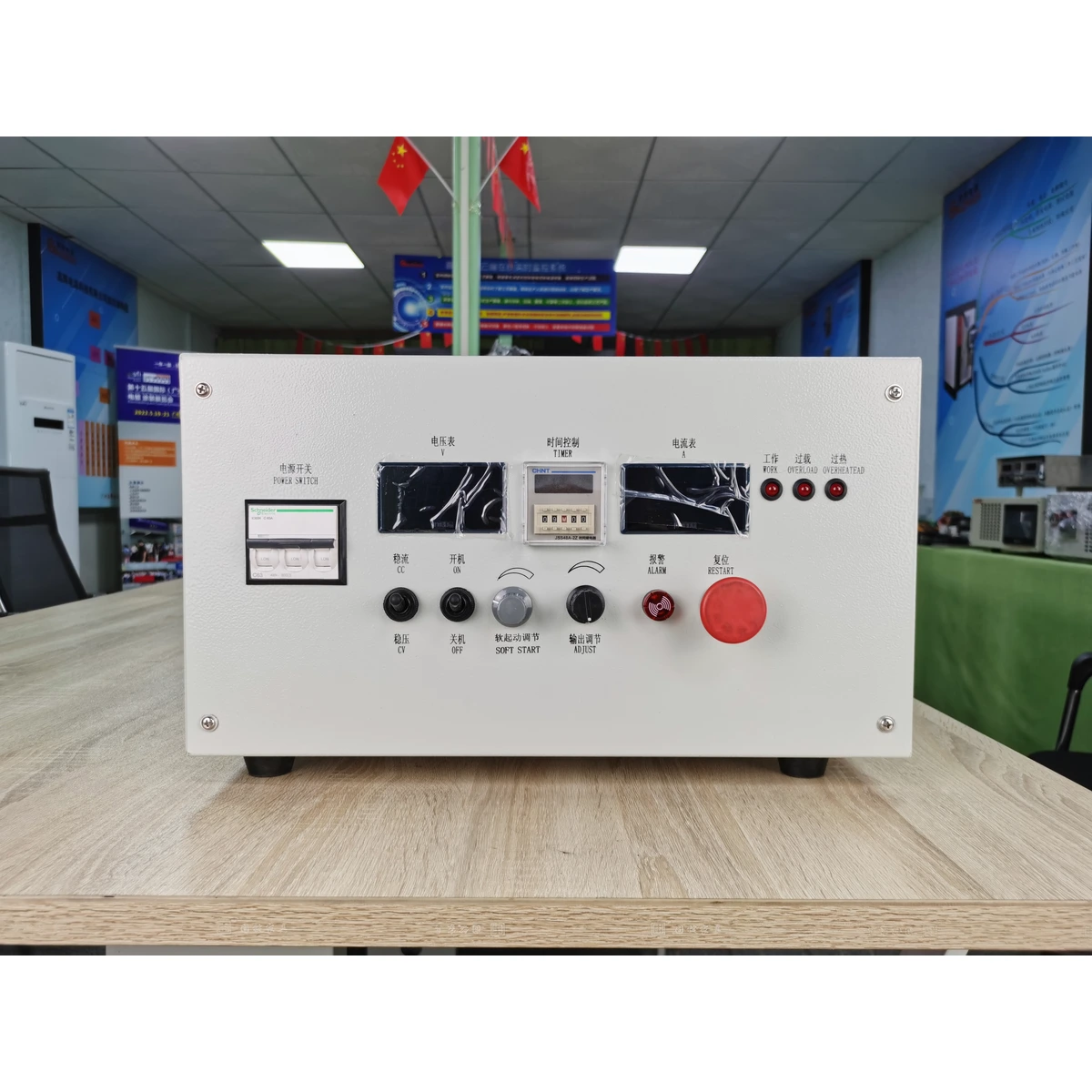

Plasma Electropolishing – 300V 50A Heavy-Duty DC Power Supply for Electrolytic Surface Treatment

Executive Summary
This 300V 50A industrial-grade power supply is engineered as the definitive power source for plasma electropolishing and advanced electrolytic surface treatment processes. As a product from a specialized industrial high frequency rectifier factory, this unit delivers the precise voltage stability and ripple-free DC output required for achieving a mirror-like metallic gloss. Unlike standard rectifiers, this system is optimized for the ion bombardment mechanics of plasma eco-polishing, ensuring material removal uniformity without environmental acid waste. If you are evaluating a heavy-duty DC power supply price against lifecycle performance, this unit redefines the cost-per-part ratio for high-volume finishing lines.
Part 1 Key Features & Engineering Highlights
HIGH FREQUENCY SWITCHING TECHNOLOGY – The core IGBT inverter stage operates above 20kHz, converting three-phase AC input into a clean, pulsed DC waveform. This high-speed switching eliminates the heavy copper windings and core losses of traditional SCR-based units, allowing for a 40% reduction in physical footprint while achieving >92% efficiency. The topology is specifically tuned to support variable power supply configurations demanded by plasma polishing and metal ore refining applications.
PRECISION VOLTAGE AND CURRENT CONTROL – Closed-loop feedback systems regulate output within ±0.5% of setpoint across the full operating range. This precision is critical for plasma electropolishing processes where a voltage variance of even 2V can shift the removal rate from polishing to etching. The digital controller supports both constant voltage (CV) and constant current (CC) modes, with a crossover time of less than 5 milliseconds.
REAL-TIME PROCESS MONITORING – An integral digital display provides simultaneous readout of DC voltage, DC current, and accumulated energy (kWh). For production traceability, the system logs peak current events and waveform deviations. This data is accessible via the front panel or exported through optional RS485/Modbus interface for integration into your MES.
Part 2 Technical Specifications Table
Electrical Input Parameters
AC Input Voltage Three-Phase 380VAC ±10% (also adjustable to 220V, 415V, 480V)
Input Frequency 50Hz / 60Hz Auto-Sensing
Input Power Factor >0.92 (at rated load)
Maximum Input Current 90A (per phase)
DC Output Performance
Output Voltage Range 0V to 300V Continuous (Stepless)
Output Current Range 0A to 50A Continuous
Stabilization Mode CV / CC with Automatic Crossover
Voltage Ripple (RMS) <1% of rated voltage
Load Regulation ±0.5% (from 10% to 100% load)
Physical and Environmental
Cooling Method Forced Air (Built-in High-Temperature TEFC Fan)
Operating Temperature 0°C to +50°C
Relative Humidity <90% (Non-Condensing)
Dimensions (W x D x H) 650mm x 550mm x 950mm
Net Weight Approximately 85kg
Part 3 Advanced Built-in Protection Systems
The control logic contains a multi-tier protection architecture to safeguard both the rectifier and your plasma polishing bath.
INPUT SIDE PROTECTION: Phase-loss monitoring prevents operation on a single phase, while a soft-start contactor circuit limits inrush current to below 150% of nominal. Primary MOV surge arrestors clamp line transients to safe levels.
OUTPUT SIDE PROTECTION: An electronic current limiter operates within 1 millisecond of an arc or short circuit event, preventing damage to workpiece edges and the bath electrode. The system also includes over-voltage crowbar protection and over-temperature shutdown with hysteresis.
ENVIRONMENTAL MONITORING: Internal humidity sensors and exhaust fan speed control ensure the IGBT heatsinks remain within their safe operating area, even in high-humidity plating environments. A dry-contact alarm module provides remote fault notification to your PLC.
Part 4 Target Industrial Applications
PLASMA ECO-POLISHING AND METALLIC GLOSS SHINING: This is the primary application. The 300V 50A DC is specifically optimal for the high-voltage anodic dissolution phase of plasma polishing. It generates a stable, penetrating arc that lifts microscopic peaks without the pitting seen with lower-voltage supplies. Operators achieve Ra finishes below 0.1µm on stainless steel, titanium, and aluminum alloys.
ENVIRONMENTALLY FRIENDLY DEBURRING: By replacing traditional chemical etching with this electrolytic plasma process, manufacturers eliminate acid waste and toxic sludge. The ultra-low ripple DC ensures uniform current distribution across complex workpiece geometries, including internal bores and threaded holes, removing burrs without compromising dimensional accuracy.
LARGE BATCH SURFACE FINISHING: For racks holding multiple smaller parts, the unit’s 50A capacity provides parallel processing capability. The adjustable waveform (Pulse Functions 1-3000Hz) allows engineers to tune the energy pulse shape for either bulk material removal (low frequency) or high-gloss final passes (high frequency).
Part 5 Customization and Tailored Engineering Services
As an experienced IGBT rectifier manufacturer, we recognize that each plasma electrolyte composition and workpiece geometry demands unique power profiles. Our factory provides a custom current voltage rectifier service with the following configurations:
VOLTAGE AND CURRENT RANGE: Fully configurable from 1V to 1000V DC and 1A to 100,000A DC. Your 300V 50A unit can be scaled up or down within the same chassis.
ADVANCED MODULES INTEGRATION:
1. Process Timer Module – Configures automatic voltage ramping and dwell times for multi-stage cycles (e.g., cleaning ramp, polishing plateau, rinse ramp).
2. Multi-Stage Profile Controller – Stores up to 16 distinct process recipes with password protection. Each stage defines voltage, current limit, and time duration.
3. Ampere-Minute Integrator – Tracks total charge delivered to the bath. This feature is critical for bath life management and predicting electrolyte depletion.
4. Automatic Reverse Polarity – Switchable polarity for in-situ cleaning of bath electrodes or for processes requiring alternating anodic/cathodic cycles.
5. Soft-Start Ramp – Programmable voltage ramp rate from 10 seconds to 5 minutes, preventing thermal shock to the workpiece.
COMMUNICATION INTERFACES:
6. RS485 Modbus RTU: Standard for remote monitoring and recipe download from a central control room.
7. Ethernet (TCP/IP): For direct integration into factory networks and cloud-based data logging.
8. Analog Control (4-20mA): Provides 0-100% output control signal compatibility with existing PLC analog output modules.
INPUT / OUTPUT FLEXIBILITY: Input is strictly AC (Three-Phase). Output is strictly DC.
PART 5 INDUSTRY APPLICATION LIST (CORE)
– Plasma Electropolishing (300V 50A)
– Metal Ore Refining (Variable Power Configurations)
– Electrolytic Surface Treatment (Deburring)
– Large Batch Metallic Gloss Finishing (Environmental Clean Processes)
