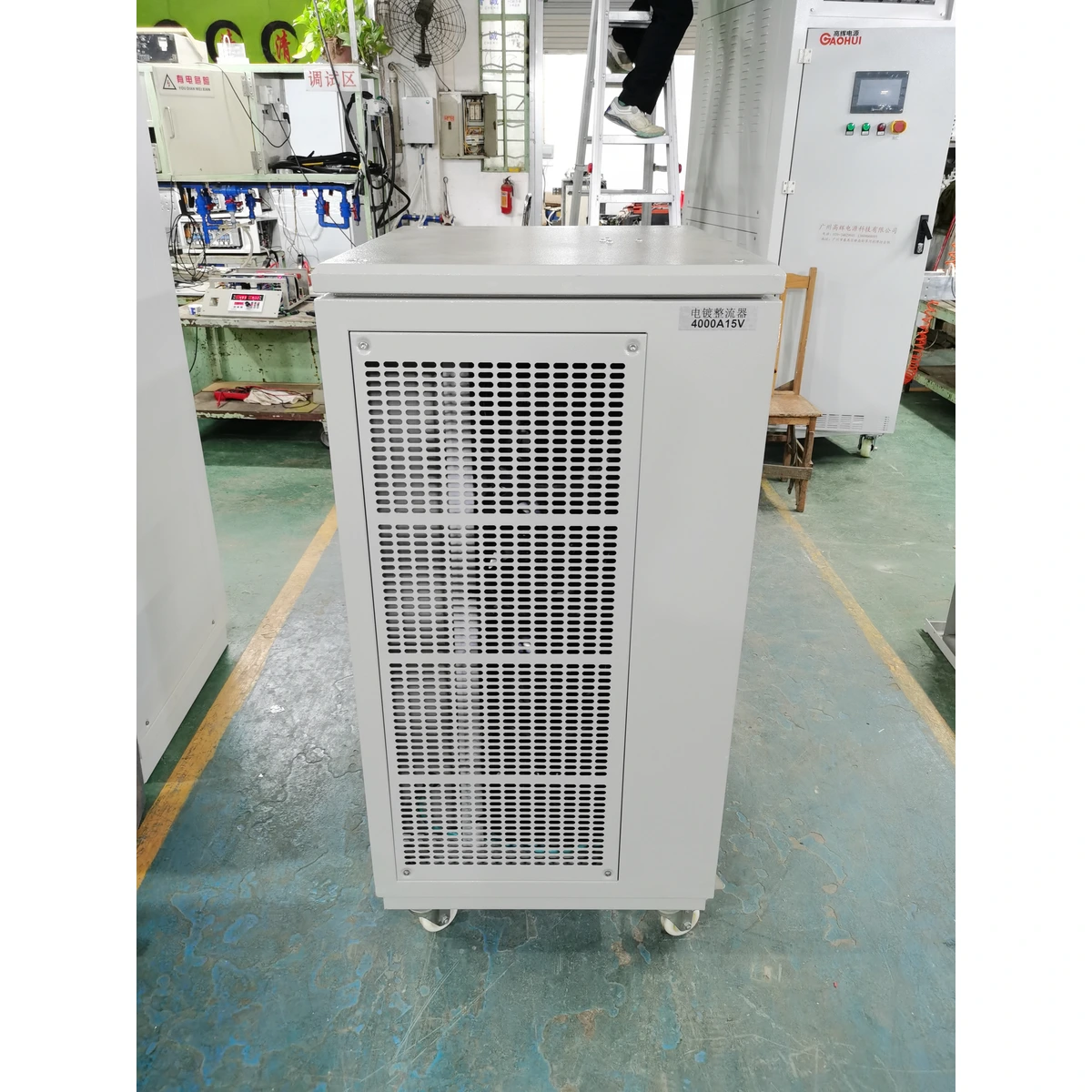

Metal Electrowinning – 12V 4000A High-Performance IGBT Rectifier

EXECUTIVE SUMMARY
This 48kW forced-air cooled rectifier is engineered specifically for metal recovery in hydrometallurgy tanks and electrowinning cells. Designed for continuous duty, it delivers stable DC output with over 90% efficiency to maximize cathode yield and reduce your total cost of operation. As a leading IGBT rectifier manufacturer, we build this unit to outperform traditional SCR systems in both precision and energy savings, making it the final choice for any industrial high frequency rectifier factory specification.
PART 1 KEY FEATURES & ENGINEERING HIGHLIGHTS
Advanced IGBT Switching Topology–Utilizes high-frequency PWM modulation (20kHz) to eliminate output ripple, ensuring smooth metal deposition in electrowinning cells. This reduces dendrite growth and improves current efficiency by up to 5% compared to phase-control alternatives.
Optimized 12V 4000A Output–Delivers 48kW of pure DC power with a ripple factor below 1%. Perfect for copper, nickel, zinc, and cobalt electrowinning, where precise low-voltage high-current control is critical for consistent cathode quality.
Full-Bridge Power Architecture–Dual IGBT modules operating in parallel ensure redundancy and uniform heat distribution. Continuous 24/7 operation at full load is guaranteed without derating, even in ambient temperatures up to 45°C.
Intelligent Forced-Air Cooling–Rear-mounted fans with thermal PID loop control maintain internal temperatures 15°C below junction limits. Front panel LED indicators show real-time thermal status and fan health.
Sealed Control Electronics–All DSP and gate-driver circuits are isolated from the power stage in a sealed IP54 compartment, protecting against conductive dust common in electrorefining environments.
PART 2 TECHNICAL SPECIFICATIONS TABLE

PART 3 ADVANCED BUILT-IN PROTECTION SYSTEMS
Overcurrent Protection–Instantaneous shutdown if output exceeds 110% rated current for >2 seconds. Auto-reset after fault clears.
Overvoltage Protection–Crowbar circuit clamps output at 13.5V to prevent damage to electrowinning cell connections.
Thermal Overload Protection–Three PT100 sensors monitor IGBT baseplate, transformer core, and ambient air. Gradual power reduction at 85°C baseplate; immediate trip at 95°C.
Short Circuit Protection–Fast IGBT desaturation detection interrupts gate drive within 3 microseconds.
Phase Loss & Phase Imbalance Guard–Disconnects input when any phase drops below 20% capacity or imbalance exceeds 15%. Prevents single-phase operation damage.
PART 4 TARGET INDUSTRIAL APPLICATIONS
Primary Copper Electrowinning–Ideal for solvent extraction-electrowinning (SX-EW) plants where stable 12V 4000A output ensures consistent copper cathode grade (LME Grade A specification) without passivation.
Zinc Electrolysis Plants–Designed for high-impurity electrolyte environments typical in zinc hydrometallurgy. Low ripple prevents zinc redissolution at the cathode surface.
Nickel & Cobalt Recovery–Precise current regulation (better than 0.5%) supports mixed-metal electrowinning cells where co-deposition control is required.
Precious Metal Refining–Capable of pulse-mode operation for fine-grain silver and gold deposition in small-scale recovery systems.
Custom Electrowinning Systems–Adaptable for both series and parallel cell arrangements. Consult our engineering team for single busbar configurations up to 60VDC.
PART 5 CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
Our factory offers full custom current voltage rectifier design covering 1V–1000V and 1A–100,000A. Customizations include:
Process Timer–Adjustable ON/OFF cycle for periodic current reversal in copper tankhouse cells.
Multi-Stage Profile Control–Programmable ramp-up, soak, and ramp-down sequences for controlled nucleation in electrowinning cells.
Ampere-Minute Integrator–Coulomb counting module with NIST-traceable output for complete metal recovery accounting.
Automatic Reverse Polarity–Configurable for 1–60 second reverse pulses to improve deposit density in zinc electrowinning.
Soft-Start Function–Ramp time adjustable from 1 to 120 seconds to protect rectifier and process busbars during startup.
I/O Interfaces–Standard RS485 Modbus RTU, optional Ethernet/IP, and 4-20mA analog control for full PLC integration. Pulse functions adjustable from 1 to 3000 Hz for specialized electrorefining applications.
Contact us for a heavy-duty DC power supply price quote tailored to your plant voltage and cell count requirements. We ship globally with full commissioning support and a 3-year warranty on all IGBT rectifier manufacturer equipment.
