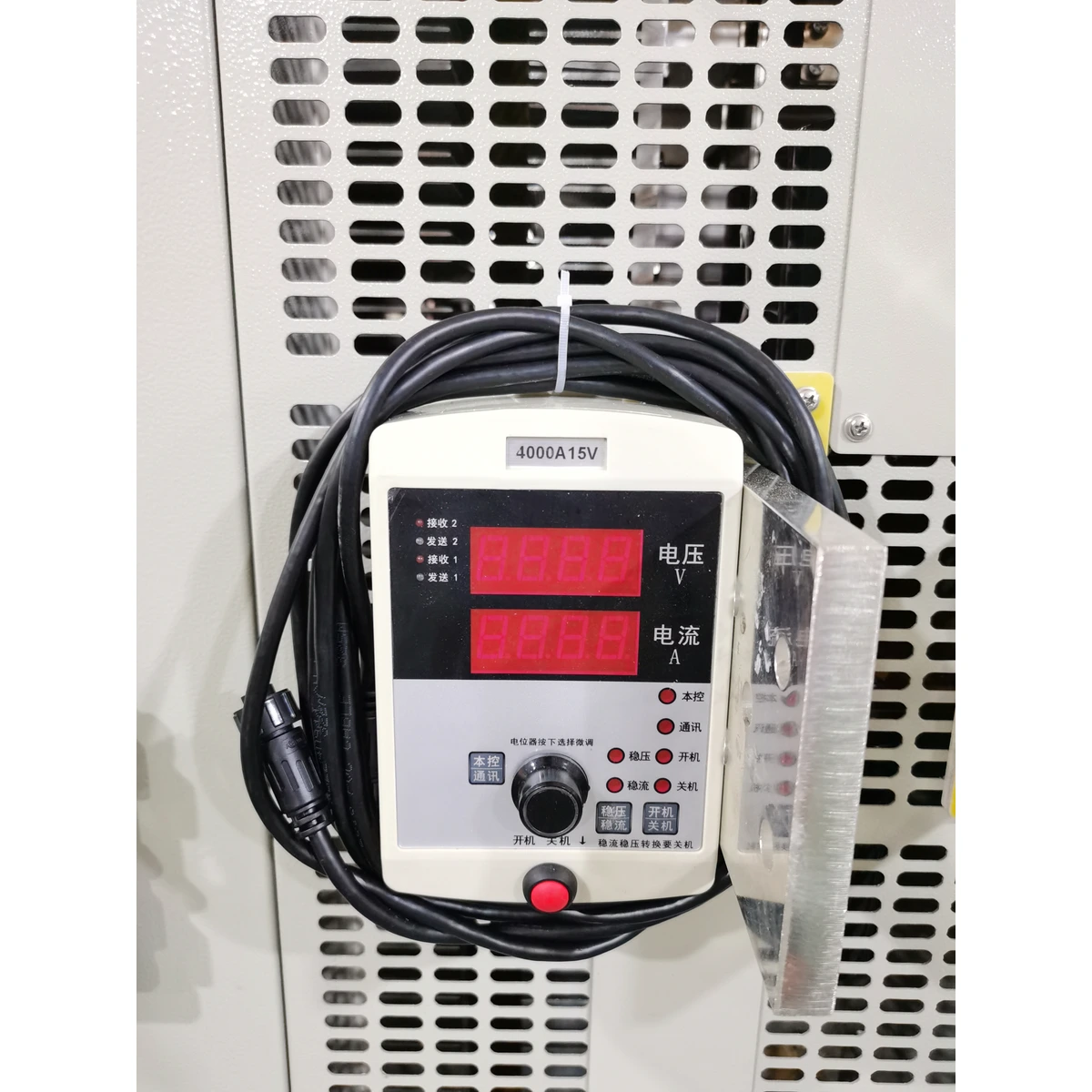

Industrial High Frequency Rectifier 12V 6000A Nickel Lead Recovery DC Power Supply for Electrowinning Electrolysis

Executive Summary
This 12V 6000A unit is a mission-critical DC power source engineered exclusively for the brutal demands of nickel and lead electrowinning recovery plants. As a specialized industrial high frequency rectifier factory design, it transforms raw AC input into precisely regulated, ripple-free DC current essential for high-purity metal deposition. Unlike generic converters, this system maintains constant current regulation at ±0.5% accuracy despite fluctuating line voltages or changing electrolyte resistivity in your bath. It eliminates the costly inefficiencies of traditional silicon-controlled rectifiers (SCRs) by leveraging advanced IGBT switching technology at 20kHz, delivering a peak conversion efficiency above 92%. For procurement managers evaluating heavy-duty DC power supply price, this unit offers the lowest total cost of ownership through reduced energy waste, minimal maintenance, and a robust enclosure rated for corrosive industrial environments.
Part 1 Key Features Engineering Highlights
Precision Constant Current Regulation The core controller locks output current to your setpoint within 0.5% tolerance. This is critical for consistent metal recovery rates in nickel purification plants where even minor current drift causes dendritic growth or poor adhesion. The feedback loop updates at microsecond speeds using Hall-effect sensors, instantly compensating for load changes from anode passivation or bath temperature shifts.
High Efficiency IGBT Switching Topology The bridge uses 600A 1200V IGBT modules driven by phase-shifted PWM control. Switching at 18-22kHz reduces transformer and filter size by 60% versus line-frequency designs while achieving 92% peak efficiency. This directly lowers your per-kilogram energy cost for recovered metal.
Full Digital Touchscreen Controller A 7-inch industrial HMI displays real-time voltage, current, ampere-hours accumulated, and fault logs. Operators can set ramp-up profiles, constant current limits, and overvoltage thresholds without opening the cabinet. The controller stores up to 50 recipe presets for different recovery batches.
Heavy Duty Copper Bus Bar Output Secondary connections use solid oxygen-free copper bus bars rated for 6000A continuous. Each bus is nickel-plated to resist sulfuric acid mist common in lead electrowinning. The output terminals accept M12 studs with compression lugs for secure, low-resistance connections.
Part 2 Technical Specifications Table
| Parameter | Specification |
| — | — |
| AC Input Voltage | 380V ±10%, 3-Phase, 50/60Hz |
| DC Output Voltage | 0-12V continuously adjustable |
| DC Output Current | 0-6000A continuously adjustable |
| Regulation Mode | Constant Current (CC) with current limit |
| Voltage Ripple | < 1% RMS at full load |
| Efficiency | ≥ 92% at rated load (PF ≥ 0.95) |
| Control Interface | RS485 Modbus RTU, Ethernet TCP/IP, 4-20mA analog input |
| Operating Temperature | 0°C to +45°C ambient |
| Cooling Method | Forced air with redundant axial fans, dust filter |
| Protection Class | IP42 (indoor), optional IP54 |
| Dimensions (WxDxH) | 1200mm x 900mm x 1800mm |
| Weight | Approximately 480kg |
Part 3 Advanced Built-in Protection Systems
This rectifier integrates six independent safety layers to protect both the equipment and your electrolyte process. The primary overcurrent protection triggers instantaneous shutdown if output current exceeds 110% of set maximum. Overvoltage clamping prevents bus damage from load disconnection arcs. Phase loss detection on the input side locks the unit off if any AC phase drops. Internal thermistors monitor IGBT heatsink temperature and derate output if cooling airflow is obstructed. Short circuit fault response cuts power within 5 milliseconds. Finally, an earth leakage monitor continuously checks for ground faults in the electrolyte bath, critical for operator safety in wet environments. All fault events are logged with timestamps in the controller memory for troubleshooting.
Part 4 Target Industrial Applications
This DC power source is purpose-built for metallic recovery processes requiring high current density at low voltage. Primary applications include nickel electrowinning from sulfate or chloride electrolytes where precise amperage determines crystal morphology and purity grade. Lead electrorefining operations benefit from the ripple-free DC which prevents harmful anode slime contamination. Heavy metal wastewater recycling systems use this to plate out copper, zinc, and cadmium from industrial effluents selectively by adjusting amperage. It also serves as the rectifier cell for lab-scale and small production electrowinning of cobalt and manganese.
Part 5 Customization and Tailored Engineering Services
As a responsive IGBT rectifier manufacturer, we offer full customization across the entire power envelope from 1V to 1000V DC and 1A to 100,000A DC, with input voltage adaptable to your local grid. Beyond the base 12V 6000A unit, we integrate modular control options to match your specific process automation. Add a Process Timer for automatic batch termination when ampere-hours reach your target. Implement Multi-Stage Profile Control to change current density at different phases of the recovery cycle for optimal metal quality. An Ampere-Minute Integrator provides cumulative charge data for mass balance calculations. Automatic Reverse Polarity switching cleans cathodes periodically without manual intervention. Soft-Start ramps current over configurable seconds to prevent thermal shock to the electrodes. For digital connectivity, the standard unit includes RS485 Modbus RTU, but we also install Ethernet IP, Profinet, or 4-20mA interface cards. Advanced users can request Pulse Functions with adjustable frequency from 1Hz to 3000Hz and duty cycle control, which improves mass transport in diffusion-limited reactions. This is why leading companies choose us as their custom current voltage rectifier partner for mission-critical applications. Contact our engineering team with your specific bath chemistry and voltage requirements for a tailored quotation.
