GAOHUI Industrial High Frequency Rectifier Factory (15V 3000A) for Gold and Silver Refining

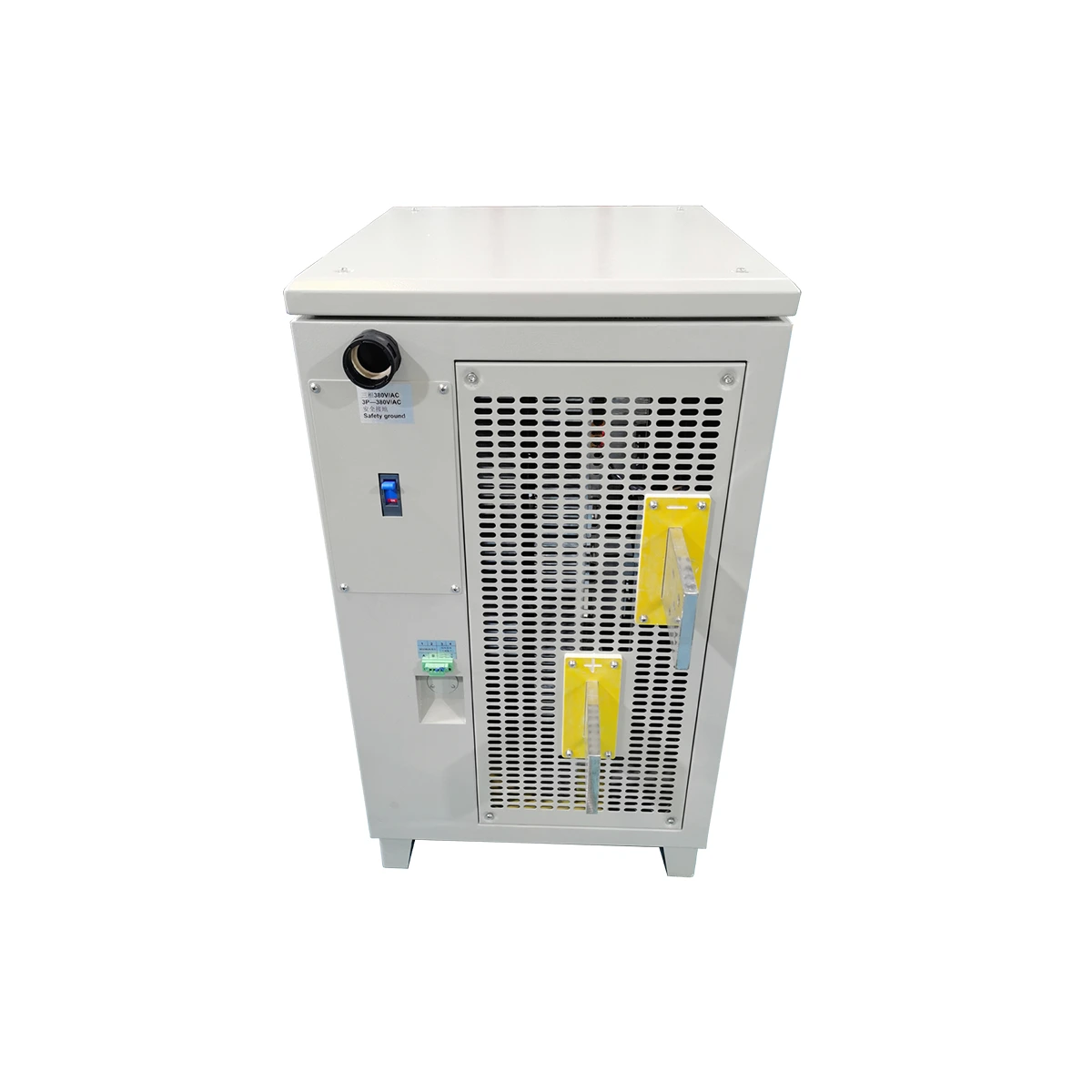

Every electrolytic cell in precious metal refining demands absolute current precision. This GAOHUI 15V 3000A unit functions as a heavy-duty DC power supply, engineered for the rigorous demands of gold parting and silver scrap electrolysis. As a specialized IGBT rectifier manufacturer, we deliver stable, ripple-free DC output critical for dissolving base metals while leaving target bullion intact.
PART 1 KEY FEATURES & ENGINEERING HIGHLIGHTS
industrial high frequency rectifier factory rated for continuous full load
IGBT inverter soft-switching technology for superior efficiency above 90%
Low output ripple below 1% for uniform metal deposition and separation
Air-cooled design eliminates water leakage risks in precious metal environments
Digital control with real-time voltage and current regulation within 0.5%
Direct replacement for outdated thyristor SCR rectifiers with smaller footprint
PART 2 TECHNICAL SPECIFICATIONS

PART 3 ADVANCED BUILT-IN PROTECTION SYSTEMS
Refining electrolytes are corrosive and conductive. This heavy-duty DC power supply actively guards against reverse polarity from cell short circuits, over-temperature from continuous full-load operation, over-current during initial electrolyte loading, input phase loss, and output overload. Automatic shutdown triggers within 50 milliseconds for any fault condition preserving both rectifier and cathode quality.
PART 4 TARGET INDUSTRIAL APPLICATIONS
Precious metal bullion refining where anodes contain gold and silver alloys requiring selective dissolution into electrolyte. Silver scrap electrolysis in nitrate-based solutions demanding precise current density to prevent passivation at the anode. Gold parting cells using chlorine or aqua regia where maintaining cell voltage between 3-4 volts prevents unwanted base metal co-deposition. Also suitable for copper refining cells at lab scale or pilot production.
PART 5 CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
Every refining operation has unique cell geometry and electrolyte chemistry. As a custom current voltage rectifier manufacturer, we adjust this 15V 3000A platform from 1V to 1000V and 1A to 100000A upon request. Input remains AC with pure DC output only. Add process timer for automatic shutdown at predetermined ampere-hours. Multi-stage profile control enables ramping current gradually for fragile anode materials. Ampere-minute integrator tracks total charge passed through cell with 1% accuracy. Automatic reverse polarity protects cathodes during cleaning cycles. Soft-start function prevents current surge on initial immersion. Remote interfaces include RS485 Modbus RTU, Ethernet web monitoring, and 4-20mA analog control for PLC integration. Pulse functions adjustable from 1 Hz to 3000 Hz allow dendrite control for during silver and gold recovery. This is the heavy-duty DC power supply price you evaluate against uptime reliability and recovery yield improvements. Contact the IGBT rectifier manufacturer directly for application-specific engineering consultation.
