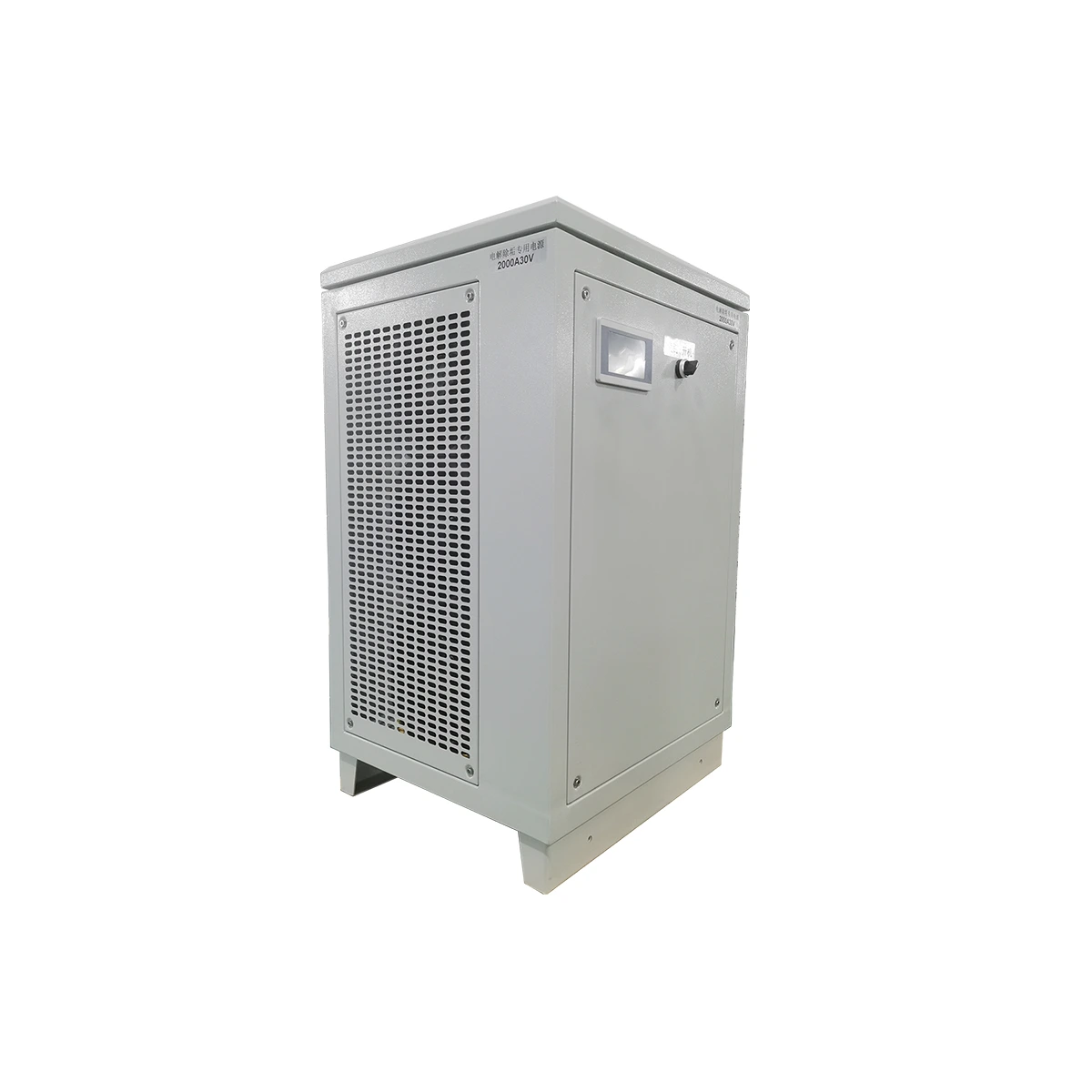

GAOHUI 12V 5000A Industrial High Frequency Rectifier for Copper Electrolysis and Electrowinning

Part 1: Key Features & Engineering Highlights
– High-efficiency IGBT rectifier manufacturer design delivering >90% conversion efficiency at full load, reducing operational costs for heavy-duty DC power supply price sensitive buyers in copper electrowinning and solvent extraction sx-ew processes.
– Forced air cooling system ensures reliable 24/7 operation in harsh industrial environments, ideal for 12V 5000A zinc electrolysis rectifier applications, with zero liquid coolant maintenance.
– Ultra-low ripple output (<5% at rated current) critical for consistent copper deposition quality, surpassing traditional thyristor-based solutions from any industrial high frequency rectifier factory.
– Compact modular footprint saves valuable floor space in electrolytic tank houses, supporting both new installations and retrofits of existing 5000A 12V rectifier power supply wholesale lines.
– Microsecond-level fault response time protects downstream equipment and product yield, a key differentiator when comparing custom current voltage rectifier options.

Part 2: Technical Specifications Table

Part 3: Advanced Built-in Protection Systems
– Overvoltage protection (OVP) with automatic shutdown and alarm relay output.
– Overcurrent protection (OCP) with adjustable trip point for safe copper electrolysis rectifier operation.
– Over-temperature protection (OTP) with thermal sensors on IGBT modules and heat sink.
– Short circuit protection (SCP) with <1ms response time to prevent catastrophic failure.
– Phase loss and input voltage imbalance monitoring for three-phase AC supply.
– Emergency stop (E-Stop) input for rapid disconnection in hazardous conditions.

Part 4: Target Industrial Applications
– Copper electrowinning (EW) from pregnant leach solutions in sx-ew plants.
– Copper scrap recycling and electrorefining for high-purity cathode production.
– Zinc electrowinning from sulfate solutions in metallurgical operations.
– Precious metal recovery (gold, silver) from electrolytic processes.
– Hard anodizing and electroplating of aluminum components requiring precise DC output.
– Electrochemical machining (ECM) and electroforming applications needing stable low-voltage high-current supply.

Part 5: Customization and Tailored Engineering Services
GAOHUI factory custom capability spans 1V-1000V, 1A-100,000A, with AC input and DC output only. For this 12V 5000A copper electrolysis rectifier, we offer optional functional modules:
– Digital Process Timer for automated batch cycles.
– Multi-Stage Programmable Profile Control for ramping current during deposition.
– Ampere-Minute Integrator for precise charge monitoring.
– Automatic Reverse Polarity for periodic cleaning of anodes.
– Soft-Start Ramp-Up to prevent thermal shock to electrodes.
– Local/Remote Control via Push-Button or HMI Touch Screen.
– Interfaces include RS485 Modbus RTU, Ethernet, 4-20mA, and Pulse Functions with 1-100% duty cycle and 1-3000Hz frequency adjustable for specialized electroplating.
