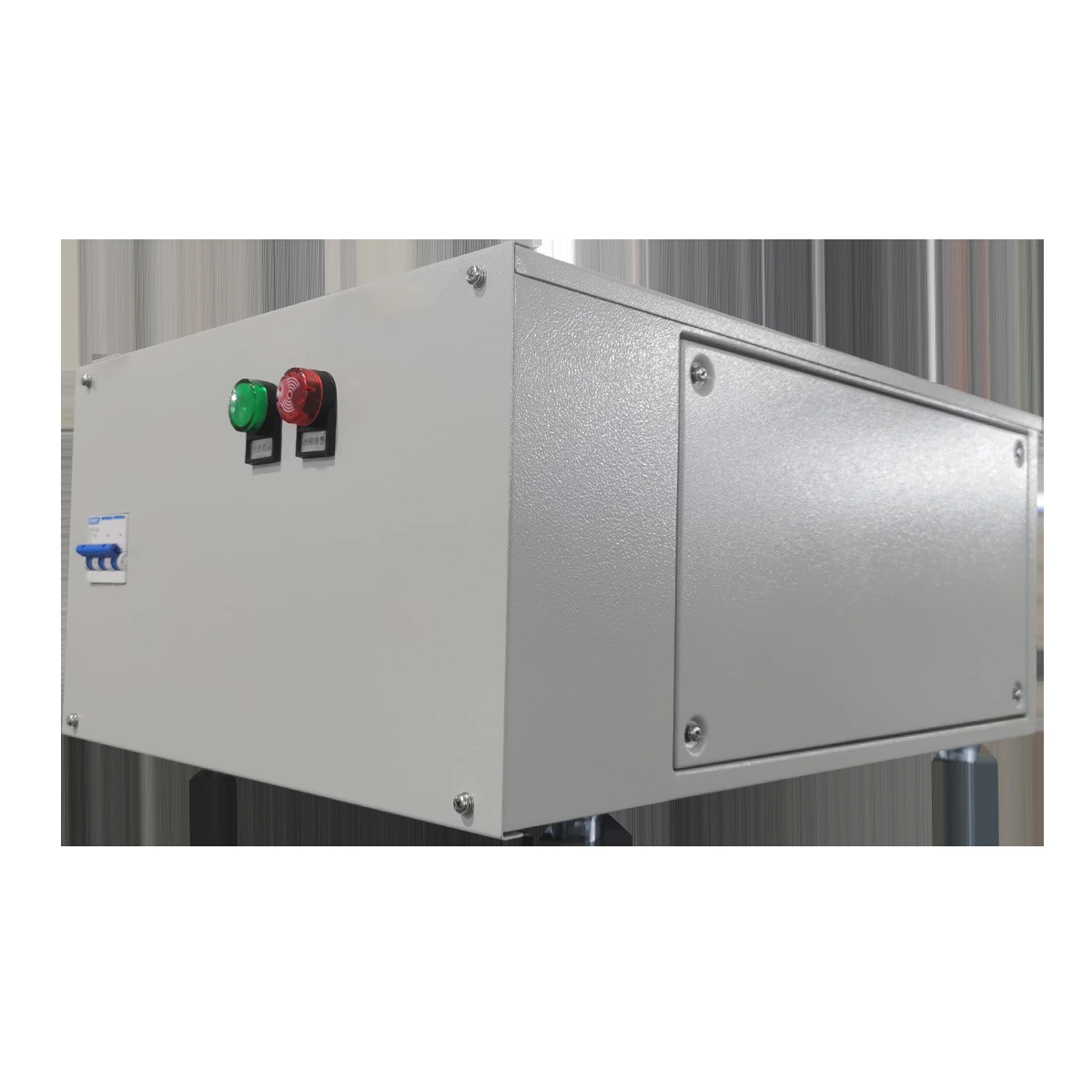

12V 2500A Continuous Plating Rectifier

The 12V 2500A Continuous Plating Rectifier is a unidirectional DC power supply rated at 12 V and 2500 A for continuous electroplating projects. The published rating defines the available DC envelope; it does not replace process calculations or establish the normal operating setpoint.

Published Rating and Electrical Boundary

Rated DC output	12 V DC, 2500 A DC
Application	continuous electroplating
Regulation	Constant-current or constant-voltage main mode, selected for the confirmed process
AC input	AC 380 V or 415 V. Final phase, frequency and site conditions must be confirmed.

This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.

Application and Selection

This page applies to strip, wire, terminal or reel-to-reel deposition through one or more energized zones Current depends on plated area per unit time, line speed, active length, current density and the number of energized zones. Verify the voltage of each zone from chemistry, spacing, contacts and busbar layout; separate zones may need independent outputs.

Continuous plating does not automatically require pulse current or multiple channels; the line design must specify them.

Working-point focus: the nameplate rating is an available ceiling, not a recommended operating recipe. The normal working current and voltage must come from the validated process window and actual load.

Information Required for Selection

• coating metal and bath chemistry
• strip or wire dimensions
• plated sides and selective area
• line speed range
• active length
• number of tanks and zones
• current density and loaded voltage
• line-control interface requirements

Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.

Configuration Boundary

The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.

Frequently Asked Questions

Is the rated current the normal process current?

No. The rating is the product ceiling; the working setpoint must follow the validated process window and actual load.

Can the process name determine the final voltage?

No. Loaded voltage depends on chemistry or load behavior, spacing, contacts, conductors and the production arrangement.

Are pulse, reversal and communications included?

Only when they are written into the confirmed configuration. They are not assumed from the product title.

Review related options in Electroplating Rectifiers, or contact Gao Hui with the selection data above.
