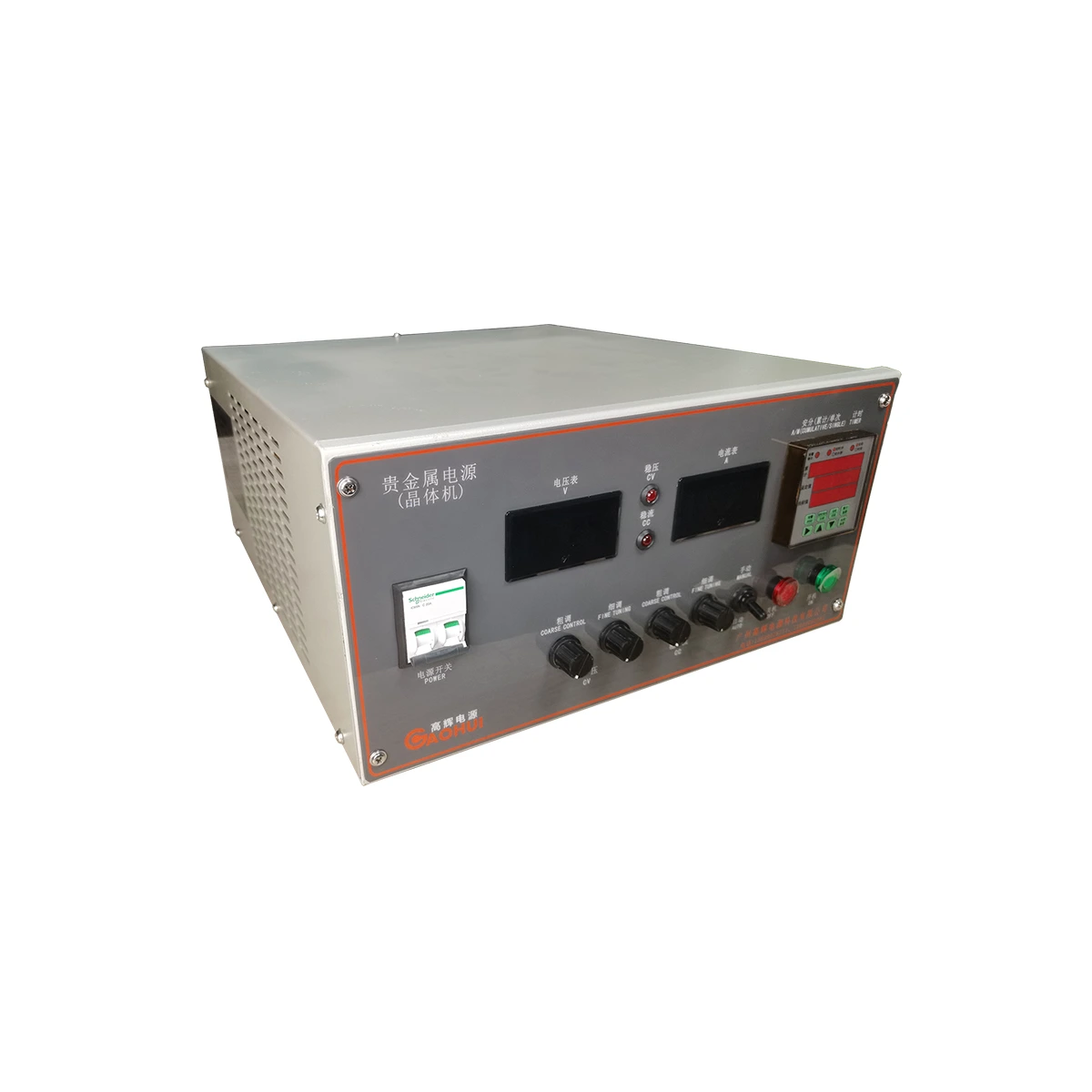

Heavy-Duty Silver Plating Power Supply (12V 100A) for Silver Electroplating

Executive Summary
This 12V 100A IGBT rectifier is precision-engineered to eliminate surface porosity and improve adhesion in high-purity silver baths. It delivers a constant, ripple-free DC output essential for applications like electrical contact plating and precision cyanide silver processing. Unlike outdated SCR or linear supplies, this unit offers 92% efficiency integrated with a closed-loop digital controller to maintain current stability regardless of load fluctuations.
Part 1 Key Features & Engineering Highlights
Advanced IGBT Switching Topology
Switching frequencies above 20kHz reduce ripple to less than 1% peak-to-peak, matching the pure DC output characteristics of linear power supplies. This ensures a fine-grained deposit structure in rectifier systems for silver plating without requiring passive post filtering.
Superior Energy Conversion
The unit dissipates less heat than SCR alternatives, enabling compact air-cooled operation at full rated load. The modular power section allows this industrial high frequency rectifier factory to integrate precise current regulation, reducing energy wasted as heat during extended production runs.
Remote Control Interface
The included handheld remote allows precise adjustment of both voltage and current on the fly. Mimicking OEM industrial units, the interface also accepts 0-10V analog isolated control signals, enabling full PLC integration.
Part 2 Technical Specifications Table
| Parameter | Specification |
|————————|—————————-|
| Output Voltage Range | 0-12V DC (Adjustable) |
| Output Current Range | 0-100A (Continuous Rated) |
| Input Voltage | 380V 3-Phase AC |
| Ripple | < 1% (Full Load) |
| Cooling Method | Forced Air Cooling |
| Protection Class | IP20 (Industrial Grade) |
| Efficiency | 89-92% (Typical) |
Part 3 Advanced Built-in Protection Systems
The control brain orchestrates five simultaneous safety layers:
Short-circuit shutdown responds in under two microseconds.
Constant current limiting prevents load runaway during initial contact.
Over-temperature trip with auto-restart protects the IGBT modules.
Phase-loss detection on the input lines halts operation if a power leg drops.
Soft-start circuitry limits inrush current to protect upstream breakers. This passive safety architecture both extends component life and meets the stringent durability standards expected of a heavy-duty DC power supply price category.
Part 4 Target Industrial Applications
High-Purity Silver Baths
Consistent current density prevents burning on complex geometries, critical for decorative and technical silver deposition.
Precision Cyanide Silver
The low ripple voltage stabilizes grain refinement, reducing post-plate buffing requirements in electrical contact manufacturing.
Rack and Barrel Lines
Scanning its RS485 port enables integration with AMP-hour counters. The real-time data loop ensures repeatable deposit thickness across thousands of parts per shift.
Part 5 Customization and Tailored Engineering Services
As a dedicated IGBT rectifier manufacturer, we extend full voltage and current scaling: 1V to 1000V, 1A to 100,000A, all outputting regulated DC only. The base unit accepts both processing and monitoring modules:
Process Timer: Programmable run cycles with audible completion alert.
Multi-Stage Profile Control: Ramp, soak, and step profiles for complex plating recipes.
Ampere-Minute Integrator: Precisely tracks charge delivered for consistent deposit weight.
Automatic Reverse Polarity: Programmable pulse reverse for alloy or pulse plating.
Soft-Start: Adjustable ramp time from 1 to 99 seconds.
Remote interfaces: RS485 Modbus RTU, Ethernet TCP/IP, 4-20mA, and Pulse Functions 1-3000Hz adjustable.
Every custom unit ships with full schematics, a panel-mounted ammeter, and digital amp-hour counter. To confirm your custom current voltage rectifier configuration, contact our engineering team directly at 408-622-9851.
