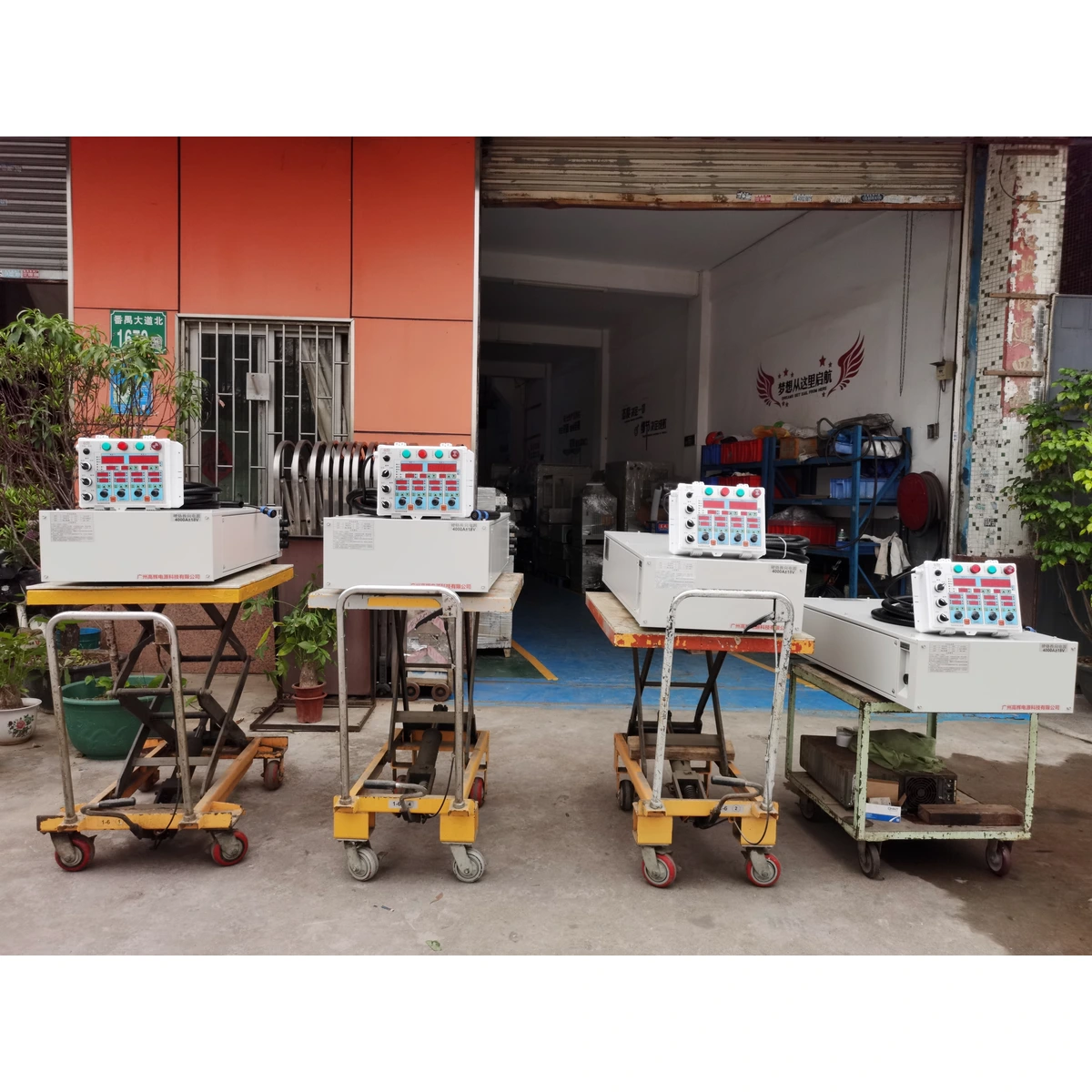

Heavy Duty Plating Power Supply (24V 3000A) for Hard Chrome Plating

Executive Summary
This DC power supply is engineered specifically for the brutal demands of hard chrome electroplating. Unlike standard rectifiers that falter under continuous high-current loads, this unit delivers a stable, ripple-free 3000 Amps at 24 Volts, essential for depositing thick, wear-resistant chrome layers on hydraulic cylinders, industrial rollers, and large-scale tooling. It replaces legacy tap-switch and SCR designs with high-frequency IGBT switching technology, providing superior energy efficiency and precise current control to eliminate burnt deposits and uneven coating. Sourced from a dedicated industrial high frequency rectifier factory, this is a production workhorse built for 24/7 operation in the toughest surface finishing environments.
Part 1: Key Features and Engineering Highlights
Hard chrome plating demands a DC source that resists arcing and maintains a pure waveform. This rectifier meets those needs with a suite of industrial-grade features.
High-Frequency IGBT Switching Topology: The core utilizes advanced IGBT modules operating at 20kHz+ to deliver a smooth DC output with ripple voltage below 1%. This waveform integrity prevents “treeing” and nodule formation in the chrome deposit, a critical requirement for achieving a high-quality, mirror-like finish on hydraulic rods.
Heavy-Duty Secondary Rectification: Oversized Schottky diodes are mounted on dedicated liquid-cooled cold plates, ensuring the 3000A sustained output never reaches thermal runaway. This design is validated for continuous duty cycles of 8-12 hours in tank operations.
Sealed Control and Power Cabinets: The control electronics are housed in a pressurized cabinet to isolate them from the corrosive chromic acid mist. All exposed bus bars are powder-coated and tinned to prevent oxidation and maintain conductivity over years of service.
Part 2: Technical Specifications Table
| Parameter | Specification | Notes |
| :— | :— | :— |
| AC Input Voltage | 380V ± 10% // 3-Phase // 50/60Hz | Custom taps available for 400V/480V |
| DC Output Voltage | 0 – 24 VDC (Continuous Adjustable) | Stepless regulation via rotary pot or remote |
| DC Output Current | 0 – 3000 A (Continuous Adjustable) | Constant Current mode for plating |
| Output Ripple | 90% (at full load) | Pays back energy cost in high-ampacity runs |
| Input Protection | Phase-failure, over/under voltage | Prevents single-phasing damage |
| Control Interface | RS485 Modbus RTU, 4-20mA Analog | For PLC or remote pendant station integration |
Part 3: Advanced Built-in Protection Systems
A chrome plating tank failure is expensive. This rectifier includes a multi-layered protection architecture designed to prevent scrap workpieces and equipment damage.
Polarity Pulsing with Soft-Start: The unit features an automatic reverse polarity module to etch the steel surface before deposition. The soft-start function ramps current over 0.5 to 10 seconds (adjustable), preventing thermal shock to the substrate and rectifier components.
Ampere-Minute Integrator: For repeatable plating thickness, the built-in integrator monitors total coulombs transferred. Once the set target (e.g., 1000 Amp-minutes for a 0.001-inch deposit) is reached, the unit automatically shuts down to the standby state.
Over-Temperature and Short Circuit Trip: Critical power components are monitored by direct thermocouple feedback. If any heat sink exceeds 85°C, the output current is folded back rather than a hard shut-off, protecting the load while signaling a service alert.
Part 4: Target Industrial Applications
This rectifier is not a general-purpose unit. It is a purpose-built tool for processes requiring high current density and long cycle times.
Hard Chrome Plating on Hydraulic Cylinders: For large bore (6-inch diameter) rods requiring a 0.010-inch thick chrome layer, this 3000A unit maintains current density over the full submersion cycle.
Heavy Industrial Roll Rebuilding: Used for rebuilding worn steel and cast iron rolls in the paper and textile industries. The rectifier can handle the high amperage required for thick coatings on long, large-diameter workpieces.
Corrosion Resistance and Surface Finishing: Ideal for applying anti-corrosion chrome layers on pump shafts and valve stems in hostile marine and chemical plant environments.
Part 5: Customization and Tailored Engineering Services
We operate as a responsive IGBT rectifier manufacturer committed to custom configurations. Your specific process may require a deviation from the standard 24V/3000A module.
Parameter Flexibility: We can build units from 1V to 1000V and from 1A to 100,000A. The output is strictly DC; input can be single-phase or three-phase AC (110V, 208V, 380V, 480V, 600V).
Advanced Process Control Modules:
– Process Timer & Multi-Stage Profile Control: Program up to 16 separate current ramps and dwell times for complex plating sequences without external PLCs.
– Ampere-Minute Integrator: Already included; calibratable for different bath chemistries.
– Automatic Reverse Polarity: Adjustable on-time and duty cycle for etch, clean, or de-plating cycles.
– Soft-Start: Reduces inrush current stress on the rectifier and prevents burning of delicate parts.
Communication and Interface Options:
A standard RS485 Modbus RTU port is included. Add Ethernet (Modbus TCP) for plant-wide SCADA integration. We can also interface with 4-20mA controllers from major brands. For specialized pulse plating, we offer Pulse Functions: Adjustable frequency from 1Hz to 3000Hz with duty cycle control for grain refinement in chrome.
Leadtime: Standard configuration ships in 2 weeks. Fully custom builds require 4-6 weeks after engineering review. Request a heavy-duty DC power supply price from our sales team, ensuring our custom quote beats any comparable Chinese import. For custom current voltage rectifier projects, our engineering team provides a full electrical and mechanical drawing package before fabrication.
