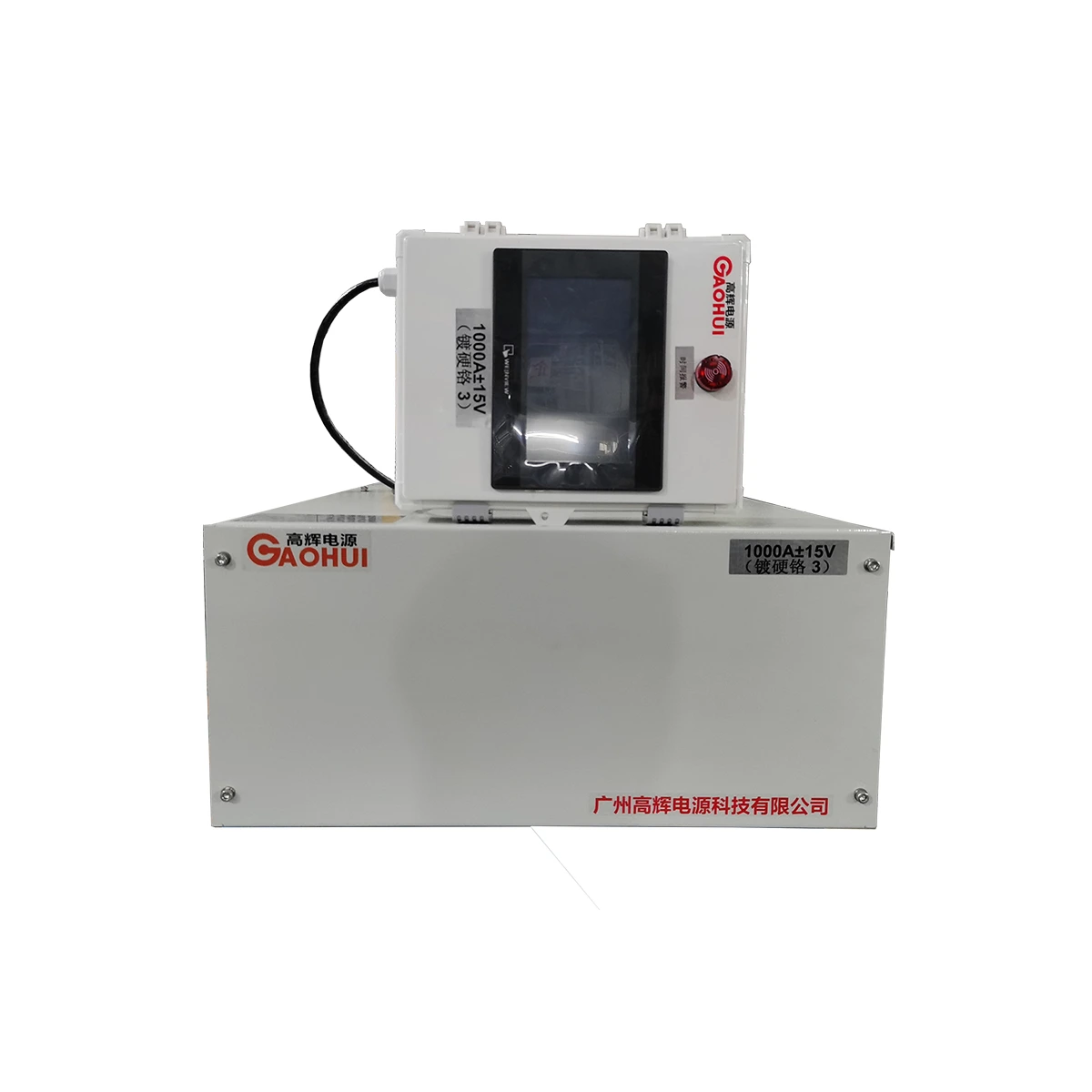

Hard Chrome Plating – 12V 1000A GAOHUI IGBT Rectifier Manufacturer

Built for the brutal demands of industrial hard chromium and hexavalent chrome baths, the GAOHUI 12V 1000A rectifier is the exact tool you need to eliminate pitting, burning, and inconsistent deposit rates. As a leading industrial high frequency rectifier factory, we designed this unit to deliver pure, ripple-free DC power so your heavy-duty plating barrel achieves maximum throughput without rejects. If you are comparing heavy-duty DC power supply price tags, remember that this machine pays for itself through lower energy bills and zero downtime on a 24/7 production floor.
Part 1 Key Features & Engineering Highlights
Ultra-Pure Current Output for Hard Chrome
Standard SCR units introduce ripple that destroys chrome coverage on sharp edges. Our IGBT topology filters the waveform to less than 1% ripple. This protects your hexavalent chrome bath from oxidation and allows you to run a heavy-duty plating barrel at peak efficiency without micro-cracking.
180kHz High Frequency Switch Mode
While competitor references describe low-cost built-in modules that max out at 24,000A with shared voltage, our single-module architecture delivers 1,000A full-time at 12V. Air cooling mode with three-phase 380V/400V/480V AC input ensures you never lose production to a failed fan or clogged filter.
Edge-to-Edge Deposit Uniformity
Hard chromium applications demand a rectifier that maintains voltage across every square inch of a 1.5ft to 3ft surface. The GAOHUI 12V 1000A achieves this with digital PID loop control. You get repeatable coating thickness whether you are plating nickel on mild steel parts or applying industrial hard chromium to shafts and cylinders.
Part 2 Technical Specifications Table
| Parameter | Specification |
| — | — |
| Model Number | GH-HC-121000 |
| Output Voltage | 0-12V DC (continuously adjustable) |
| Output Current | 0-1000A DC (continuous rated) |
| Input Voltage | 3PH 380V ±10% / 400V / 480V (50/60Hz) |
| Cooling Method | Forced air cooling |
| Control Method | IGBT high frequency pulse width modulation |
| Ripple Factor | 90% at rated output |
| Protection Class | IP54 (power cabinet) |
| Dimensions (W x D x H) | 600mm x 800mm x 1400mm |
| Net Weight | 150 kg |
Part 3 Advanced Built-in Protection Systems
Any operator who has lost a rectifier due to a shorted cell or overheated bath knows the cost of downtime. This unit includes real-time IGBT junction temperature monitoring, automatic current foldback on overcurrent, and a dry-contact alarm for remote shutdown. The IGBT rectifier manufacturer GAOHUI also integrates surge suppression on the AC mains and a zero-speed fan sensor. If airflow drops below 200 CFM, the machine halts power output before the thermal runaway can begin.
Part 4 Target Industrial Applications
This 12V 1000A rectifier is not a general-purpose tool. It is built specifically for surface treatments that demand high-current stability:
– Hexavalent chrome plating for hydraulic rods and aerospace components
– Industrial hard chromium deposition on molds, dies, and valves
– Heavy-duty plating barrel operations for small parts requiring 500A to 1,000A per module
– Nickel, copper, or zinc plating where ripple-induced roughness is unacceptable
Whether you are expanding a PCB facility or upgrading an existing chrome line, this power supply handles 1.5ft to 3ft surface area parts without requiring a voltage bump to 18V or 24V.
Part 5 Customization and Tailored Engineering Services
GAOHUI is a custom current voltage rectifier specialist. If your bath demands a different output range, we can do it. Our factory custom capability covers 1V to 1,000V and 1A to 100,000A with AC input and DC output only. For the 12V 1000A base model, you can add any of these modules:
– Process Timer with countdown and alarm relay
– Multi-Stage Profile Control for ramping current during hard chrome strike
– Ampere-Minute Integrator for precise deposit thickness tracking
– Automatic Reverse Polarity for periodic current reversal on barrel lines
– Soft-Start circuit to prevent bath shock during initial load
– Communication interfaces: RS485 Modbus RTU, Ethernet TCP/IP, analog 4-20mA remote control
– Pulse Functions from 1Hz to 3,000Hz adjustable frequency and duty cycle
Contact our engineering team with your specific DC requirements. We will deliver a rectifier that outperforms any low-cost alternative you find.
