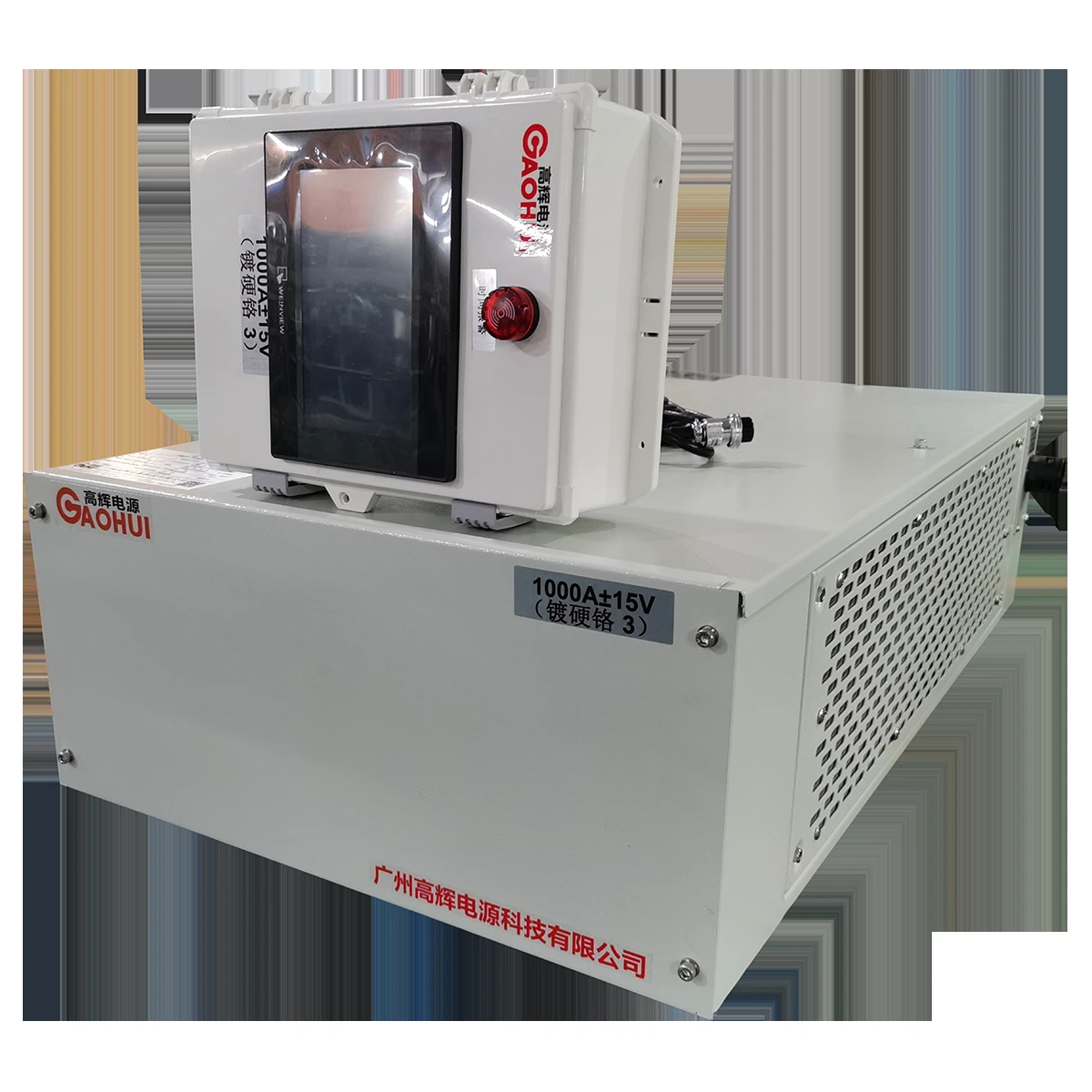

Hard Chrome Plating 12V 1000A DC Power Supply IGBT Industrial Rectifier Factory Price

Executive Summary
Engineered for the extreme demands of heavy-duty hard chromium plating, this 12V 1000A IGBT-based rectifier delivers the stable, spike-free DC waveform essential for flawless surface finishing. Designed by an industrial high frequency rectifier factory to optimize the hexavalent chrome deposition process, this unit replaces bulky thyristor systems with a compact, energy-saving air-cooled design. Sourcing this heavy-duty DC power supply price directly from the manufacturer ensures you get the precision required for thick, pore-free chrome coatings on industrial rollers, hydraulic rods, and molds, without the voltage ripple that causes nodular growth.
Part 1 Key Features & Engineering Highlights
Our engineering team focused on solving the hardest part of the hard chrome bath: maintaining consistent current across irregular part geometries while eliminating the harmonic feedback that plagues older SCR units. The heart of this power supply is a true IGBT rectifier manufacturer grade inverter topology running at 25kHz, which delivers a ripple rate below 3%. This low ripple is critical for hexavalent chrome because it prevents uneven current density distribution at the cathode, directly translating to superior hardness (HRc 62-65) on your plated surfaces. The air cooling design has been validated in ambient temperatures up to 55°C, with a sealed control compartment that protects the logic boards from the corrosive chromic acid mist common in a heavy-duty plating barrel environment. Active power factor correction (PFC>0.93) means you are not paying for reactive power penalties, a feature often missing from budget units.
Part 2 Technical Specifications Table
| Parameter | Specification | Notes for Hard Chrome |
| :— | :— | :— |
| Model | KGY-1000A-12V-HC | Air cooling version |
| AC Input | 380V / 400V / 480V ±10%, 3 Phase | 50/60 Hz |
| DC Output Voltage | 0 – 12V (Continuous Stepless Adjustment) | Can be expanded to 0-18V if anode/cathode spacing is high |
| DC Output Current | 0 – 1000A (Continuous Stepless Adjustment) | Rated for 100% duty cycle at 1000A |
| Output Ripple | < 3% RMS (Full Load) | Measured with resistive and plating load |
| Control Precision | Voltage ≤ 0.5%, Current ≤ 0.5% | Digital encoder or potentiometer |
| Efficiency | ≥ 90% (at rated output) | Higher than traditional transformer units |
| Power Factor | ≥ 0.93 | Active PFC built-in |
| Cooling | Force air cooling | Inlet filters easily cleanable |
| Communication | RS485 Modbus RTU, Ethernet, 4-20mA | Analog and digital interfaces |
Part 3 Advanced Built-in Protection Systems
An industrial hard chromium rectifier cannot suffer downtime due to arc faults or sudden overcurrents during the high-current "strike" phase. This unit is equipped with redundant protection: instantaneous overcurrent cutoff (I²t curve simulation), overvoltage crowbar shut-off, reverse polarity alarm, and a dedicated phase-loss monitor that alerts you if a single fuse blows on the input side. The soft-start function ramps the current from 0A to the setpoint over a user-adjustable 2-10 second window, which is vital for preventing thermal shock to the chrome deposit on complex steel parts.
Part 4 Target Industrial Applications
This 12V 1000A rectifier is purpose-specific for industrial hard chromium baths used in the plating of large hydraulic cylinders, plastic injection mold cavities, and heavy-duty valve spools. Its 12V output is optimized for typical anode-to-cathode distances (8-15 cm) found in the hexavalent chrome process. The unit also excels in aircraft landing gear overhaul (tank plating) and continuous chrome plating of printing rolls, where the IGBT rectifier manufacturer custom current voltage rectifier design allows for precise current density control down to 1 A/dm².
Part 5 Customization and Tailored Engineering Services
We do not force you into a standard catalog box. The factory custom capability covers a full engineering spectrum: Output ranges from 1V to 1000V, and from 1A to 100,000A, all in a single or multi-stage parallel configuration. Input is AC only (single phase or three phase), with output strictly DC. For chrome plating, we highly recommend integrating our optional modules: a real-time Multi-Stage Profile Control (allows up to 8 step current ramps for complex parts), an integrated Ampere-Minute Integrator (for precise deposit thickness calculation), and a programmable reverse pulse function (1-3000Hz, 0-100% duty cycle) for unleashing high-speed nickel underplates prior to chrome. All units ship with an RS485 Modbus RTU port as standard, with Ethernet/IP and 4-20mA remote trims available. Every unit is load-tested at the factory to ensure it can sustain 1000A for 8 continuous hours.
