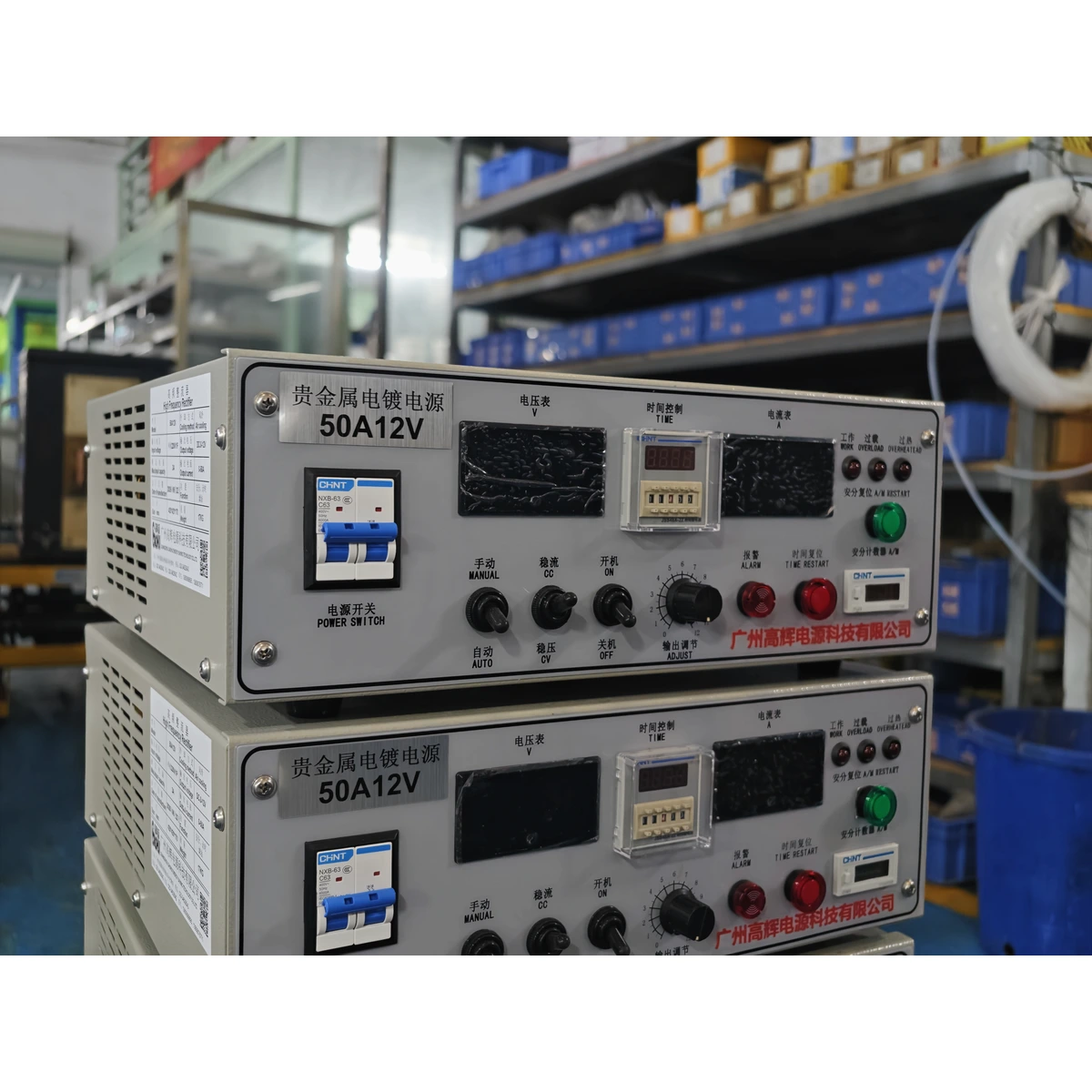

Gold Plating Precision – Pulse Width 50A 12V Heavy Duty Electroplating Rectifier

A stable, pure DC current with minimal ripple is the single most critical variable defining jewelry plating finish quality and deposit density. This industrial DC power supply for precious metal finishing delivers precisely that: a tightly regulated 12V 50A output engineered to eliminate surface burning, porous deposits, and color inconsistency in gold, nickel, rhodium, and silver plating baths. Designed as a direct replacement for outdated SCR or linear units, this pulse-capable unit from a dedicated industrial high frequency rectifier factory integrates soft-start circuitry for minimal chemical shock to expensive electrolytes.
PART 1: KEY FEATURES & ENGINEERING HIGHLIGHTS
High-Frequency IGBT Switching Topology. Utilizes advanced IGBT (Insulated Gate Bipolar Transistor) modules switched at high frequency to deliver a true DC output with ripple factor below 1%. This directly translates to brighter, denser deposits on precious metal plating parts.
Digital Constant Current & Constant Voltage Control. Operators can select CC or CV mode for precise bath management. The digital closed-loop feedback ensures zero drift over extended production cycles.
Pulse Modulation Capability. Integrated pulse function from 1Hz to 3000Hz with adjustable duty cycle allows optimization for microstructure control, critical for high-build applications and decorative rack plating precision.
True Air-Cooled Industrial Design. Engineered with intelligent variable-speed fans using a direct-drive design, this unit requires zero maintenance on cooling components and withstands aggressive plating shop environments without water leaks or corrosion issues.
Complete Isolation. Full galvanic isolation between the AC mains input and the DC output provides complete safety for both the operator and the sensitive gold deposition bath chemistry.
PART 2: TECHNICAL SPECIFICATIONS TABLE
| Parameter | Specification |
| — | — |
| Output Voltage | 12V DC (Adjustable Range: 0V – 12V) |
| Output Current | 50A DC (Adjustable Range: 0A – 50A) |
| Input Power | Single Phase 220VAC / Three Phase 380VAC (Selectable) |
| Ripple Factor | 85% |
PART 3: ADVANCED BUILT-IN PROTECTION SYSTEMS
The unit automatically engages protection triggers to safeguard your batch. Over-Voltage Protection (OVP) cuts the output if the set limit is breached, preventing anodic passivation. Over-Current Protection senses any sudden spike. Over-Temperature Protection uses a thermistor mounted directly to the IGBT heat-sink to shut down the unit before the silicon junction fails. Reverse Polarity Protection prevents catastrophic damage if cables are incorrectly attached to the rectifier. Short Circuit Protection is fully automatic and reset immediately upon clearing the fault. A Soft-Start circuit ramps the DC output voltage over a 3-second window at startup.
PART 4: TARGET INDUSTRIAL APPLICATIONS
This rectifier is purpose-built for decorative and functional electroplating of electronic connectors and precious metals. Primary uses include gold and nickel plating of jewelry items, spot plating of contacts for the electronics industry, electroforming of intricate thin-wall gold shapes, and rhodium or palladium plating of small silverware. The precise current output of this heavy-duty DC power supply price point unit also covers copper strike, acid copper, and nickel plating applications in barrel and rack environments.
PART 5: CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
Factory direct access from the IGBT rectifier manufacturer means you are not locked into a fixed design. Our engineering team tailors the complete electrical and mechanical architecture to your specific process requirements. We can modify the output range from 1V up to 1000V and 1A up to 100,000A. We accept any AC input voltage globally and provide pure DC output. Embedded options include a Process Timer for automatic stop at set hours, Multi-Stage Profile Control (ramp/soak/dwell sequencing), an Ampere-Minute Integrator (A-Hr totalizer) for precise consumption tracking, and Automatic Reverse Polarity (Periodic Reverse) for leveling and brightening. Communication integration includes RS485 Modbus RTU, Ethernet for full SCADA integration, 4-20mA analog remote control, and the full adjustable pulse function (1-3000Hz). For a custom current voltage rectifier that fits your exact bath chemistry and production line, contact the factory today.
