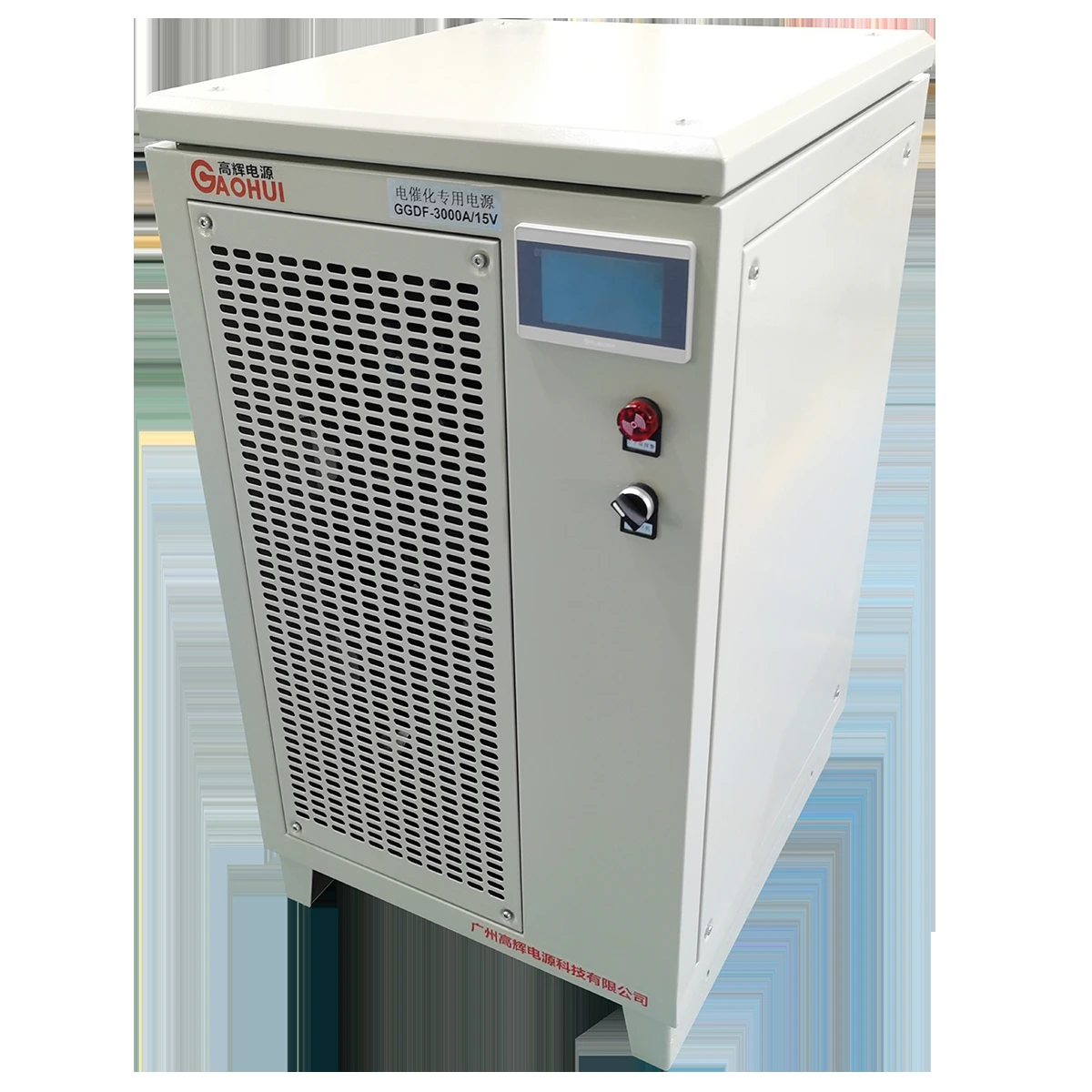

Gold and Silver Refining – 15V 3000A Heavy-Duty IGBT Electrolysis Rectifier

Executive Summary
This 15V 3000A unit is not a variable lab supply or a repurposed battery charger. It is a specifically engineered industrial high frequency rectifier factory unit built for the brutal electrochemical conditions inside gold parting cells and silver scrap electrolysis tanks. While common marketplace alternatives rely on salvaged components that drift over time, this system delivers a locked, ripple-free DC current essential for consistent crystalline silver growth and pure gold deposition. You require a custom current voltage rectifier that sustains full-rated amperage for hours under heavy metal loading, without voltage sag or thermal runaway.
Part 1 Key Features & Engineering Highlights
High-Frequency IGBT Topology
Switching at 20kHz with high-speed IGBT modules, this design slashes copper and core losses compared to traditional SCR or thyristor units. The result is a heavy-duty DC power supply price point that beats outdated transformer-based systems on payload efficiency and operating cost.
Dedicated Electrolytic Output
Output is pure DC with less than 1% ripple at full load. For silver scrap electrolysis, ripple excites unwanted dendritic growth; this unit eliminates that. For gold parting cell operation, low ripple prevents passivation and yields consistent purity.
True 15V 3000A Rating
Unlike undersized imports that derate continuously, this unit’s oil-immersed main transformer and forced-air heat sinks support indefinite 3000A output. Tested under resistive and electrolytic loads, voltage holds to within 0.5V across the full operating band.
Digital PID Controller
The built-in microprocessor maintains constant current with a response time under 10ms. Set your target amperage for the day, and the unit compensates for changing electrolyte conductivity as temperature rises or falls.
Part 2 Technical Specifications Table

Part 3 Advanced Built-in Protection Systems
Three-stage soft-start prevents tripping plant breakers on inrush. An independent thermal shutdown circuit monitors both IGBT junction temperature and transformer core temperature. If any single fan fails, the unit reduces output current automatically rather than hard-stopping the electrolysis process. A dry-contact alarm output connects directly to your plant PLC or local buzzer. No SCR-style fusing cascade: this unit uses active current foldback that limits output to 110% of set point, then recovers once the fault clears.
Part 4 Target Industrial Applications
Silver Scrap Electrolysis
This rectifier is the core power supply for high-volume gold and silver scrap electrolysis and bullion refining. You can sustain 3000A into a 6-cell silver nitrate tank line for 10-hour uninterrupted runs, producing consistent 999+ fine silver crystals without current starvation.
Gold Parting Cell Operation
For aqua regia or Wohlwill gold cells requiring precise low-voltage high-current control, this unit’s fine voltage resolution lets you operate at exactly 5.5V or 7.8V with thousand-ampere current delivery. No parallel units needed.
Reverse Electroplating Recovery
Use the polarity reversal function (built-in) for cathode stripping cycles without manual bus-bar switching. Process an entire batch of gold-plated scrap in under 2 hours at full current.
Part 5 Customization and Tailored Engineering Services
As a premier IGBT rectifier manufacturer, we provide complete custom configurations for precious metal refiners. Standard production covers:
– Voltage: 1V to 1000V
– Current: 1A to 100,000A
– Input: 1-Phase 220V to 3-Phase 690V
– Output: Pure DC only (no AC outputs)
Available Add-on Modules
Process Timer with programmable timed cycles for batch refining recipes. Multi-stage Profile Control that ramps current for starting then drops to hold current for finishing. Ampere-Minute Integrator with 6-digit display and pulse output for dosing electrolyte additives. Automatic Reverse Polarity with adjustable forward and reverse durations for cleaning electrode surfaces. Soft-Start ramp times from 0.1 to 60 seconds.
External Communication & Remote Interfaces
Built-in RS485 Modbus RTU for SCADA integration. Optional Ethernet TCP/IP gateway for remote monitoring dashboards. 4-20mA analog control inputs for integration with pH or ORP sensors. Pulse Function with adjustable frequency from 1Hz to 3000Hz for ultrasonic electrolysis effects.
Please specify when ordering: natural cooling, forced-air, or forced-water internal heat exchangers. All units are factory-tested at full rated output before shipment. For product availability and current lead times, contact our engineering sales team directly. No universal drop-ship stock; every unit is configured to your chemical process.
