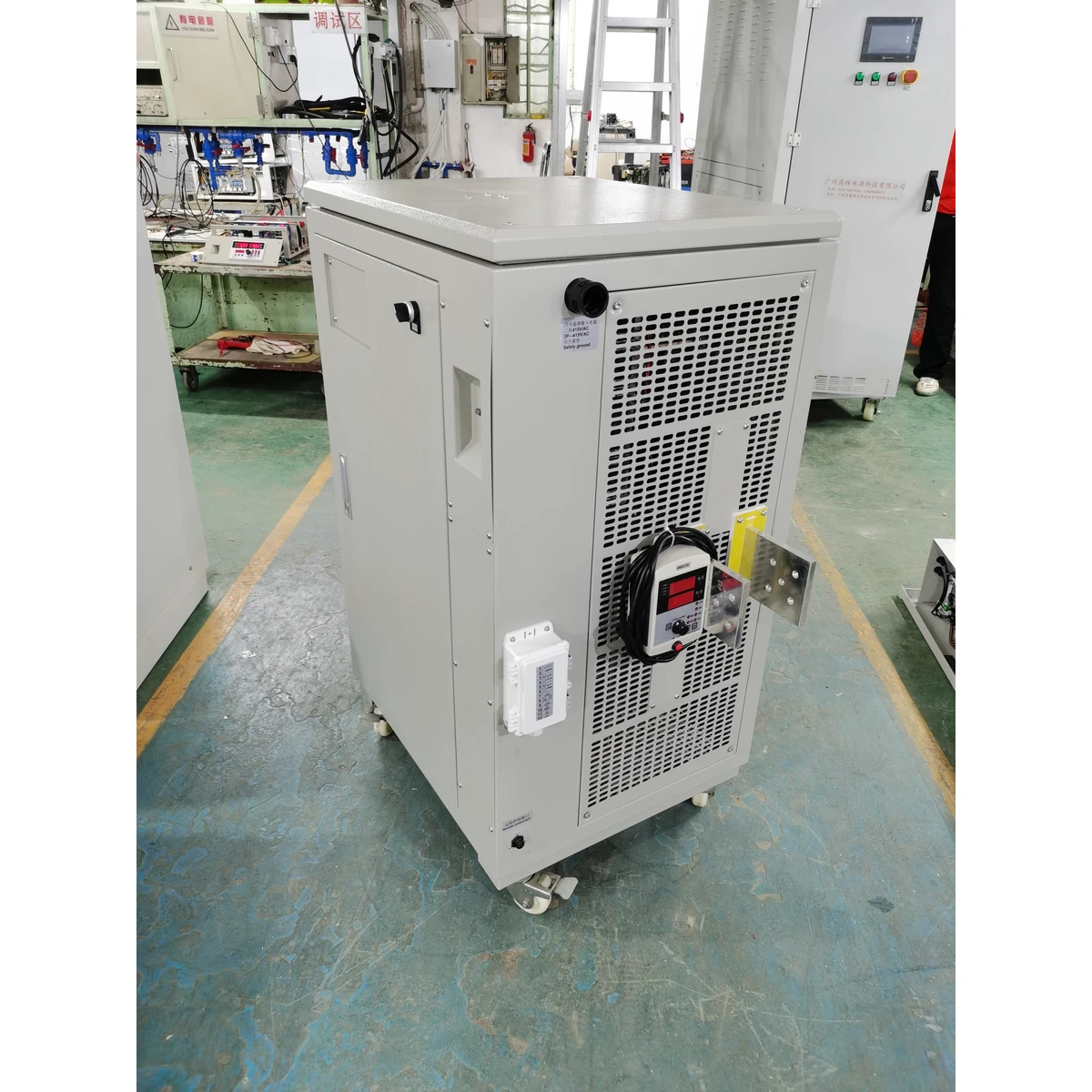

GAOHUI Heavy Duty Plating Power Supply (12V/6000A) for Nickel Lead Recovery

Executive Summary
Engineered for the brutal, continuous 24/7 demands of nickel and lead electrowinning, this 60-kilowatt custom current voltage rectifier redefines operational efficiency in the non-ferrous metals industry. As a trusted industrial high frequency rectifier factory, GAOHUI delivers a machine that converts raw AC current into precise, low-ripple DC power with a conversion efficiency exceeding 91%. This recovers more metal per kilowatt-hour while drastically reducing thermal load on downstream electrolysis tanks. Whether you are optimizing a nickel purification plant or tackling heavy metal wastewater recycling, this unit provides the long-term stability and repeatable amperage required to maintain consistent cathode purity and deposition rates.
Part 1 Key Features & Engineering Highlights
Industrial High Frequency Switching Topology
Unlike bulky, inefficient thyristor bridges, this rectifier uses advanced IGBT resonant switching. This reduces transformer size by 70% and virtually eliminates magnetic hum and thermal drift, ensuring your electrolyte bath maintains a stable voltage under fluctuating load conditions.
Direct Liquid Cooling System for Sustained 24/7 Output
To handle the conductive dust and high ambient temperatures of a heavy-duty DC power supply price point, GAOHUI incorporates a sealed, deionized liquid cooling loop. Internal heat sinks keep junction temperatures below 85°C even when delivering the full 6000A nameplate rating, eliminating thermal derating in summer conditions.
Ultra-Low Ripple High-Precision Regulation
Output ripple is suppressed below 5% RMS at full load, which is critical for crystal formation uniformity in lead electrorefining. With a built-in closed-loop feedback PID controller, the unit maintains 0.5% voltage and 1% current regulation across AC input fluctuations of ±20%.
Part 2 Technical Specifications Table
| Parameter | Specification | Notes |
| — | — | — |
| Input Voltage | 380V ±20% / 3-Phase / 50-60Hz | Wide tolerance for unstable grid |
| Output Voltage Range | 0‑12V (continuously adjustable) | Precision fine tuning via 10-turn pot |
| Output Current Range | 0‑6000A (continuously adjustable) | Linear curve up to full rating |
| Rated Power | 72kVA (60kW continuous) | Nameplate continuous duty |
| Ripple Factor | ≤5% RMS (at full load) | Electrolytic grade performance |
| Efficiency | Up to 91% (at 75% load) | IGBT topology advantage |
| Cooling Method | Internal liquid-to-air (closed loop) | No external chilled water required |
| Protection Class | IP54 (electronics cabinet) | Dust and splash resistant |
| Interface | RS485 Modbus RTU, Ethernet, 4‑20mA | Full remote monitoring |
| Weight | 480kg (1058 lbs) | Forklift lift pockets included |
| Dimensions (WxHxD) | 900x1600x700mm | Standard footprint |
Part 3 Advanced Built-in Protection Systems
This IGBT rectifier manufacturer understands that a single short or overvoltage event can destroy weeks of plating work. The protection suite includes:
– Reverse Polarity Detection and Automatic Lockout: Protects the rectifier from accidental connection to reverse cell potential.
– Electronic Under-Voltage and Over-Voltage Shutdown: Triggers at ±5% deviation to protect diode banks and you expensive electrodes.
– Over-Current Instant Trip: 100% hardware triggered within 1ms to limit inrush during cathode short circuits.
– Phase Loss and Phase Sequence Monitor: Automatically disables output to prevent single-phasing damage to the switch-mode supply.
– Soft-Start Ramp (0.1s to 10s adjustable): Prevents mechanical shock to bus bars and electrolyte thermal shock.
Part 4 Target Industrial Applications
Lead Electrowinning (Lead Oxide / Lead Paste Recovery)
Constantly delivers the 2.0V to 2.6V per cell necessary for lead sulfate conversion, with low ripple preventing secondary lead dioxide formation. Units deployed in secondary lead smelting plants report 12% reduced energy consumption per ton of refined lead.
Nickel Purification Plant Applications
For nickel electro-winning and electro-refining, this rectifier provides the high current density required for nickel crown production. Its precise current regulation maintains consistent 3.8V cell potential even when nickel concentration varies in the electrolyte, directly influencing product cathode thickness uniformity.
Heavy Metal Wastewater Recycling
Used for electrolytic recovery of copper, zinc, and nickel from spent plating baths and rinse waters. The unit’s ability to push 6000A through low-conductivity solutions makes it ideal for closed-loop metal recovery systems, extracting precious metals from waste streams until concentrations drop below 10 ppm.
Part 5 Customization and Tailored Engineering Services
As a flexible industrial high frequency rectifier factory, GAOHUI offers complete customization to match your specific process. While the base unit is 12V 6000A, we can engineer any configuration from 1V to 1000V and 1A to 100,000A (input AC, output DC only).
Process Optimization Modules:
– Multi-Stage Profile Control: Program up to 99 current/voltage ramp steps with dwell times and repeat cycles.
– Ampere-Minute Integrator: Real-time Coulomb counting with alarm output at preset charge thresholds. Ideal for depletion plating.
– Automatic Reverse Polarity (ARP): Periodic current reversal (up to 1 second on/off) for dust removal and polishing.
– Pulse Functions: Selectable 1 to 3000Hz square wave, sawtooth, or triangular pulses. Used for grain refinement in gold/silver plating.
Remote Monitoring & Control Interfaces:
– RS485 Modbus RTU (standard): Full register map provided for Scada and PLC integration.
– Ethernet TCP/IP (optional): Web-based dashboard with historical trending, alarm logging, and remote firmware updates.
– 4‑20mA Analog Bridge (optional): Direct connection to legacy controllers or DCS for current and voltage setpoint.
Why GAOHUI is the Heavy-Duty DC Power Supply Price Leader
Unlike commodity suppliers, GAOHUI manufactures every main power component in-house—from the ferrite core transformers to the control PCB. This vertical integration ensures you receive a unit that costs less than imported brands while offering a full 24-month warranty and lifetime technical support from the factory. No hidden shipping costs, no third-party markups—just a custom current voltage rectifier built to outlast your production cycles.
