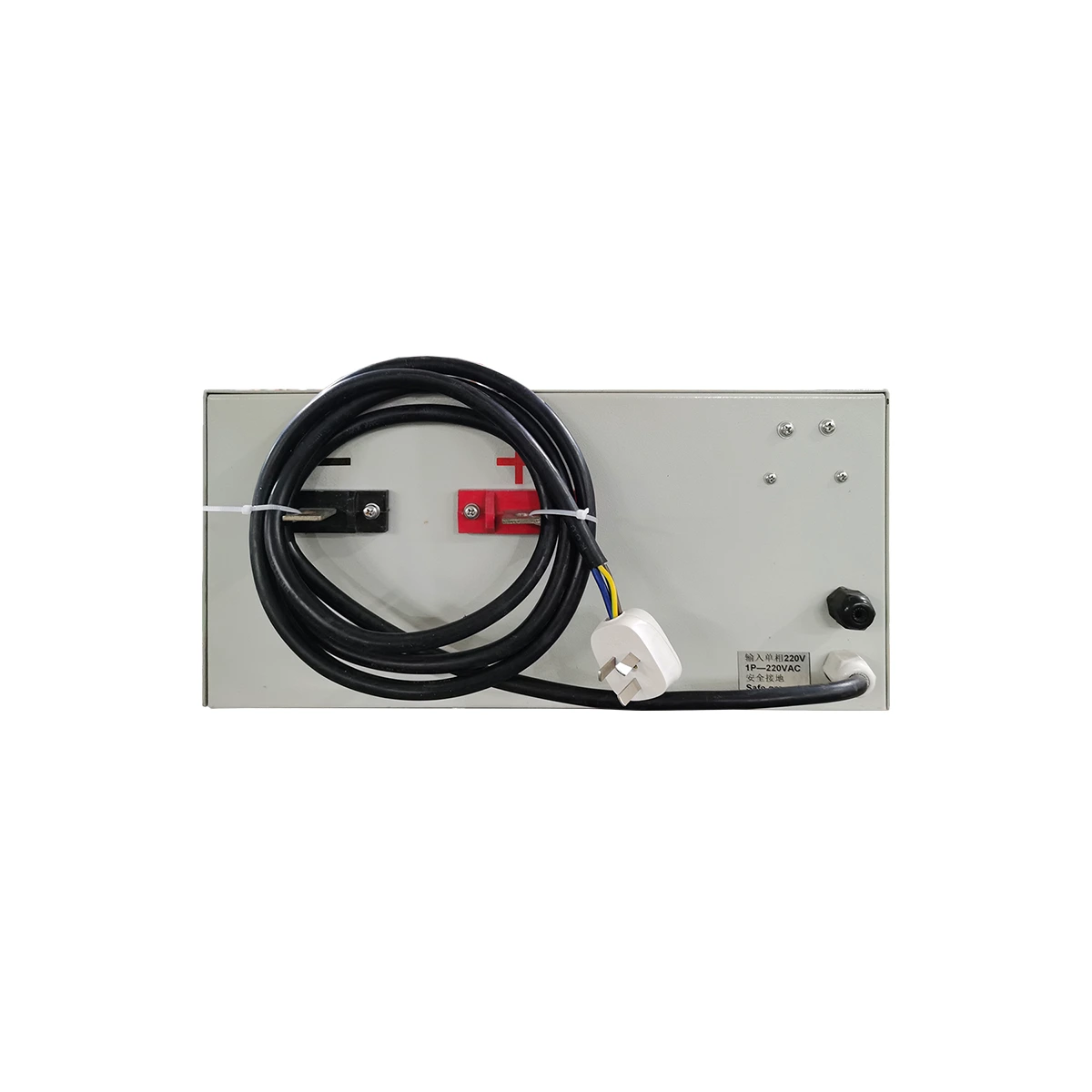

GAOHUI Gold Plating Power Source 12V 50A Industrial High Frequency Rectifier Factory

The GAOHUI 12V 50A Gold Plating Power Source is engineered for precision metal finishing, bridging the critical gap between laboratory-grade pulse control and rugged industrial output. This industrial high frequency rectifier factory direct unit eliminates the inefficiencies of traditional SCR designs, delivering pure, ripple-free DC that directly impacts deposit density and porosity for high-value gold layers. Unlike standard 50A ±12V pulse plating rectifiers that require manual tuning, our proprietary IGBT switching topology provides real-time closed-loop compensation against load changes, ensuring consistent micro-throw into complex part geometries.
PART 1: KEY FEATURES & ENGINEERING HIGHLIGHTS
Core Rectifier Technology
Dual-stage IGBT inverter design delivering >92% efficiency at full 12V 50A output. The pure DC waveform eliminates striations caused by ripple, critical for decorative gold plating where surface defects directly reject the final product. This is not a simple transformer-rectifier; it is a fully regulated switching converter maintaining 0.5% voltage regulation from 0.1A to 50A.
Heavy-Duty DC Power Supply Price Value Chain
Direct-from-factory pricing eliminates distributor markups common in heavy-duty DC power supply price comparisons. The 12V 50A model incorporates dual forced-air cooling paths with NEMA-rated fan filters, enabling continuous 24/7 operation at ambient temperatures up to 45°C without thermal derating. The output bus bars are solid copper, rated for 60A continuous duty.
Pulse Precision Architecture
Built-in pulse generator module for gold plating applications: 1-3000Hz adjustable frequency with independent duty cycle control (0-100%). The pulse rise time is <10 microseconds, critical for high-speed selective plating of electronic connectors where current density localization determines deposit distribution. Includes automatic amplitude compensation during pulse bursts to prevent peak current collapse.
PART 2: TECHNICAL SPECIFICATIONS TABLE

PART 3: ADVANCED BUILT-IN PROTECTION SYSTEMS
The 12V 50A IGBT rectifier manufacturer integrates six layers of real-time fault mitigation engineered for continuous production environments. The primary protection includes instantaneous overcurrent shutdown with 2-microsecond response, preventing arc damage during part contact. Overtemperature protection monitors both IGBT junction temperature (via NTC thermistor) and internal ambient air; activation thresholds automatically reduce output current linearly before hard shutdown. The unit also features loss-of-phase detection on the input supply, load-loss alarm (broken cathode connection from rectifier to plating tank), and an input surge suppressor rated for momentary 400VAC spikes. All protection trips are latched and require manual reset to prevent automatic restart into a fault condition.
PART 4: TARGET INDUSTRIAL APPLICATIONS
This direct current power supply is purpose-built for precious metal electrodeposition processes where grain structure and deposit thickness distribution determine profitability. Primary applications include jewelry gold plating of chain, earrings, and ring settings where uniform coverage over complex 3D surfaces prevents redeposition costs. For rack plating precision applications, the GAOHUI unit enables controlled current density across different part positions on the rack, reducing overplate on high-current-density corners. The pulse capability is essential for electronic connector finishing of gold-plated pogo pins and battery contacts where wear resistance and corrosion protection demand dense, fine-grained gold deposits without excessive porosity. Additional applications include continuous strip plating, aerospace component spot plating, and specialized electroforming of gold for musical instrument parts.
PART 5: CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
GAOHUI operates a dedicated industrial power supply factory with full engineering design and manufacturing capability for custom current voltage rectifier configurations beyond standard catalog offerings. Our team will design units from 1V to 1000V DC and from 1A to 100,000A DC output, with your choice of input AC voltage (single phase 110-277VAC, three phase 208-600VAC). The output is strictly DC only unless specified for pulse applications. Available integrated modules include a Process Timer for total plating duration control, a Multi-Stage Profile Control allowing 10-step current/voltage ramping sequences for complex layer recipes, and an Ampere-Minute Integrator for precision coulomb counting of deposited metal mass. For automated lines, the unit can be equipped with Automatic Reverse Polarity for periodic reversal cleaning cycles, Soft-Start ramp to avoid part damage, and dual interfaces for RS485 Modbus RTU or Ethernet physical layer connectivity plus analog 4-20mA for integration with existing PLC systems. The pulse function is fully configurable from 1Hz to 3000Hz with adjustable duty cycle, important for high-speed selective plating applications where pulse width control defines definition and rejection rates.
