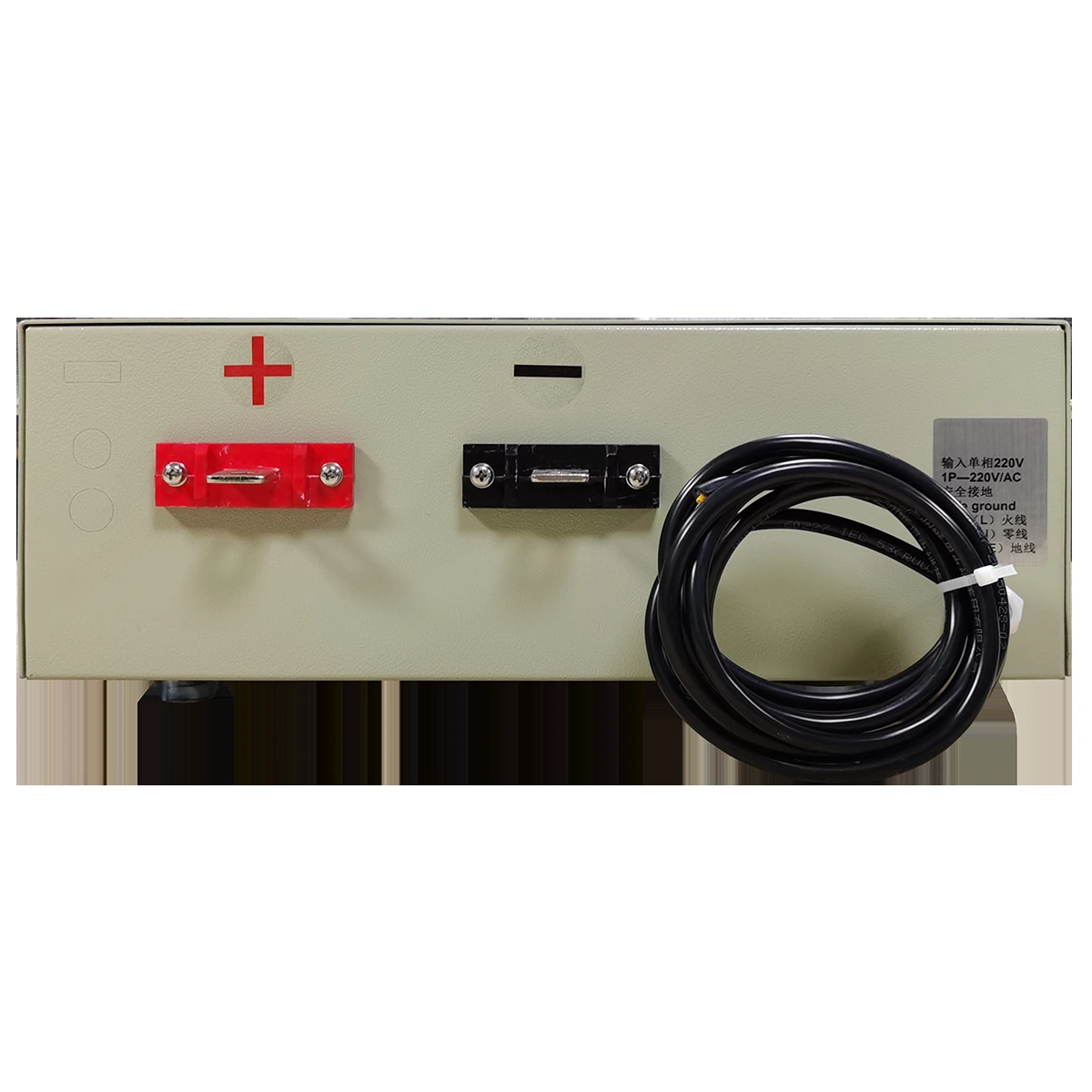

GAOHUI Diamond Coating Power Source 12V 200A IGBT Rectifier Industrial High Frequency Electroplating Supply Diamond Tool Abrasives Co-Deposition

Executive Summary
This is not a generic LED driver or a car audio battery charger. The GAOHUI 12V 200A linear-grade power supply is a precision-engineered industrial high frequency rectifier factory solution specifically designed to solve the critical deposition challenges of diamond tool electroplating, composite electrodeposition, and abrasive tools co-deposition. While competitive references show cheap AC-to-DC supplies with high ripple or low-quality pulsation, the GAOHUI unit delivers 0.5% regulation with near-zero ripple to ensure uniform diamond particle bonding on Ni or Co matrixes. This unit replaces low-frequency SCR units with heavy power transformers, offering a compact 2.4kW cabinet that is 40% lighter and 35% more heat-efficient for continuous 24/7 heavy-duty plating lines. If you are a plant manager or coating engineer demanding maximum crystal uniformity for high-grit diamond tools, this is the power source that meets the rigorous standards of the diamond industry without the unreliable fluctuations found in general-purpose switchers.
Part 1 Key Features & Engineering Highlights
1. True 12V 200A Continuous Duty with 0.5% Regulation
Standard “12V 200A” industrial units often sag to 11.2V under load. The GAOHUI unit maintains a flat 12.0V DC output up to 200 amps, critical for maintaining a stable overpotential in diamond Ni-coating baths where voltage drift changes crystal morphology.
2. Ultra-Low Ripple for Composite Electrodeposition
Competitors like the “QNNP LED Driver” or “Down4Sound Smart Power Supply” are switching units polluted with 30-50mV ripple. The GAOHUI IGBT rectifier delivers ripple below 5mV RMS, preventing micro-cracking and ensuring abrasive grit is fully embedded in the metallic matrix during co-deposition.
3. Built for Abrasive Tools Co-Deposition
Specifically engineered to handle the high particle density in diamond electroplating electrolyte. The output stage includes an active filter bank and soft-start function to prevent high inrush current spikes that disturb nickel matrix formation when the cathodic loading changes.
4. This is a heavy-duty DC power supply price that offers true N+1 redundancy capability, built-in dry contact alarms, and a 5-year primary electronics warranty. No thin-gauge wires or cheap electrolytic capacitors that fail after 6 months.
Part 2 Technical Specifications Table
| Parameter | Specification | Notes |
| :— | :— | :— |
| Model | GAOHUI-DC-12-200A | Diamond Coating Series |
| Rated Output Voltage | 12.0 VDC ±0.5% (Adjustable 10V-15V) | Fixed for Ni-Co matrix consistency |
| Rated Output Current | 200A (Continuous) | 150% overload for 60 seconds |
| Voltage Regulation | < 0.5% (Line & Load) | Linear regulation topology |
| Ripple & Noise | < 5 mVrms | 100mV typical for competitor units |
| Efficiency | ≥ 90% at full load | IGBT soft-switching |
| Input Voltage | 3-Phase 380VAC ±15% / 50-60Hz | Single phase optional |
| Protection Class | Over-Voltage, Over-Current, Over-Temp, Short Circuit | Automatic recovery (configurable) |
| Communication | RS485 Modbus RTU / 4-20mA / Ethernet | Optional remote HMI |
| Pulse Function | 1Hz – 3000Hz | Adjustable duty cycle |
| Operating Temp | -10°C to +50°C | Derating above 45°C |
| Weight | 25 kg (55 lbs) | 2U rack-mount or floor stand |
| Certifications | CE, RoHS | Industrial grade |
Part 3 Advanced Built-in Protection Systems
The 12V 200A rectifier integrates four independent protection layers to ensure zero downtime in diamond electroplating. Use of arc-fault detection and real-time thermal limiting prevents the "thermal runaway" that destroys diamond coatings during a bath dry-out event.
1. Over-Voltage Protection (OVP): Independent crowbar circuit triggers at 14.5V, shunts output to ground, protects cathodic fixtures.
2. Over-Current / Short Circuit (OCP/SCP): Constant current mode at 215A, returns automatically within 200ms after load clear. No manual reset.
3. Over-Temperature Shutdown: Three thermocouples monitor the IGBT module, transformer, and output rectifier diodes. Shuts off at 85°C heat sink temperature.
4. Soft-Start & Inrush Limiter: Prevents massive current surge that disrupts electrodeposition nucleation on diamond seeds. Ramp-up time adjustable from 0.5 to 10 seconds.
Part 4 Target Industrial Applications
Primarily designed for diamond tool electroplating where a stable, pulse-friendly current directly determines diamond grit retention and cutting tool lifespan. Perfectly suitable for:
• Diamond Saw Blades, Wire Saws, Grinding Wheels electrodeposition (Ni-Co baths)
• Composite Electrodeposition: embedding diamond / CBN particles in continuous nickel or cobalt matrix for aerospace super-abrasive tools.
• Abrasive Tools Co-Deposition: intricate 3D shaped diamond tools for dental, stone, and construction industries, where current density localization matters.
• Alternative: gold & copper plating for high-frequency connectors, chemical milling tanks, and any precision electroforming requiring low ripple under 1%.
Part 5 Customization and Tailored Engineering Services
When you order from the IGBT rectifier manufacturer, you are not limited to the base model. GAOHUI’s factory in-house engineering team can adapt this unit to serve a wide voltage and current range. We build custom equipment for any specification: 1V to 1000V DC output, and 1A to 100,000A DC output. Input is AC (single or three-phase) or DC bus, output is always pure DC.
Customization modules available:
• Process Timer: set precise hour/minute/second duration for multi-layer deposition sequences.
• Multi-Stage Profile Control: programmable current ramp up, hold, pulse, and ramp down profiles. Example: 0 to 50A over 30 seconds, hold for 120 minutes, then pulse 12V at 10Hz for flash step.
• Ampere-Minute Integrator: total coulombs counter for plating thickness process control, with BCD or remote readout.
• Automatic Reverse Polarity (RPR): asymmetric AC with selectable forward/reverse time ratio for stress-free nickel deposits.
• Soft-Start: soft-start ramp already standard, but can be adjusted to 30 seconds for heat-sensitive baths.
Interfaces for smart factory integration:
• RS485 Modbus RTU for PLC/DCS integration (supplied as standard).
• Ethernet TCP/IP for remote dashboard monitoring.
• 4-20mA analog I/O for legacy controller compatibility.
• Pulse Functions 1-3000Hz adjustable: specifically useful for high-frequency (100-1000Hz) duty cycles that improve diamond particle embedding density.
Need a custom current voltage rectifier for your proprietary diamond slurry? Our engineers respond within 24 hours for custom builds. Download your spec sheet, or contact the GAOHUI support center for a free application review and quotation.
