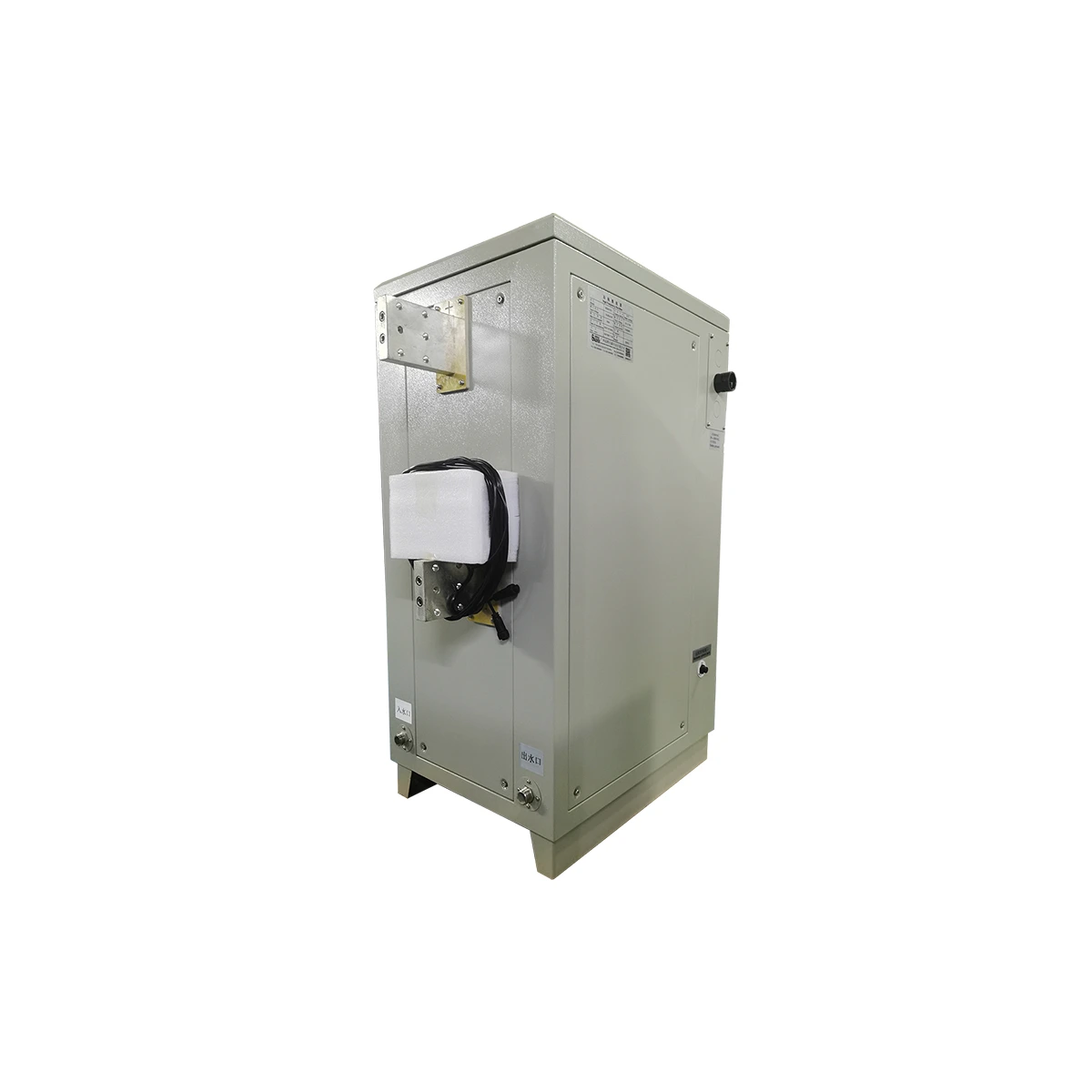

GAOHUI 12V 10000A High Current Fluoride Electrolysis Industrial IGBT Rectifier for HF Electrolysis

Part 1: Key Features & Engineering Highlights

– Engineered specifically for high current fluoride electrolysis, this GAOHUI rectifier delivers a stable 12V DC output at 10000A, ensuring optimal efficiency for hydrogen fluoride HF electrolysis and fluorine gas generation processes. As a leading industrial high frequency rectifier factory, we guarantee superior energy conversion with minimal ripple.
– The heavy-duty DC power supply price reflects its industrial-grade construction, featuring a robust IGBT inverter module that withstands continuous full-load operation. This custom current voltage rectifier supports 24/7 duty cycles essential for lithium hexafluorophosphate synthesis and PTFE raw material production.
– Integrated RS485 digital interface (Modbus RTU) enables seamless PLC integration for automated process control, a key requirement for modern electrolysis plants. The unit includes a multi-stage programmable profile controller for precise current ramping during electrolyte conditioning.
– Designed for water electrolysis applications, this rectifier converts AC grid power into stabilized DC with over 92% efficiency, reducing operational costs for hydrogen production. The amorphous core transformer and low-inductance bus bars minimize electromagnetic interference in sensitive chemical environments.
– Factory-direct custom capability allows voltage adjustment from 1V to 1000V and current from 1A to 100,000A, with optional digital process timer and ampere-minute integrator for batch process accountability. All units undergo 72-hour burn-in testing at full load before shipment.

Part 2: Technical Specifications Table

Part 3: Advanced Built-in Protection Systems

The GAOHUI rectifier incorporates a comprehensive protection suite to safeguard both the equipment and the electrolysis process. Overcurrent protection instantly trips at 110% rated current, while overvoltage protection clamps output at 13V DC to prevent cell damage. Thermal overload protection monitors IGBT junction temperature and reduces output if cooling capacity is compromised. Short-circuit protection activates within 1 millisecond, and phase-loss protection halts operation if any input phase drops. A ground fault detection system continuously monitors leakage current, automatically shutting down if insulation resistance falls below 1 megohm. The soft-start ramp-up function limits inrush current during initial power-up, extending component life and preventing electrode shock.

Part 4: Target Industrial Applications

This heavy-duty rectifier is purpose-built for high current fluoride electrolysis processes, including HF electrolysis for fluorine gas production, lithium hexafluorophosphate synthesis for battery electrolytes, and PTFE raw material manufacturing. It also excels in water electrolysis for hydrogen generation, chlor-alkali electrolysis for chlorine production, and electrowinning of reactive metals. Additional applications include hard anodizing of aluminum components in aerospace, precious metal plating (gold, platinum) for electronics, and electroforming of precision molds. The unit supports pulse electrolysis with adjustable duty cycle from 1-100% and frequency from 1-3000Hz, ideal for nanostructured surface finishing.

Part 5: Customization and Tailored Engineering Services

GAOHUI offers full customization for voltage (1V-1000V) and current (1A-100,000A) with AC input and DC output only. Optional functional modules include a digital process timer for timed batch operations, a multi-stage programmable profile controller with up to 10 segments for complex current/voltage ramping, and an ampere-minute integrator for precise charge tracking. The automatic reverse polarity module enables periodic electrode cleaning cycles, while the soft-start ramp-up feature prevents thermal shock. Control options include local push-button panel or HMI touch screen with remote monitoring via RS485 Modbus RTU, Ethernet TCP/IP, or 4-20mA analog signals. Pulse functions allow adjustment of duty cycle from 1-100% and frequency from 1-3000Hz for advanced electrochemistry. All units are CE, RoHS, and ISO 9001 certified, with a standard 18-month warranty and global technical support.
