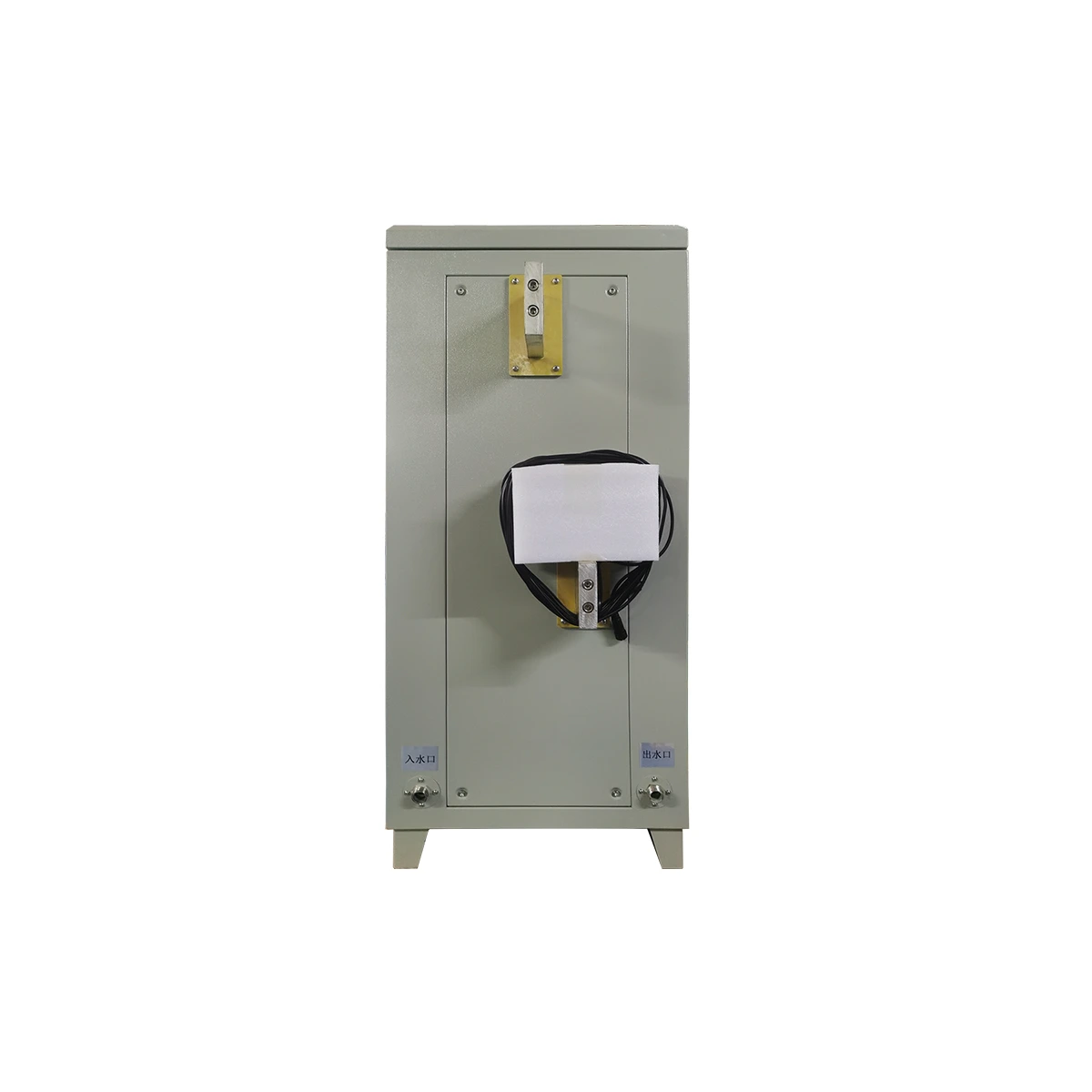

GAOHUI 12V 10000A Industrial High Frequency Rectifier for High Current Fluoride Electrolysis – IGBT DC Power Supply

Part 1: Key Features & Engineering Highlights
– Engineered specifically for high current fluoride electrolysis, this GAOHUI 12V 10000A rectifier converts AC grid power into stabilized DC output with >92% efficiency, reducing energy costs for continuous hydrogen production and chemical processing.
– As a leading IGBT rectifier manufacturer, we integrate microsecond-level fault response time and high-frequency switching technology to minimize ripple and ensure precise voltage/current regulation, critical for lithium hexafluorophosphate synthesis and fluorine gas generation.
– Designed for heavy-duty DC power supply price optimization, this unit features a robust water-cooled system and industrial-grade components, delivering reliable 10000A output without thermal derating in harsh electrochemical environments.
– Built for custom current voltage rectifier applications, the 12V DC output supports both constant voltage (CV) and constant current (CC) modes, enabling seamless adaptation to varying load conditions in hydrogen fluoride HF electrolysis and PTFE raw material production.
– The modular construction allows easy integration with existing plant automation via digital communication protocols, ensuring compatibility with process control systems for real-time monitoring and data logging.

Part 2: Technical Specifications Table

Part 3: Advanced Built-in Protection Systems
This industrial high frequency rectifier factory integrates comprehensive safety features to safeguard both the equipment and downstream processes. The system includes overvoltage protection (OVP), undervoltage lockout (UVLO), overcurrent protection (OCP) with automatic current foldback, short-circuit protection (SCP) with fast-acting IGBT shutdown, overtemperature protection (OTP) with thermal sensors on heat sinks and IGBT modules, and reverse polarity protection on the DC output. All protection circuits trigger within microseconds, preventing damage to electrolytic cells and ensuring continuous operation in high current fluoride electrolysis applications.

Part 4: Target Industrial Applications
– Hydrogen fluoride (HF) electrolysis for fluorine gas generation
– Lithium hexafluorophosphate (LiPF6) synthesis for battery electrolyte production
– PTFE (polytetrafluoroethylene) raw material manufacturing via fluoropolymer processes
– High current water electrolysis for green hydrogen production
– Chlor-alkali electrolysis for chlorine and caustic soda generation
– Electrowinning of non-ferrous metals (copper, zinc, nickel)
– Hard anodizing and surface treatment of aluminum alloys
– Precious metal electroplating (gold, silver, platinum) in PCB and jewelry manufacturing

Part 5: Customization and Tailored Engineering Services
Our GAOHUI factory offers full customization for rectifiers ranging from 1V to 1000V and 1A to 100,000A, with AC input and DC output only. We engineer custom functional modules to match your specific process requirements, including a Digital Process Timer for batch cycle control, Multi-Stage Programmable Profile Control for complex electrolysis sequences, an Ampere-Minute Integrator for precise charge tracking, Automatic Reverse Polarity for periodic cleaning or deposition reversal, and Soft-Start Ramp-Up to minimize inrush current stress. Control options include Local/Remote operation via Push-Button panels or HMI Touch Screen, with communication interfaces such as RS485 Modbus RTU, Ethernet TCP/IP, and 4-20mA analog signals. Additionally, we integrate Pulse Functions with adjustable duty cycle from 1% to 100% and frequency from 1Hz to 3000Hz, enabling pulse electrolysis for enhanced reaction kinetics and deposit quality. All systems are tested under full load before shipment to guarantee reliability.
