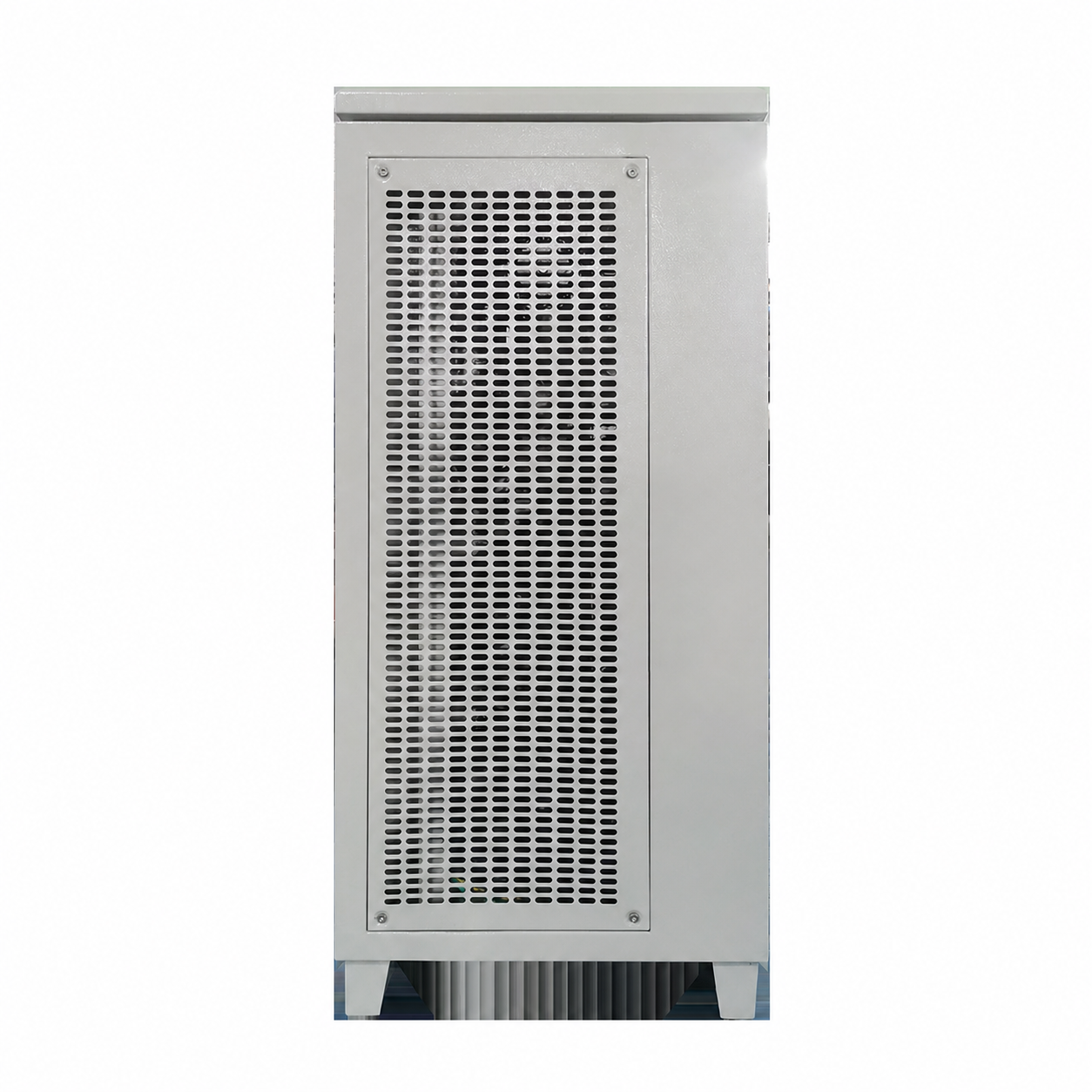

The 24V 2000A Copper Electrowinning Rectifier supplies 48 kW of adjustable DC power for copper recovery cells, hydrometallurgical skids and plant upgrades. Its high-current output is suited to parallel cathode area, while the 24V range can accommodate the loaded voltage of a cell group and its busbar connections.

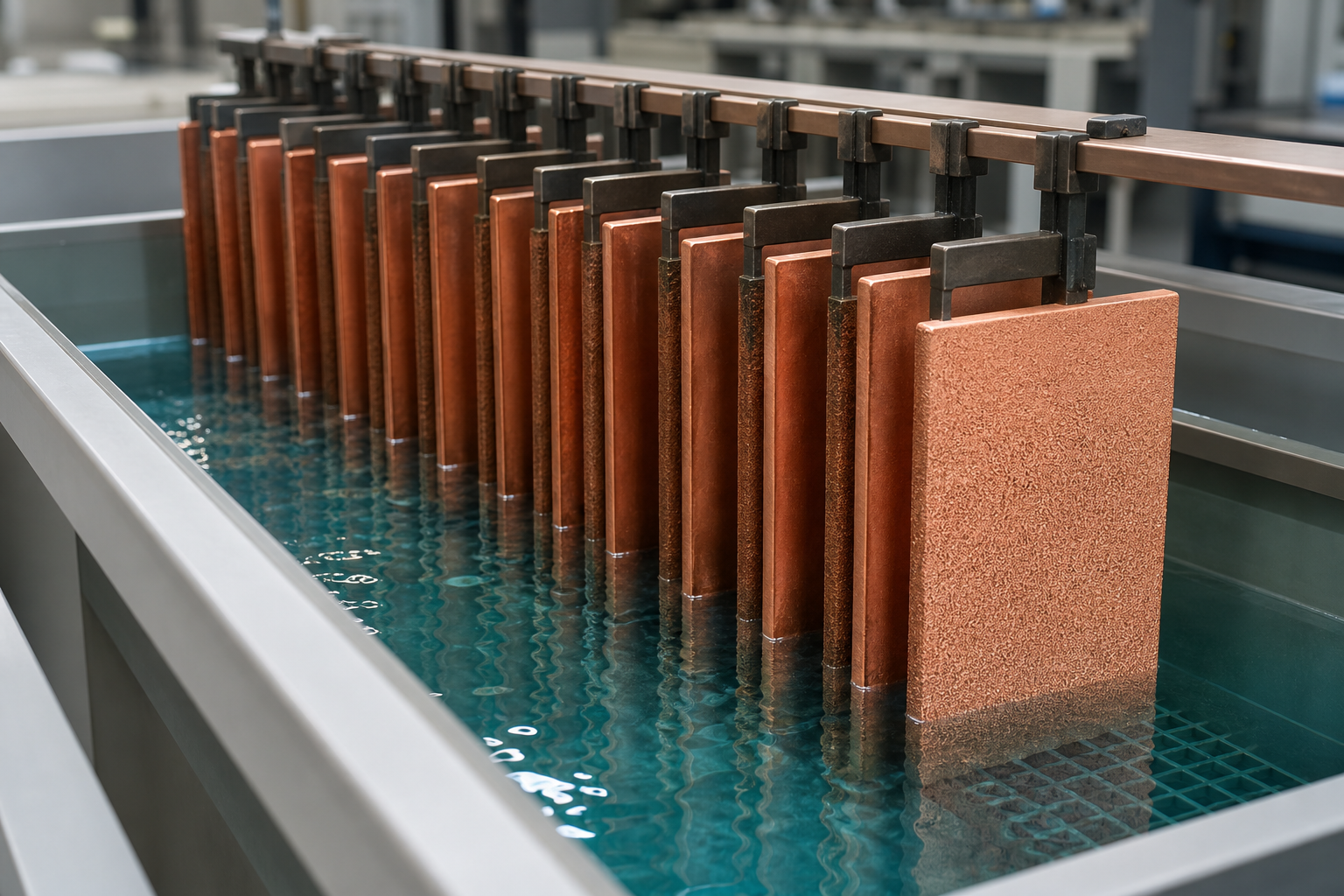

Turning dissolved copper into cathode product
In electrowinning, copper ions in solution are deposited at the cathode under controlled current. Stable electrical input supports a repeatable deposition rate and helps operators maintain the selected current density. Cathode quality and recovery efficiency also depend on copper concentration, acidity, impurities, temperature, circulation, additives, electrode spacing and short-circuit control.

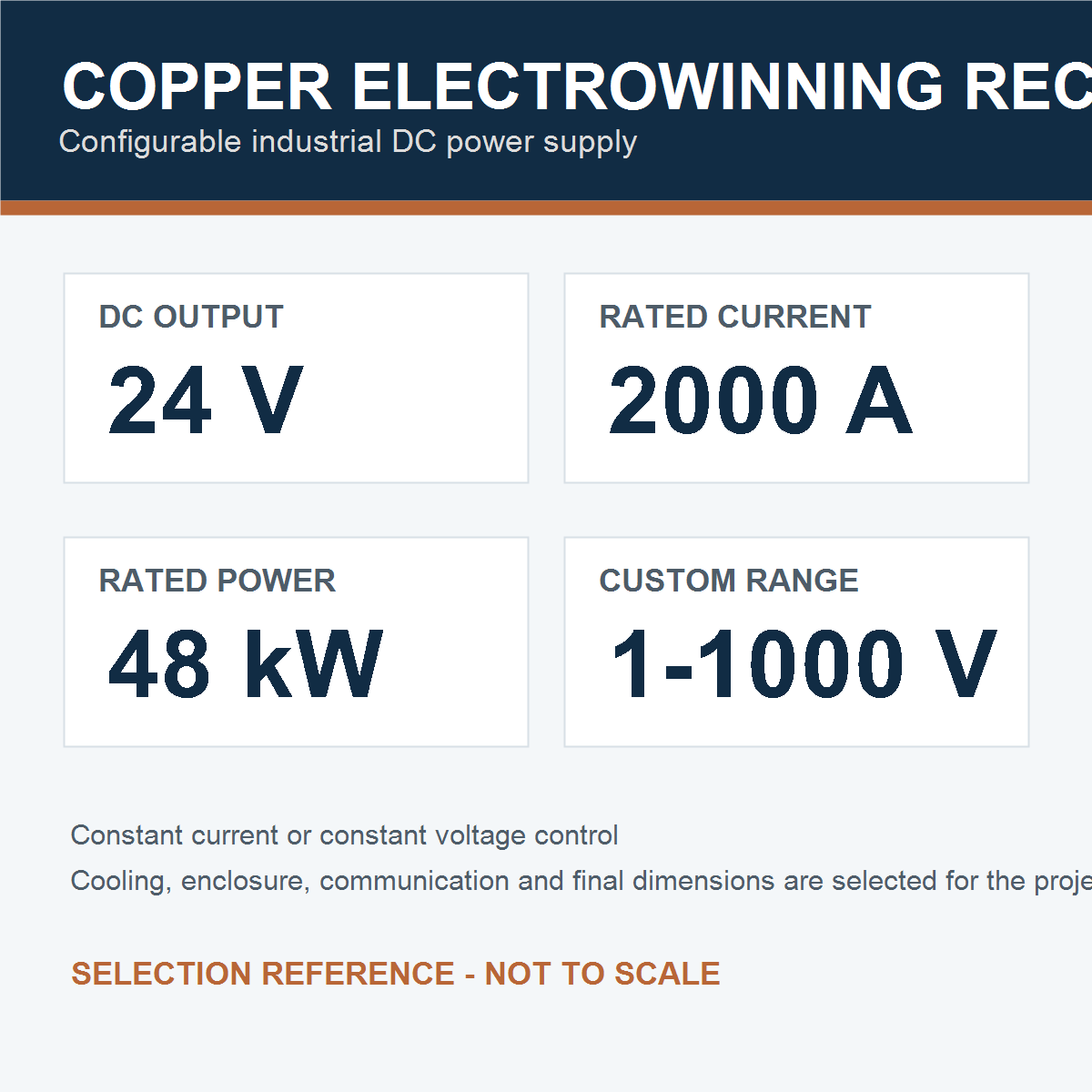

Output specification
| DC output | 24V, 2000A |
|---|---|
| Rated power | 48 kW |
| Control | Adjustable constant current or constant voltage |
| Cooling | Air or water cooling to suit duty and site utilities |
| Typical air-cooled cabinet class | Approx. W510 × D580 × H1160 mm |
| Interfaces | Local, remote, PLC and RS485 options |
Two ways to size the current
When current density and total active cathode area are known, current is calculated from their product. When production capacity is the starting point, the required current can be estimated from Faraday’s law and then adjusted for actual current efficiency and operating hours. Both methods should be compared before selecting the 2000A ceiling.
Voltage and cell connection
Series-connected cells add voltage, while parallel branches add current. A useful enquiry therefore includes the number of cells, connection diagram, working voltage per cell, busbar distance and maximum acceptable voltage drop. The 24V output should cover the complete loaded circuit rather than only the nominal electrochemical voltage.
Production controls
Soft current ramping, ampere-hour accumulation, shift records, remote setpoints, alarms, PLC communication and cooling interlocks can be configured. Custom output from 1–1000V and 1–100,000A is available for metal recovery applications.
Send solution composition, copper concentration, impurities, cathode area, current density, cell voltage, connection, target production and operating schedule. Browse electrowinning and metal recovery rectifiers, compare industrial rectifiers, or request a copper recovery configuration.
