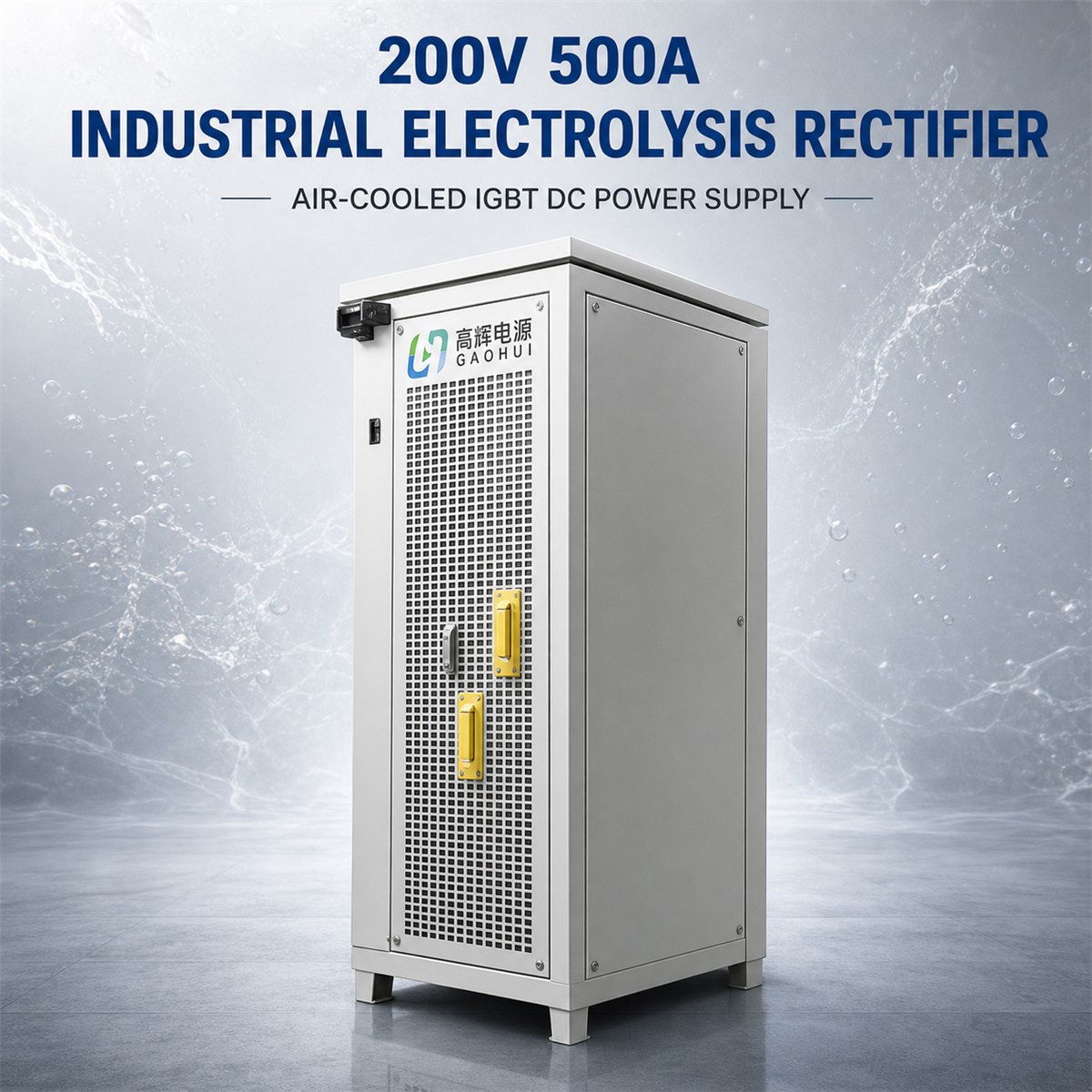

The 200V 500A Industrial Electrolysis Rectifier provides 100 kW of adjustable DC power for electrochemical production, separation and treatment equipment.
A flexible source for electrolytic cells
Industrial electrolysis covers different electrode materials, electrolytes and cell arrangements. Stable current or voltage control gives operators a repeatable electrical working point as temperature, conductivity and electrode condition change. The final configuration is matched to the actual cell rather than selected from voltage and current alone.
Rated configuration
| DC output | 200V, 500A |
|---|---|
| Rated power | 100 kW |
| Control modes | Constant current and constant voltage |
| Cooling | Water cooling for continuous duty |
| Interfaces | PLC, analog I/O, RS485 and remote HMI |
| Custom range | 1–1000V and 1–100,000A |
Data needed for selection
Provide the number and connection of cells, normal and maximum loaded voltage, target current, duty cycle and process sequence. Incoming AC power, cooling-water conditions and installation environment also shape the design.
Integration options
Soft start, programmable stages, remote setpoints, output feedback, production totals and external interlocks can connect the rectifier to the complete system.
Explore industrial electrolysis rectifiers, browse DC rectifier categories, or send your electrolytic-cell data.
