Executive Summary

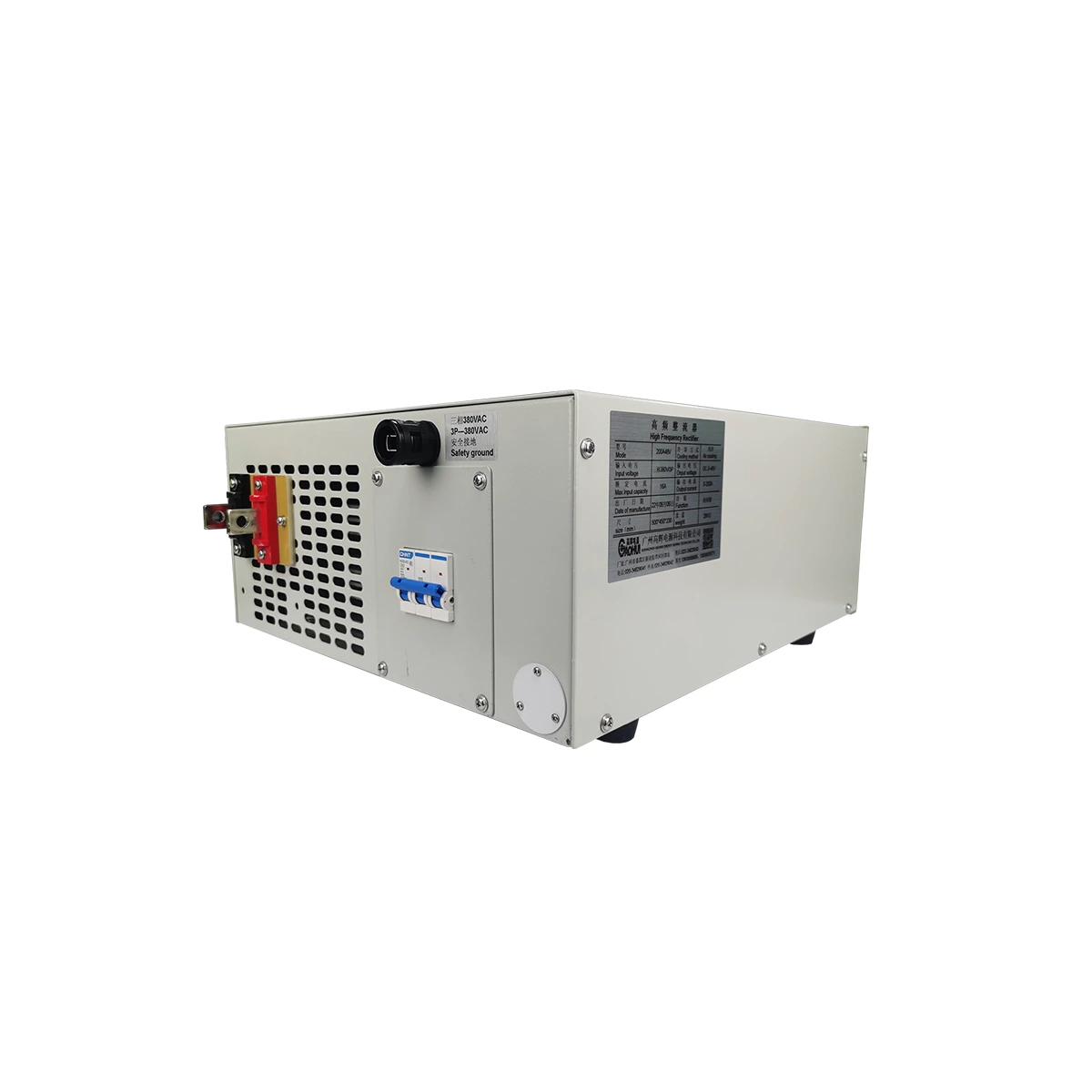

This 12V 800A output rectifier is engineered exclusively for high-volume zinc plating operations, including acid zinc, alkaline cyan-free zinc, and galvanized wire coating processes. Designed for endurance, it operates as two independent stand-alone machines from a single three-phase AC 380V ± 10% 60Hz input, delivering precise DC output for consistent deposition quality. Backed by an industrial high frequency rectifier factory, this system provides the reliability and throughput demanded by modern surface treatment lines. Request a heavy-duty DC power supply price to compare the long-term value against standard transformer-based units.
Part 1 Key Features & Engineering Highlights
Built around advanced IGBT switching technology, this unit delivers stable low-ripple DC output crucial for brightener systems and uniform zinc coating thickness. The high-frequency design reduces weight and size by over 60% compared to traditional SCR units, simplifying rack and bussing installation. Two completely independent 800A channels allow separate bath control for dual tank lines or redundant plating paths. True parallel operation capability up to 1600A for single large barrel or hoist lines without derating. Comprehensive digital control includes multi-stage current ramping and automatic voltage limit to protect thin wire or delicate part geometries.
Part 2 Technical Specifications
| Input Voltage | Three-Phase AC 380V ± 10%, 60Hz (415V/440V/480V options) |
| Output Voltage Range | 0-12V (adjustable on each independent machine) |
| Output Current Range | 0-800A per module, 1600A in parallel |
| Module Configuration | Two independent stand-alone rectifiers in single enclosure |
| Output Ripple | Less than 1% RMS at full load (ensures brightener efficiency) |
| Cooling Method | Force-air cooled with dual redundant fans |
| User Interface | Digital LED display, tactile switch panel |
Part 3 Advanced Built-in Protection Systems
This rectifier integrates survival-tier protection for continuous operation. Phase loss and input imbalance protection stops operation before main capacitor bank stress. Output short-circuit protection responds in under 10 microseconds to prevent work piece burning. Over-temperature derating engages before automatic shutdown, reducing nuisance trips during summer heat. All power semiconductors are protected by individual fusing. The control board is opto-isolated from main power, allowing safe remote operation.
Part 4 Target Industrial Applications
Specifically designed for high-current-density zinc plating tanks: barrel lines for fasteners, rack lines for automotive brackets, and continuous wire coating for galvanized steel. The low voltage meets typical 6-12V bath chemistry needs for cyanide-free alkaline zinc and bright acid zinc. Also suitable for zinc-iron and zinc-nickel alloy processes requiring precise current density control. The 800A output supports commercial tank volumes of 1000-2000 liters per channel with standard 30-40 ASF operating conditions. Upgrade from an older SCR supply to reduce energy waste and improve coating consistency.
Part 5 Customization and Tailored Engineering Services
As a dedicated IGBT rectifier manufacturer, we deliver any custom current voltage rectifier for your unique line. Voltage range 1V-1000V, current 1A-100,000A, with same AC input and pure DC output architecture. We embed process modules including Programmable Multi-Stage Profile Control for ramp/hold sequences, Ampere-Minute Integrator/Totalizer for bath replenishment dosing, Automatic Reverse Polarity for periodic part cleaning, and Soft-Start ramping to prevent current spike damage. Interface via RS485 Modbus RTU, Ethernet TCP/IP, or analog 4-20mA for PLC integration. Pulse functions available from 1-3000Hz adjustable for pulse plating optimization, with duty cycle programmable per process recipe. We also provide complete documentation, CE marking, and a 12-month global warranty.
