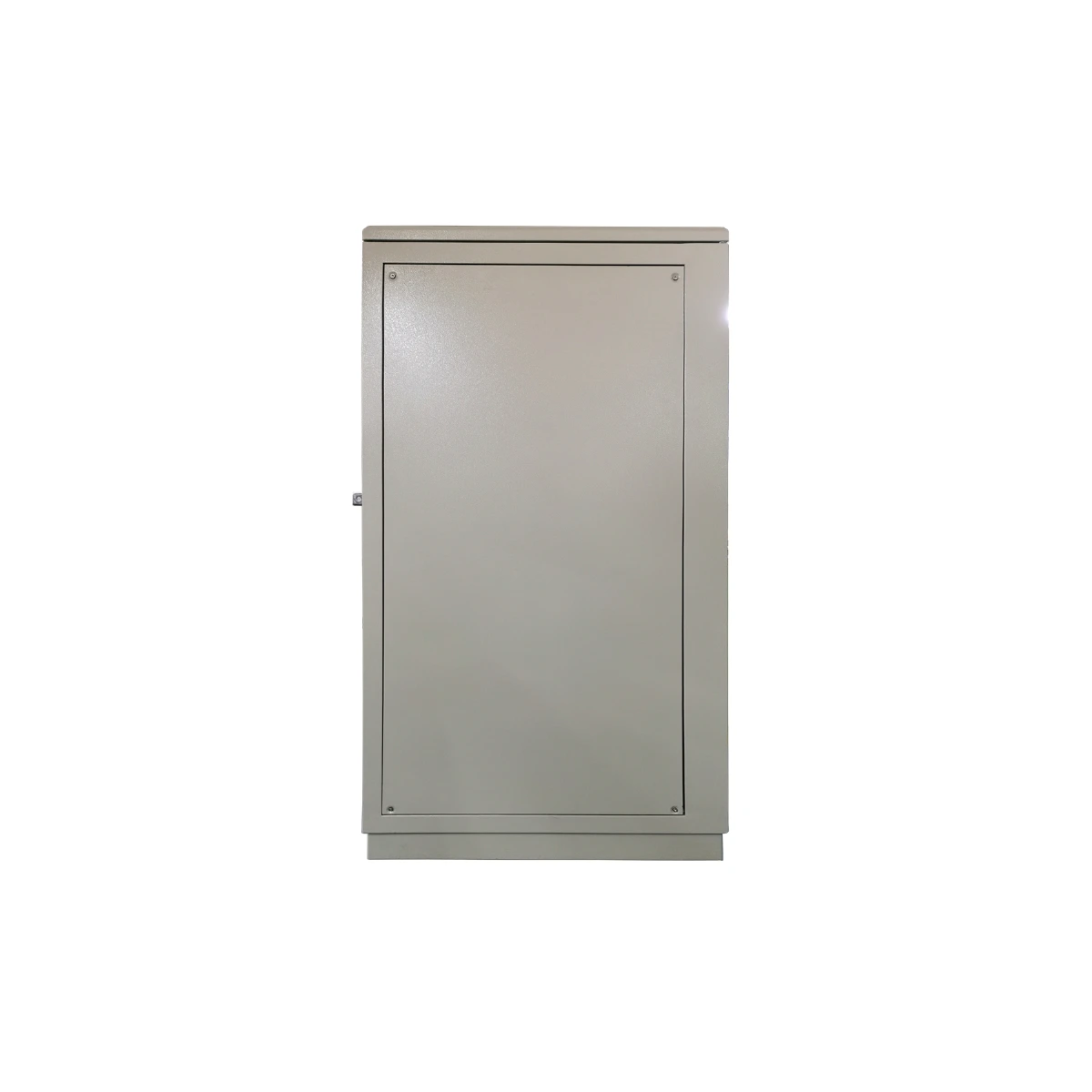

Water Electrolysis for Hydrogen – 30V 5000A Industrial High Frequency Rectifier Factory Grade DC Power Supply

Executive Summary
This 30V 5000A power supply is engineered specifically for the rigorous demands of alkaline and PEM electrolyzer stacks, providing the precise, ripple-free DC output required for efficient hydrogen production. Designed and built by GAOHUI, a dedicated IGBT rectifier manufacturer, this unit transforms high-volume water electrolysis into a reliable, controllable process. As a complete system, it integrates seamlessly with your electrolyzer, allowing you to connect your water source and power input to start generating green hydrogen immediately. The system’s sole emission is pure oxygen, making it a truly zero-emission driver for industrial hydrogen plants.
Part 1 Key Features & Engineering Highlights
High-Efficiency IGBT Technology: The core of this rectifier utilizes advanced IGBT modules, delivering conversion efficiencies exceeding 93%. This directly reduces operational costs and heat dissipation, critical for continuous hydrogen production runs.
Ultra-Low Ripple Current: Electrolyzer stack performance and longevity are highly susceptible to current ripple. This power supply achieves ripple factors below 1%, preventing unnecessary heat stress on the electrolyzer cell membranes and ensuring maximum hydrogen output per kWh.
Constant Current & Constant Voltage Control: Supports automatic crossover between CC and CV modes, providing stable regulation for the dynamic load behavior of an electrolyzer stack, especially during start-up and shutdown phases.
Robust Mechanical Construction: Built in a heavy-duty industrial chassis rated for challenging environments. This unit is ready for integration into any industrial high frequency rectifier factory standard workflow, offering superior electrical isolation and thermal management.
Part 2 Technical Specifications Table
| Parameter | Specification |
| — | — |
| Input Voltage | 380V AC ±10% (3 Phase) / Custom Input Options Available |
| Output Voltage | 30V (Adjustable Range: 1V – 30V) |
| Output Current | 5000A (Adjustable Range: 0A – 5000A) |
| Output Mode | DC (Constant Current / Constant Voltage) |
| Ripple Factor | 93% (at Rated Load) |
| Cooling Method | Forced Air / Deionized Water (Optional) |
| Display | Digital Touch Screen (Voltage, Current, Power, Cumulative) |
| Protection Grade | IP54 (Chassis) |
Part 3 Advanced Built-in Protection Systems
System integrity is non-negotiable for hydrogen production safety. This 30V 5000A unit is equipped with multi-layered protection that triggers before component stress occurs. Features include automatic over-current shutdown (OCP), over-voltage clamping (OVP), and short-circuit protection (SCP) on the output bus. Thermal overload protection actively monitors IGBT junction temperatures, dynamically adjusting fan speed or initiating a hard stop. Additionally, phase loss and input voltage anomaly protection safeguard the unit against unstable grid conditions common in renewable energy sites.
Part 4 Target Industrial Applications
Primary Application: PEM & Alkaline Water Electrolysis for Green Hydrogen Production. This rectifier is the high-efficiency workhorse for modules from 0.5 Nm³/h to 10 Nm³/h.
Powering Electrolyzer Stacks: Directly powers multi-cell electrolyzer stacks requiring precise, regulated current to maintain chemical reaction stability.
Renewable Energy Integration: Designed to pair flawlessly with solar, wind, and tidal power sources, acting as a front-end converter for surplus energy utilization in hydrogen generation.
Industrial Gas Generation: Suitable for on-site hydrogen production for manufacturing, chemical processing, or metal annealing applications.
Part 5 Customization and Tailored Engineering Services
As an IGBT rectifier manufacturer, GAOHUI recognizes that no two electrolysis projects are identical. We offer deep customization across our entire line. For this model, we can adapt the output range from 1V to 1000V and 1A to 100,000A to match your specific stack configuration. Our engineering team can integrate control modules including Process Timers for batch sequencing, Multi-Stage Profile Control for complex current ramps, and Ampere-Minute Integrators for exact dosing. For advanced research, options include Automatic Reverse Polarity for electrode conditioning and Soft-Start modules to prolong stack life. Communication interfaces like RS485 Modbus RTU, Ethernet/IP, and 4-20mA analog control are standard. For specialized processing, we offer Pulse Functions adjustable from 1Hz to 3000Hz. Contact us to configure your custom current voltage rectifier today.
