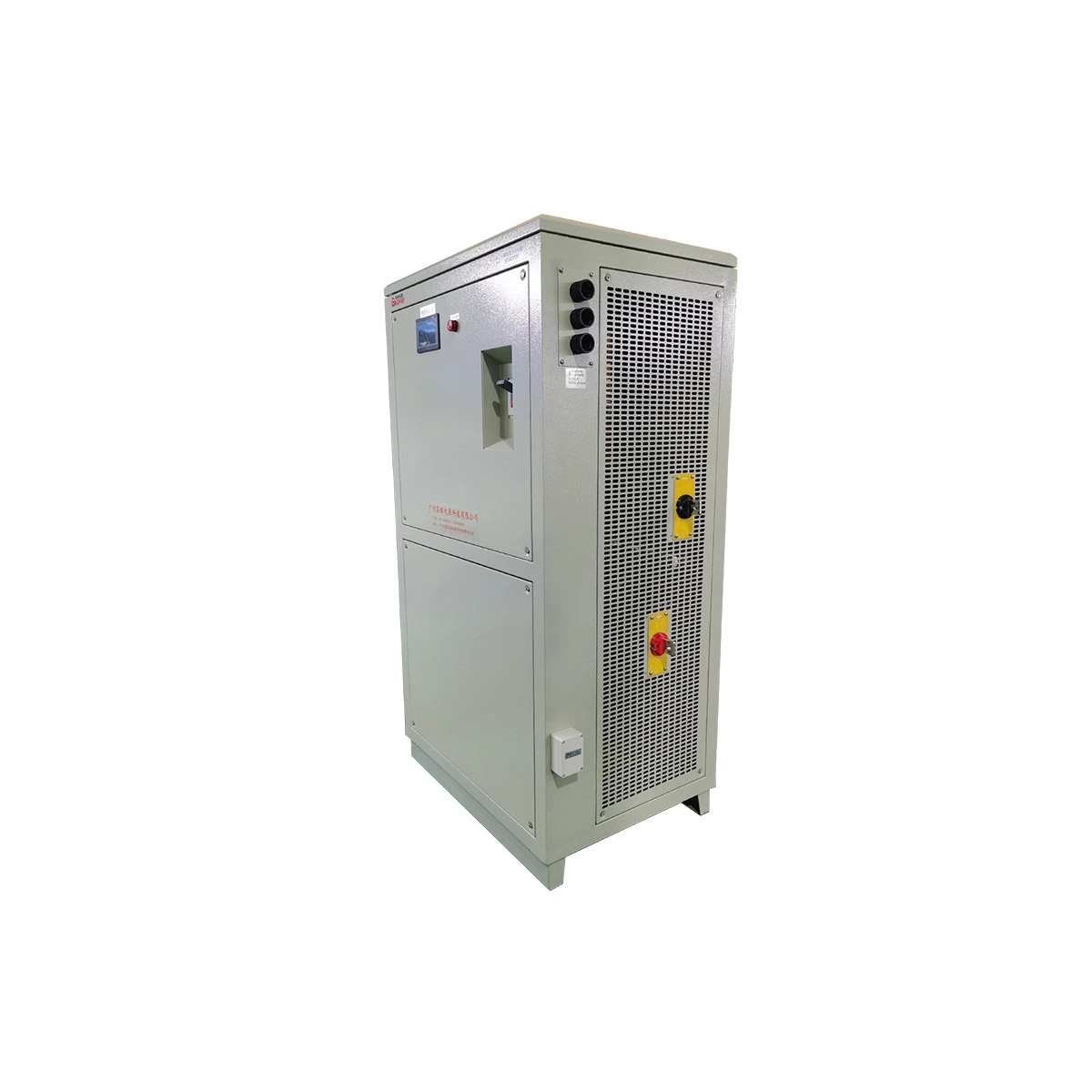

Water Electrolysis for Hydrogen – 30V 5000A Industrial-Grade Digital IGBT Rectifier

Executive Summary
This 30V 5000A unit is not a hobbyist toy; it is a heavy-rated, digitally controlled powerhouse designed to run 24/7, delivering precise voltage and current to maximize hydrogen evolution efficiency. As a specialized IGBT rectifier manufacturer, we engineer this system specifically for alkaline and PEM electrolyzer stacks, ensuring ultra-low ripple and high dynamic response. Whether sourcing from an industrial high frequency rectifier factory or evaluating a heavy-duty DC power supply price, this unit represents the optimal balance of capital expenditure and operational reliability for green hydrogen production.
Part 1 Key Features & Engineering Highlights
– High Frequency IGBT Technology: Utilizes advanced IGBT switching at 20 kHz, reducing transformer size and improving efficiency above 95% at full load compared to traditional thyristor rectifiers.
– Ultra-Low Ripple Output: Ripple factor less than 1% RMS, critical for protecting PEM electrolyzer membranes and reducing electrode degradation in alkaline water electrolysis.
– Digital Current and Voltage Regulation: Dual-loop PID control with 0.1% setpoint accuracy ensures stable hydrogen output regardless of grid fluctuations or stack temperature changes.
– Sealed Liquid-Cooled Design: Integrated aluminum heat sink with deionized water circulation allows continuous operation at ambient temperatures up to 50°C, ideal for industrial high frequency rectifier factory environments.
– Industrial Communication Interface: Standard RS485 Modbus RTU and Ethernet TCP/IP for seamless integration with plant SCADA and hydrogen production management systems.
– Scalable Power Density: Modular construction enables parallel operation of multiple units up to 100 kA, supporting future hydrogen production capacity expansion.
Part 2 Technical Specifications Table
| Parameter | Specification |
|——————————–|————————————–|
| AC Input Voltage | 380V / 480V ±15% Three-Phase |
| AC Input Frequency | 50/60 Hz ±5% |
| DC Output Voltage Range | 5V – 30V continuously adjustable |
| DC Output Current Range | 100A – 5000A continuously adjustable |
| Rated Output Power | 150 kW |
| Voltage Regulation Accuracy | ±0.5% of full scale |
| Current Regulation Accuracy | ±0.5% of full scale |
| Output Ripple (RMS) | ≤1% at rated current |
| Efficiency (At Full Load) | ≥95% |
| Power Factor | ≥0.92 |
| Cooling Method | Forced liquid cooling (deionized water) |
| Protection Class | IP54 (Control Cabinet) / IP20 (Rectifier Module) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | ≤90% (Non-condensing) |
| Communication Protocols | RS485 Modbus RTU, Ethernet TCP/IP, 4-20mA analog interface |
| Compliance | CE, UL 508, IEC 62040 |
| Weight | Approximately 1200 kg |
| Dimensions (W x D x H) | 1800mm x 800mm x 2000mm |
Part 3 Advanced Built-In Protection Systems
This rectifier incorporates a multi-layered protection suite to safeguard your electrolyzer investment. Overvoltage and overcurrent rapid shutdown within 5 milliseconds prevents stack damage during grid transients. Input phase-loss detection and automatic shutdown protect upstream transformers. Real-time cooling loop temperature monitoring and flow rate sensors trigger alarm thresholds before thermal runaway conditions occur. Ground fault detection isolates the DC output from chassis ground, eliminating hydrogen explosion risks in alkaline water electrolysis environments. All protective actions are logged with time stamps for audit and maintenance analysis.
Part 4 Target Industrial Applications
Primary application: Power supply for alkaline water electrolysis stacks in green hydrogen production plants, delivering stable 30V DC at full current for continuous gas evolution. Secondary uses include PEM electrolyzer stack testing stations where precise voltage control and ripple suppression are critical for membrane lifespan. Additionally applicable to industrial electro-winning processes, metal recovery, and chlor-alkali production requiring controlled high-current DC output. The unit also serves as a reliable DC power source for laboratory-scale electrolysis research and pilot plant development.
Part 5 Customization and Tailored Engineering Services
