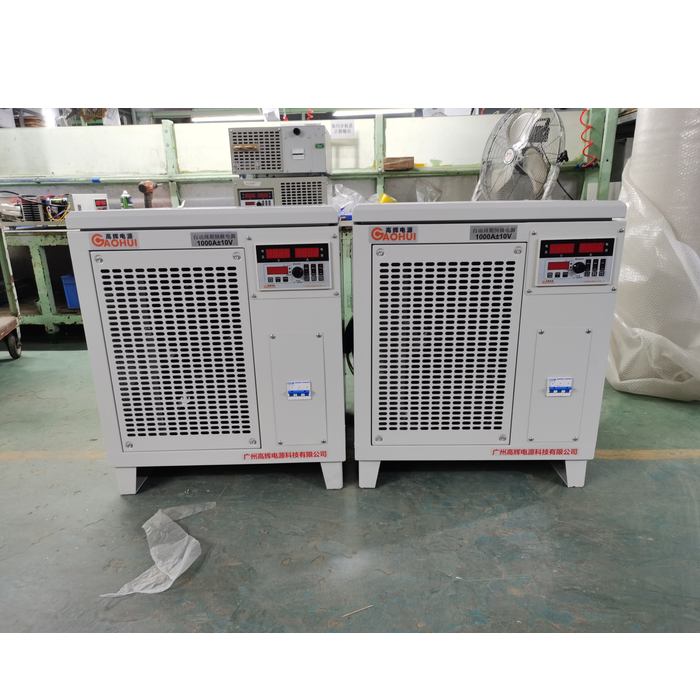

The Industrial Reversing DC Power Supply is a unidirectional DC power supply intended for industrial polarity-reversing DC process projects. Its legacy title does not state a complete DC rating, so voltage and current require engineering confirmation before quotation.
Published Rating and Electrical Boundary
| Rated DC output | Not stated in the legacy page; engineering confirmation required |
|---|---|
| Application | industrial polarity-reversing DC process |
| Regulation | Constant-current or constant-voltage main mode, selected for the confirmed process |
| AC input | not assigned from the legacy title; engineering confirmation is required together with the final DC rating. |
This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.
Application and Selection
This page applies to a project requiring confirmed forward and reverse DC stages Define forward and reverse voltage/current, timing, dead time, ramp behavior and whether both directions use equal ratings. Confirm the load response in each polarity and the required switching sequence.
Reversing is an optional engineered function and is not equivalent to regenerative four-quadrant operation.
Working-point focus: the nameplate rating is an available ceiling, not a recommended operating recipe. The normal working current and voltage must come from the validated process window and actual load.
Information Required for Selection
- process and load
- forward voltage/current
- reverse voltage/current
- forward/reverse timing
- dead time and final polarity
- ramp and interlocks
- duty and cooling
- operator or line-control interface
Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.
Configuration Boundary
The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.
Frequently Asked Questions
Is the rated current the normal process current?
No. The rating is the product ceiling; the working setpoint must follow the validated process window and actual load.
Can the process name determine the final voltage?
No. Loaded voltage depends on chemistry or load behavior, spacing, contacts, conductors and the production arrangement.
Are pulse, reversal and communications included?
Only when they are written into the confirmed configuration. They are not assumed from the product title.
Review related options in Industrial Rectifiers & DC Power Supplies, or contact Gao Hui with the selection data above.
