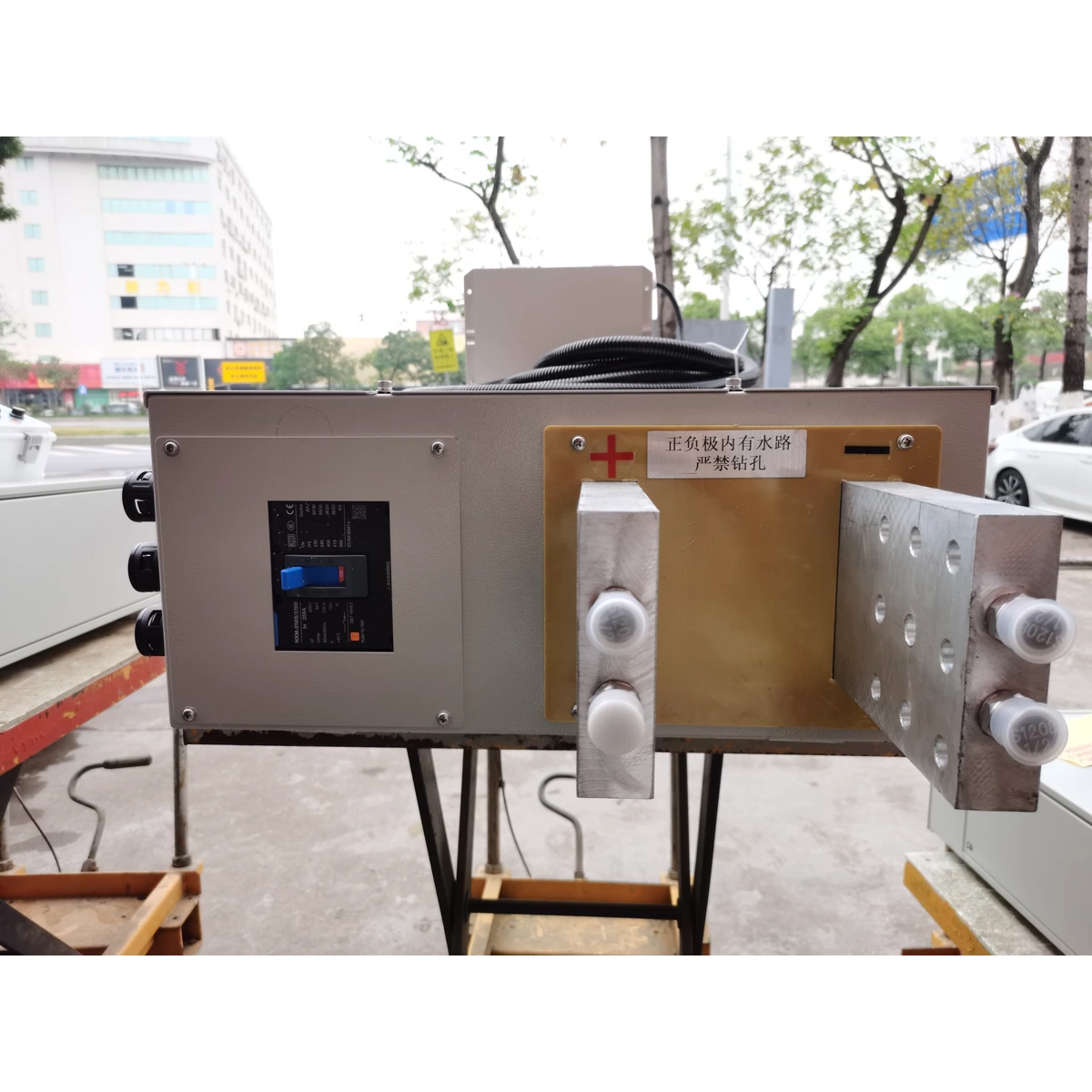

Rectifier for Hard Chrome Plating (24V 3000A with Clean DC Output)

Industrial platers know the difference between a good chrome layer and a rejected part often lies in the ripple content and voltage stability of their power source. This 3000A rectifier is engineered for the specific demands of hard chrome deposition: thick layers, long dwell times, and zero tolerance for spike-damaged deposits. Designed around efficient IGBT technology, this unit delivers the heavy-duty DC power supply price/performance ratio required for continuous 24/7 industrial operation.
Part 1 Key Features & Engineering Highlights
– industrial high frequency rectifier factory Construction: High-frequency IGBT topology ensures a pure DC output waveform. This eliminates the common voltage spikes found in older tap-switch or SCR designs, preventing nodular growth and poor adhesion in thick chrome applications. You get a smoother, denser deposit every time.
– Extreme Current and Voltage Consistency: Rigorous closed-loop control maintains output at 24V 3000A within +/- 0.5% across the entire operating range. No drift, no droop, even when the bath temperature rises.
– Heavy-Duty Thermal Management: High-efficiency forced-air cooling system with oversized aluminum heat sinks and redundant fan arrays. This rectifier can run at full load in ambient temperatures up to 50°C without derating.
– Modular Power Architecture: Redundant power modules ensure that if a single module fails, the system continues to operate at reduced capacity (not a total shutdown). This is critical for long hard chrome cycles where downtime equals scrapped parts.
Part 2 Technical Specifications Table
| Parameter | Specification |
| :— | :— |
| AC Input Voltage | 3-Phase, 380V / 415V / 480V ±10% (50/60 Hz) |
| DC Output Voltage (Rated) | 24 Volts |
| DC Output Current (Rated) | 3000 Amperes |
| Output Type | Steady DC (No Reverse Pulse on standard config) |
| Ripple (Full Load) | 90% (at rated load) |
| Cooling Method | Forced Air Cooling |
| Protection Class | IP-21 (Indoor industrial use) |
| Cabinet Material | 2.0mm Cold Rolled Steel with Powder Coating |
| Operating Temperature | -10°C to +50°C |
| Unit Weight | Approx. 280-320 kg |
Part 3 Advanced Built-in Protection Systems
Your investment and your parts are protected by a comprehensive suite of safeguards that operate without manual intervention:
– Phase Loss / Phase Sequence Protection: Prevents startup if input power is faulty.
– Over-Temperature Protection: Automatic shutdown of IGBT modules and rectifier output with audible alarm.
– Current Limit (Constant Current Mode): Prevents over-current excursions during part entry or bath shorting.
– Short Circuit Protection: Instantaneous shutdown (microsecond response time) to protect the rectifier and workpiece.
– Over-Voltage Protection: Ensures the output never exceeds a safe threshold for your plating bath.
– Soft-Start Circuitry: Eliminates the inrush current on power-up, extending the life of main components.
– Overload Protection with Automatic Recovery: Adjusts output to safe levels if current demand spikes, then attempts to return to set point.
Part 4 Target Industrial Applications
This rectifier is purpose-built for heavy-duty DC plating operations, including: Hard chrome plating of hydraulic cylinders (shafts, rods, rams), thick chrome reclamation on industrial rollers, landing gear components, and large dies/molds. It is equally effective for bright nickel, heavy copper build-up, and specialized anodizing or electroforming processes that require a pure DC output and high current density capability.
Part 5 Customization and Tailored Engineering Services
We operate as a IGBT rectifier manufacturer with deep customization. Power specifications are fully flexible: output voltage from 1V to 1000V and output current from 1A to 100,000A. Input is AC (single or three-phase), output is DC. Tell us your bath chemistry and part geometry, and we engineer the solution. Our factory supports advanced modules including:
– Process Timer and Multi-Stage Profile Control for automated ampere-minutes.
– Ampere-Minute Integrator for precise thickness control.
– Automatic Reverse Polarity (ARP) for de-chroming or specialized cycles.
– Soft-Start / Soft-Stop to prevent thermal shock.
– Remote Interfaces: RS485 Modbus RTU, Ethernet/IP, 4-20mA analog control.
– Pulse Function: Adjustable frequency from 1 Hz to 3000 Hz for specific pulse-plating applications.
– We are your custom current voltage rectifier partner for specialized industrial lines.
