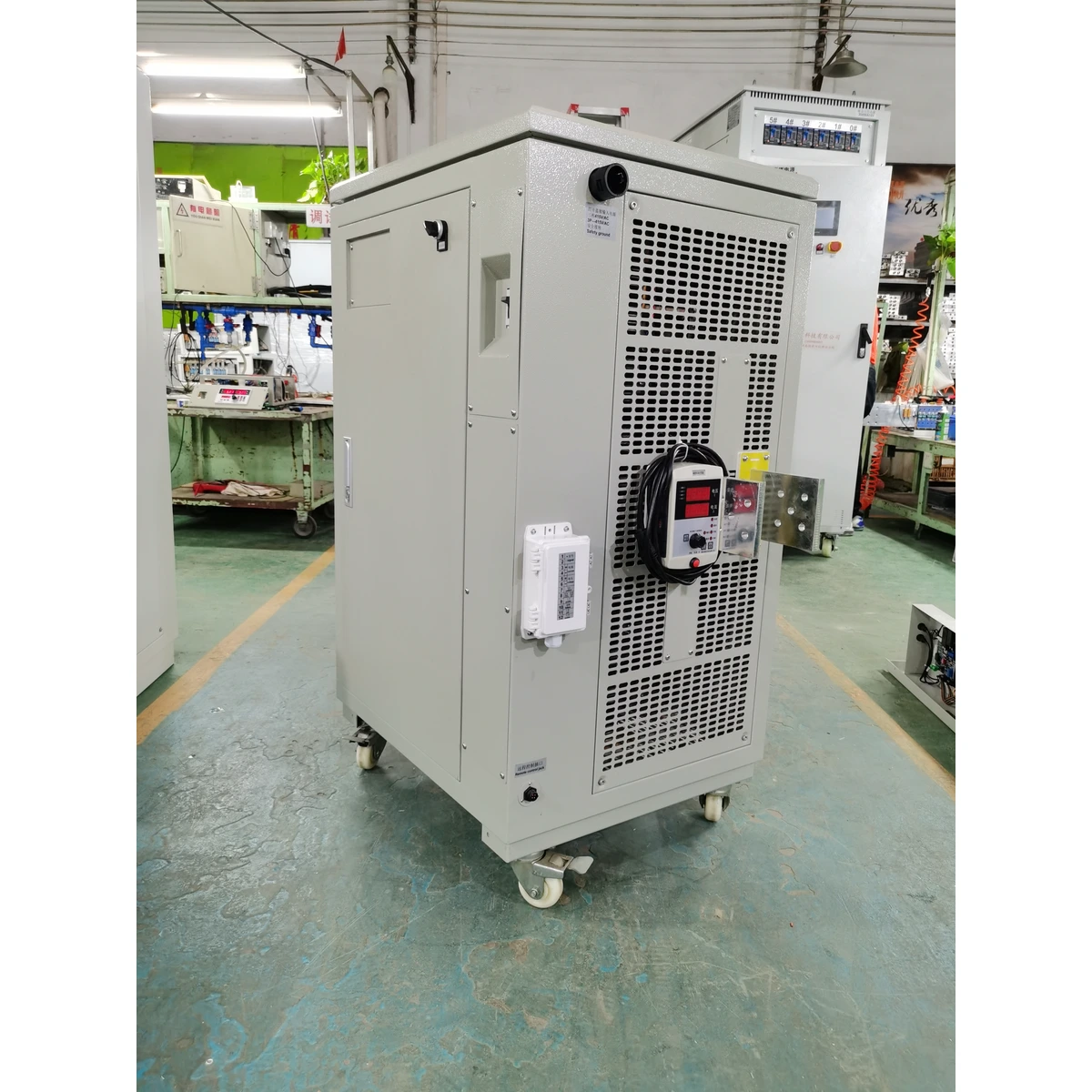

The 24V 4000A DC Power Supply for Electrolysis is a unidirectional DC power supply rated at 24 V and 4000 A for industrial electrochemical production projects. The published rating defines the available DC envelope; it does not replace process calculations or establish the normal operating setpoint.
Published Rating and Electrical Boundary
| Rated DC output | 24 V DC, 4000 A DC |
|---|---|
| Application | industrial electrochemical production |
| Regulation | Constant-current or constant-voltage main mode, selected for the confirmed process |
| AC input | AC 380 V or 415 V. Final phase, frequency and site conditions must be confirmed. |
This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.
Application and Selection
This page applies to a defined electrolysis or molten-salt cell within the company AC-to-DC technical boundary Select current and voltage from the cell design, chemistry, electrode area, cell count, process curve and verified production data. Use the cell supplier’s working/maximum voltage and connection topology; do not infer values from the material name.
Fluoride, molten-salt and rare-earth processes have distinct chemistry, temperature, gas and materials risks and require engineering review.
Production-window focus: size against the credible maximum load while preserving useful adjustment through normal production. Minimum, normal and maximum conditions should be supplied together.
Information Required for Selection
- exact product and electrolysis route
- cell chemistry and temperature
- electrode materials and area
- cell count and connection
- working and maximum voltage/current
- production target
- gas, corrosion and safety systems
- duty, cooling and site interface
Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.
Configuration Boundary
The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.
Frequently Asked Questions
Is the rated current the normal process current?
No. The rating is the product ceiling; the working setpoint must follow the validated process window and actual load.
Can the process name determine the final voltage?
No. Loaded voltage depends on chemistry or load behavior, spacing, contacts, conductors and the production arrangement.
Are pulse, reversal and communications included?
Only when they are written into the confirmed configuration. They are not assumed from the product title.
Review related options in Electrowinning & Metal Recovery Rectifiers, or contact Gao Hui with the selection data above.
