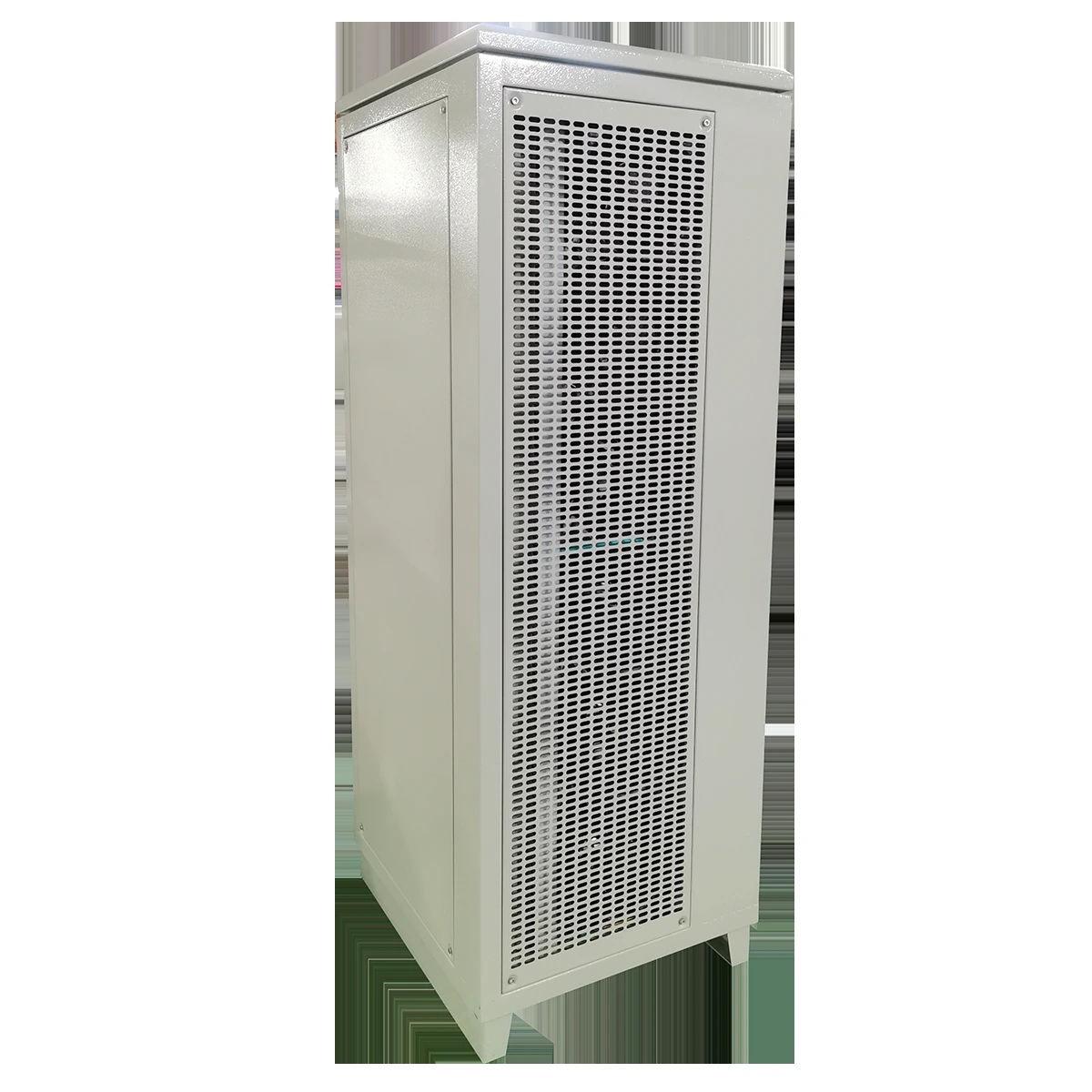

Industrial-Grade Unipolar Pulse Anodizing (750V 200A) for Plasma Electrolytic Oxidation

Heavy Duty DC Power Supply Price performance meets unmatched engineering precision in this 150kW system purpose-built for Plasma Electrolytic Oxidation. Unlike conventional anodizing rectifiers that struggle with arc suppression and coating uniformity, this unit delivers a tightly regulated, programmable pulsed DC waveform optimized for ceramic layer formation on lightweight alloys. The architecture employs a closed-loop control architecture that monitors real-time voltage and current feedback, enabling stable coating conditions even under dynamic load shifts from bubbling electrolytes. As an industrial high frequency rectifier factory, we have engineered this rectifier to handle the extreme dielectric breakdown events inherent to the PEO process, ensuring repeatable results batch after batch.
Part 1 Key Features & Engineering Highlights
Advanced IGBT Switching Topology
Leveraging high-frequency IGBT modules, this power supply achieves low ripple output and rapid transient response essential for micro-arc oxidation. The unipolar pulse design enables precise energy delivery per pulse, directly influencing coating thickness and porosity.
Programmable Pulse Functions
Operators can adjust pulse frequency from 1Hz to 3000Hz and duty cycle parameters via the intuitive HMI. This flexibility allows fine-tuning of the anodizing conditions for aluminum, titanium, magnesium, and their alloys, directly improving wear resistance and corrosion protection.
High-Voltage Stability Up to 750V
The system maintains stable DC electrical supply between cathode and anode despite the high-impedance plasma sheath. Voltage regulation accuracy holds within +/-1%, critical for achieving uniform advanced ceramic layers.
Robust Enclosure and Thermal Management
Designed for continuous industrial duty, the rectifier includes forced air cooling with oversized heatsinks and temperature monitoring. The IP54-rated cabinet protects against conductive dust and electrolyte splash commonly found in anodizing lines.
Part 2 Technical Specifications Table
| Parameter | Specification | Notes |
|———–|—————-|——-|
| AC Input | 3-Phase 380V / 480V +/-10% 50/60Hz | Standard industrial mains |
| Output Voltage | 0-750V DC continuous adjustable | For PEO breakdown range |
| Output Current | 0-200A DC continuous adjustable | 150kW rated power |
| Pulse Frequency | 1Hz – 3000Hz adjustable | Unipolar rectangular wave |
| Duty Cycle | 10% – 90% adjustable | Fine-tune energy per pulse |
| Regulation Mode | Constant Voltage / Constant Current selectable | Automatic cross-over |
| Ripple Factor | Less than 3% at full load | Stable plasma arc |
| Efficiency | Greater than 90% at rated power | IGBT switching loss minimized |
| Display | 7-inch color touchscreen | Real-time V, I, kWh, pulse settings |
| Communication | RS485 Modbus RTU, Ethernet, 4-20mA analog | PLC/DCS integration ready |
| Cooling | Forced air (built-in fans / heatsink) | No water cooling required |
| Protection | Overvoltage, overcurrent, overtemperature, short circuit, arc detection | Automatic shutdown |
| Operating Temp | 0°C to 45°C ambient | Derate above 40°C |
| Dimensions (WxDxH) | Custom per order (typically 800x600x1600mm) | Floor standing cabinet |
| Weight | Approx. 250-350 kg dependent on configuration | |
Part 3 Advanced Built-in Protection Systems
Arc Suppression and Fault Interruption
The control logic continuously monitors output voltage and current rise rates. Upon detecting a sustained arc or short circuit, the system interrupts output within 2 milliseconds, preventing damage to the workpiece and power stage.
Overtemperature Derating Strategy
Integrated thermistors on IGBT modules and heatsinks trigger automatic current reduction if thermal limits are approached. This allows continued operation at reduced output rather than abrupt shutdown, maintaining production throughput.
Multi-Layer Overvoltage Clamping
Both software (pulse width modulation limiting) and hardware (MOV and TVS diode arrays) protect against voltage transients reflected from the anodizing tank during plasma discharges.
Part 4 Target Industrial Applications
Plasma Electrolytic Oxidation (PEO) / Micro-Arc Oxidation
This is the primary use case. The unipolar high-voltage pulse is ideal for forming ceramic oxide layers on aluminum, titanium, and magnesium alloys. Industries include aerospace structural components, automotive engine parts, and defense equipment requiring wear and corrosion resistance.
Lightweight Alloy Passivation
For components where surface dielectric breakdown must be controlled precisely, such as electronic enclosures and medical implants, the adjustable pulse parameters allow creation of dense alpha-alumina layers without cracking.
Advanced Ceramic Layer Development
Research laboratories and pilot lines benefit from the full customization of pulse profile, allowing experimentation with coatings for thermal barrier or anti-galling applications.
Custom Anodizing and Sealing
While optimized for MAO, the rectifier can also operate in continuous DC mode for conventional hard anodizing, sulfuric anodizing with pulse assistance, and sealing processes, providing versatility in a single unit.
Part 5 Customization and Tailored Engineering Services
Every PEO installation presents unique tank geometries, workpiece fixturing, and process chemistry. As an IGBT rectifier manufacturer, we offer full customization from 1V to 1000V and 1A to 100,000A in DC output only. Your specific configuration can include any combination of the following modules:
Process Timer
Programmable ramp-up, dwell, and ramp-down times with audible alarm on cycle completion. Supports 10 recipe memory slots.
Multi-Stage Profile Control
Create up to 10 sequential voltage or current setpoints with independent pulse frequency and duty cycle per stage. Ideal for graded coating structures.
Ampere-Minute Integrator
Monitors total charge transferred for precise coating thickness control. Displays integrated ampere-minutes and resets on cycle start.
Automatic Reverse Polarity
Optional short reverse pulse to reduce arcing on complex geometries. Voltage and duration fully adjustable.
Soft-Start and Pulse Modulation
Gradual voltage ramp to prevent hard breakdown at process start. Pulse modulation adjusts shape from square to trapezoidal.
Fieldbus Interfaces
Selectable RS485 Modbus RTU, Ethernet TCP/IP, or 4-20mA analog remote control. Data logging for quality documentation.
Pulse Functions 1-3000Hz
Standard equipment. For higher frequency requirements up to 10kHz, contact engineering.
Your custom current voltage rectifier will be designed, tested, and validated in our factory before shipment. We provide full schematic documentation, user manual, spare parts recommendations, and remote diagnostics support. For a heavy-duty DC power supply price tailored to your voltage and amperage specifications, contact us with your tank volume, coating material, and desired throughput.
