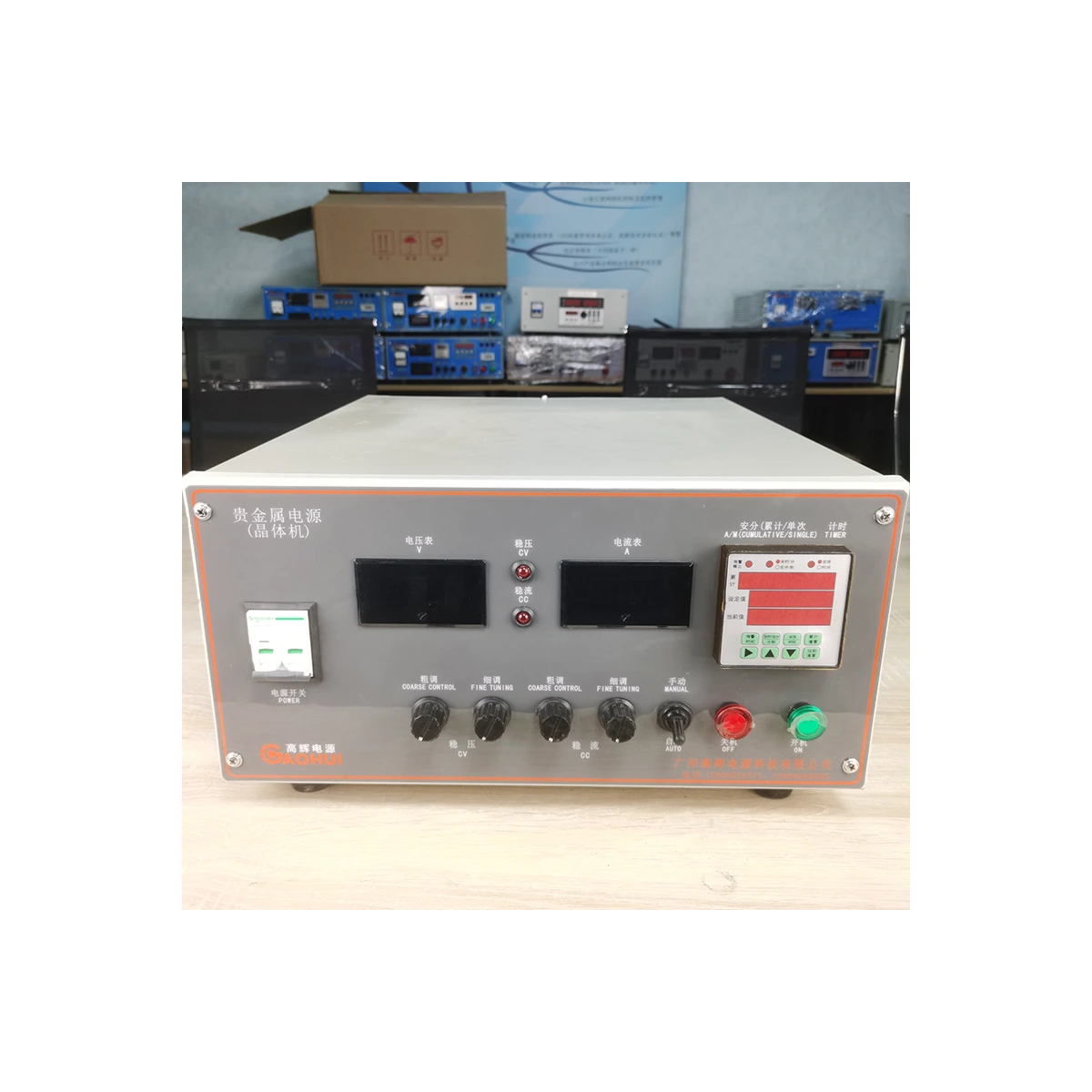

Industrial-Grade Silver Plating Rectifier (12V 100A) for Precision Electroplating

Engineered for demanding precious metal finishing lines, this 12V 100A silver plating rectifier delivers pure, ripple-free DC current essential for achieving mirror-bright deposits and uniform layer thickness. Unlike conventional silicon-based units, our advanced high-frequency IGBT topology ensures waveform smoothness comparable to expensive linear supplies while delivering 10% higher energy efficiency and significantly lower heat generation. As a trusted industrial high frequency rectifier factory, we built this system to replace aging thyristor reactors in high-purity silver bath operations where voltage stability directly impacts crystal structure.
Part 1 Key Features & Engineering Highlights
Stable 12V DC output with ultra-low ripple below 1% ensures consistent electrical contact plating without burn marks or clouding on decorative silverware or electronic connectors. The heavy-duty design handles continuous duty cycles, making it ideal for precision cyanide silver plating where bath chemistry requires exact voltage control. With 100A current capability, this unit supports both manual barrel lines and automatic hoist systems, scaling from small job shops to high-volume production.
Professional remote controller interface allows operators to set output parameters from a safe distance, reducing chemical exposure risks. Air-cooled construction eliminates water leakage and maintenance associated with liquid-cooled systems, while the modular IGBT array provides overcurrent tolerance that silicon-based units cannot match. When comparing heavy-duty DC power supply price against output quality, this rectifier offers clear lifecycle cost advantages through reduced power consumption and longer component lifespan.
Part 2 Technical Specifications Table
| Parameter | Value | Tolerance |
| ——— | —– | ——— |
| Output Voltage | 12V DC | ±1% |
| Output Current | 100A | 0-100% adjustable |
| Input | 380V 3-Phase / 50Hz | ±10% voltage variation |
| Efficiency | >90% at full load | 5% lower at 25% load |
| Ripple | <1% RMS | Under 100W load |
| Dimensions | 600x450x800mm | Weight: 85kg |
| Cooling | Forced air | 2x 120mm fans |
Part 3 Advanced Built-in Protection Systems
Our engineering team configures redundant safeguards to protect both the rectifier and your valuable silver electrolyte. Overvoltage protection instantly cuts output if regulation fails, preventing catastrophic voltage spikes that can damage delicate plating racks. Overcurrent protection with fast trip time (under 2ms) saves expensive platinum-plated anodes from thermal runaway. Output short circuit protection initiates automatic restart after 3 seconds, allowing production continuity without manual intervention. Thermal protection monitors IGBT junction temperatures, reducing power by 15% before reaching 85°C to prevent semiconductor stress.
Part 4 Target Industrial Applications
This rectifier excels in high-purity silver bath environments where chloride contamination from inferior power supplies causes pitting. Primary use cases include decorative silver electroplating on jewelry, tableware, and musical instruments, ensuring defect-free mirror finishes. Electrical contact plating requires exact voltage control for silver layers on switchgear and relay contacts, where our machine’s closed-loop regulation maintains consistent deposition rates. Precision cyanide silver plating for aerospace components benefits from the unit’s low ripple and constant current mode, preventing hydrogen embrittlement that occurs with poorly filtered DC. Additional applications span gold, nickel, and zinc plating, with tool-less adjustment between processes providing production floor flexibility.
Part 5 Customization and Tailored Engineering Services
As a dedicated IGBT rectifier manufacturer, we offer comprehensive custom current voltage rectifier solutions for unique process requirements. Our factory capabilities cover 1V-1000V DC output and 1A-100,000A current ranges, with 3-phase AC input only. Standard customization modules include Process Timer for automatic cycle termination at specified ampere-minutes, Multi-Stage Profile Control enabling ramping sequences for complex geometries, and Ampere-Minute Integrator with data logging for bath maintenance. Automatic Reverse Polarity feature aids in desilvering racks and removing nodule buildup, extending production uptime. Soft-Start circuit ensures gradual electrolyte current rise, eliminating thermal shock to plastic plating jigs. Communication interfaces encompass RS485 Modbus RTU for PLC integration, Ethernet TCP/IP for remote monitoring dashboards, and 4-20mA analog control for legacy automation. Pulse Functions with 1-3000Hz adjustable frequency enable high-speed reverse pulse plating for improved grain refinement in decorative silver applications, reducing chemical consumption by up to 25%.
