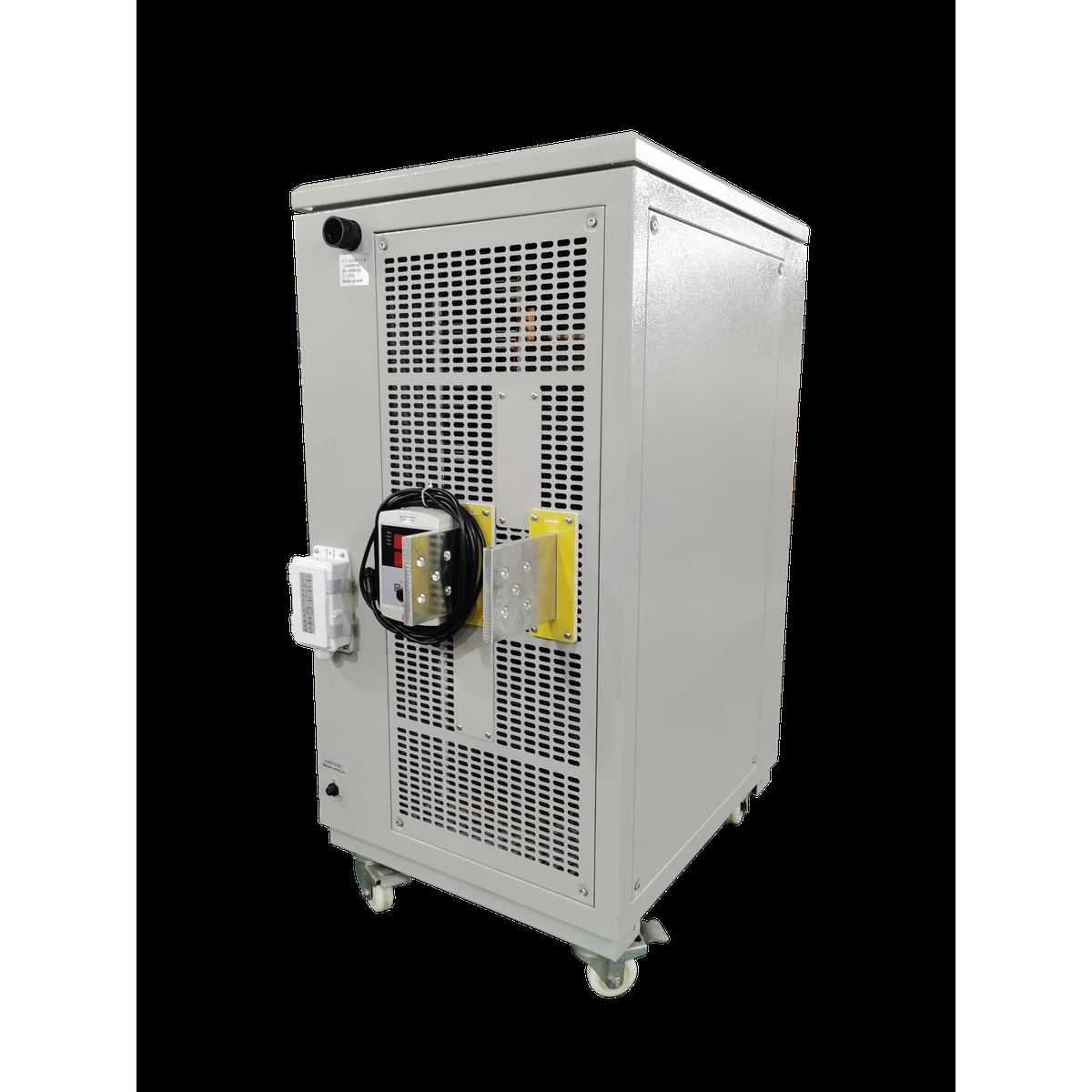

30V 2000A Electrocoagulation Process Rectifier

The 30V 2000A Electrocoagulation Process Rectifier is a unidirectional DC power supply rated at 30 V and 2000 A for electrocoagulation water treatment projects. The published rating defines the available DC envelope; it does not replace process calculations or establish the normal operating setpoint.

Published Rating and Electrical Boundary

Rated DC output	30 V DC, 2000 A DC
Application	electrocoagulation water treatment
Regulation	Constant-current or constant-voltage main mode, selected for the confirmed process
AC input	AC 380 V or 415 V. Final phase, frequency and site conditions must be confirmed.

This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.

Application and Selection

This page applies to electrochemical generation of coagulant from iron, aluminum or combined electrodes in a defined reactor Calculate current from effective electrode area and the trial-approved current density; flow alone is not a valid ampere selection method. Confirm the highest cell voltage from water conductivity, pH, temperature, electrode spacing, connection and electrode ageing.

Electrocoagulation differs from electrocatalytic oxidation and requires its own electrode consumption and reactor design data.

Production-window focus: size against the credible maximum load while preserving useful adjustment through normal production. Minimum, normal and maximum conditions should be supplied together.

Information Required for Selection

• wastewater and target pollutants
• flow, batch volume and residence time
• electrode material and area
• current density
• electrode spacing and connection
• pH, conductivity and temperature
• trial current and voltage
• cleaning, duty and safety requirements

Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.

Configuration Boundary

The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.

Frequently Asked Questions

Is the rated current the normal process current?

No. The rating is the product ceiling; the working setpoint must follow the validated process window and actual load.

Can the process name determine the final voltage?

No. Loaded voltage depends on chemistry or load behavior, spacing, contacts, conductors and the production arrangement.

Are pulse, reversal and communications included?

Only when they are written into the confirmed configuration. They are not assumed from the product title.
