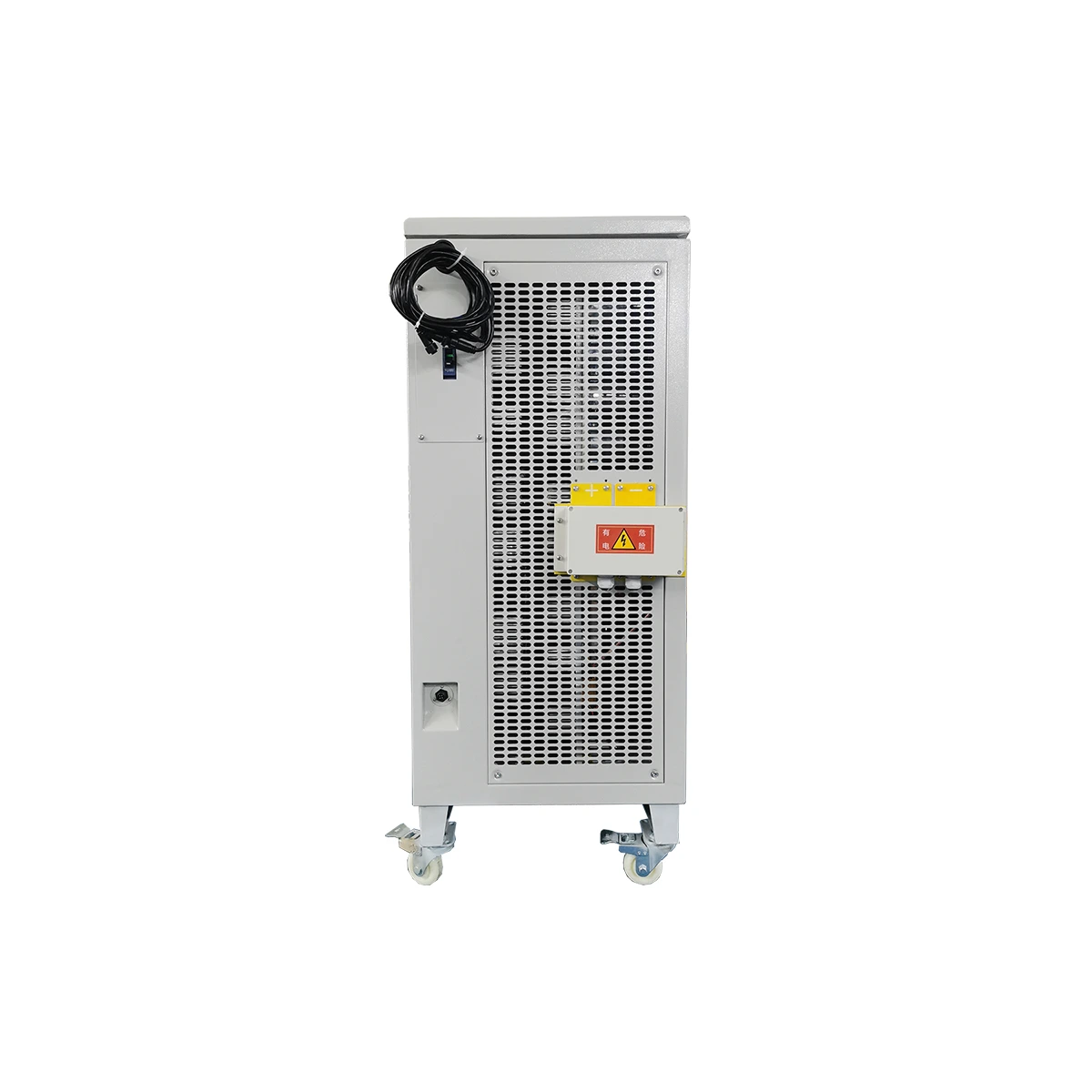

Heavy Duty Electrolysis Rectifier (12V 6000A) for Copper Electrowinning

Executive Summary
This unit is engineered as a precise, high-efficiency DC power conversion solution for copper electrowinning and hydrometallurgy operations. Designed for continuous “24/7” duty cycles in harsh industrial environments, this rectifier delivers a stable 12V rail at a massive 6000A, drastically increasing current density for faster metal recovery and consistent deposit morphology. It is a direct replacement for aging, inefficient SCR units. As a top-tier industrial high frequency rectifier factory, we deliver this as a complete turnkey power supply with advanced digital control. For current budget analysis, please check the heavy-duty DC power supply price configuration below.
Part 1 Key Features & Engineering Highlights
HIGH FREQUENCY IGBT TECHNOLOGY
Employs Phase-Shifted Full-Bridge zero-voltage switching (ZVS) topology. This reduces transformer core size by 80% compared to line-frequency units and achieves >92% efficiency at full load, directly reducing kWh consumption per ton of copper.
ADAPTIVE CURRENT DENSITY CONTROL
Closed-loop feedback system via Hall Effect sensors enables precise constant current (CC) regulation tolerances of ±0.5%. This auto-compensates for changing electrode surface area and electrolyte conductivity, preventing uneven anode wear and cathode nodulation.
WIDE COMPLIANCE VOLTAGE WINDOW
While rated at 12V nominal, the output can be dialed down to 3V for initial plating ‘strike’ phases or up to 15V for passivation breaking. This flexibility eliminates the need for multiple power sources on a single tank line.
Part 2 Technical Specifications Table
| Parameter | Standard Specification |
| — | — |
| Model Series | GQ-Electrowinning |
| Input Voltage (AC) | 380V / 415V / 480V 3-Phase (50/60Hz) |
| Output Voltage (DC) | 0 – 12V (Adjustable) |
| Output Current (DC) | 0 – 6000A (Adjustable) |
| Regulation Mode | Constant Current (CC) / Constant Voltage (CV) |
| Efficiency @ Full Load | ≥ 92% |
| Ripple Factor | ≤ 3% RMS |
| Control Interface | RS485 Modbus RTU / Ethernet (Optional 4-20mA) |
| Cooling Method | Forced Air Cooling (Industrial Fans) |
| Protection Class | IP54 (Control Cabinet) / IP20 (Transformer) |
| Operating Temp | -10°C to +55°C |
Part 3 Advanced Built-in Protection Systems
The unit integrates a dedicated DSP for redundant safety management. The IGBT rectifier manufacturer design includes: Phase Loss protection (halts output immediately if input leg drops), Over-Temperature trip with auto-recovery (settable threshold), and Short-Circuit crowbar protection to safeguard the load. A Soft-Start circuit is integrated to prevent inrush current tripping on facility transformers. The system logs the last 20 fault events with timestamps for ISO 9000 audits.
Part 4 Target Industrial Applications
This specific 12V/6000A variant is optimized for:
Copper Electrowinning (SX-EW) plants requiring high current for large cathode banks.
Acid Copper Electroforming for thick deposit shaping.
Precious Metal Recovery from scrap electronic boards.
High-speed Copper Wire Plating lines where consistent grain structure is critical.
Cobalt Reduction Cells needing a stable, low-voltage, high-amp source.
Part 5 Customization and Tailored Engineering Services
