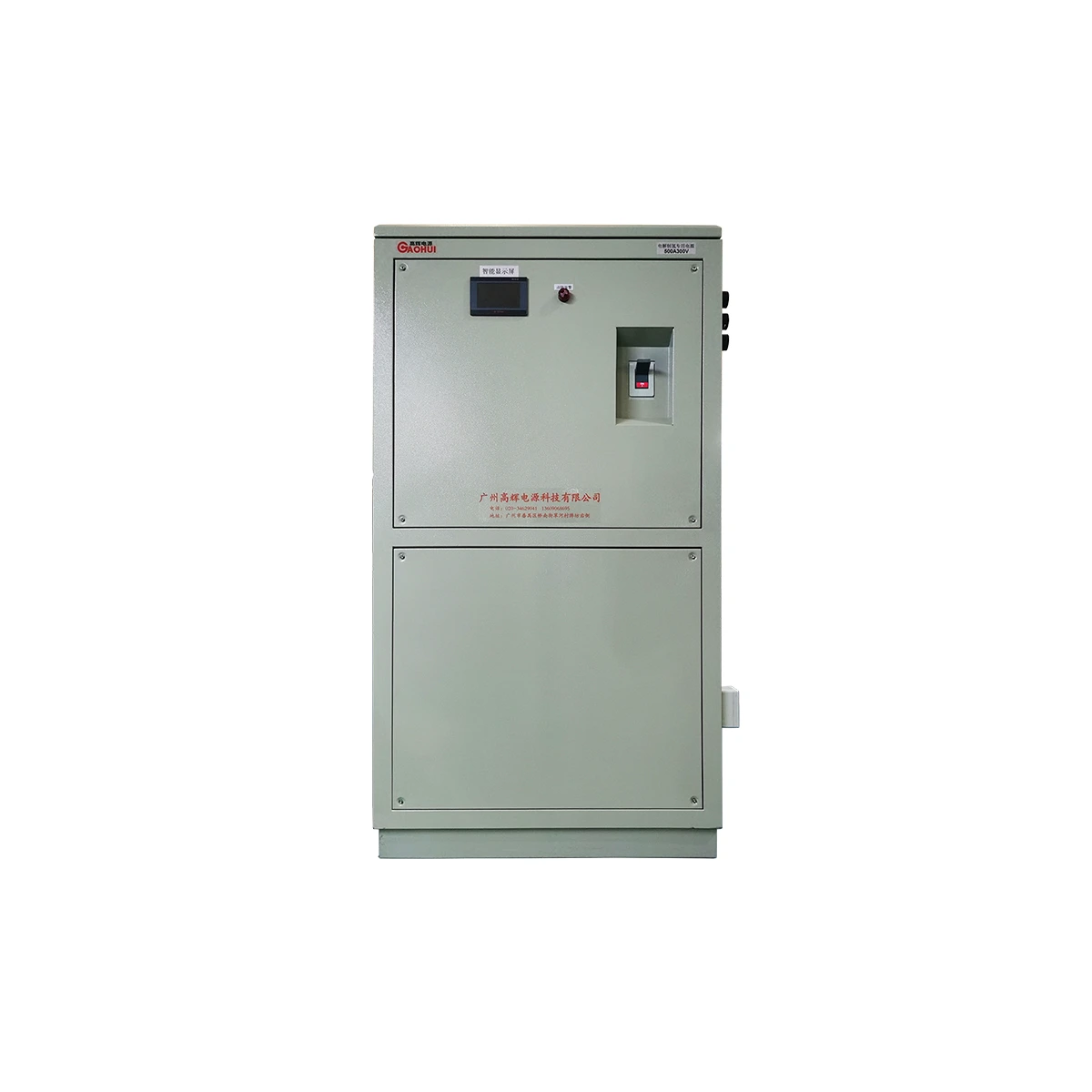

Heavy Duty Electrolysis Power Supply (30V / 5000A) – GAOHUI Custom Water Electrolysis Rectifier for Green Hydrogen Production

EXECUTIVE SUMMARY
This is not a generic rectifier. This is a high-precision, high-efficiency GAOHUI DC power supply engineered specifically for the demanding physics of alkaline water electrolysis and PEM electrolyzer stack integration. Unlike standard industrial units, this system delivers 30 Volts at a full 5000 Amperes with ripple factors below 2%, ensuring optimal hydrogen production yield while sacrificing no energy stability. Engineered at our industrial high frequency rectifier factory, this unit is the cornerstone of cost-effective green hydrogen generation.
PART 1 – KEY FEATURES & ENGINEERING HIGHLIGHTS
– True 30V / 5000A Continuous Duty Cycle: Engineered for 24/7 hydrogen electrolysis with zero derating at rated load. The heavy-duty bus bars and high-amp diodes are certified for sustained alkaline water electrolysis processes.
– Ultra-Low Output Ripple: Output ripple controlled at less than 2% (rms). For PEM electrolyzer stack applications, this protects sensitive membrane interfaces and reduces catalyst degradation, directly extending stack lifespan.
– High Efficiency IGBT Inverter Topology: Proprietary IGBT switching architecture ensures conversion efficiency exceeding 92% across the full load range. This directly translates to lower electrical costs per kilogram of hydrogen produced.
– Digitally Controlled Current/Voltage Regulation: Closed-loop dual PID control ensures output stability within 0.5% of setpoint. Seamless transition between constant current (CC) for controlled deposition and constant voltage (CV) for optimal ion mobility in the electrolysis cell.
– Robust Industrial Enclosure: NEMA 3R rated steel cabinet with epoxy coating designed to withstand corrosive hydrogen environment spillage and ambient air moisture. Panelized architecture allows slide-out module access for rapid field service.
PART 2 – TECHNICAL SPECIFICATIONS TABLE

PART 3 – ADVANCED BUILT-IN PROTECTION SYSTEMS
ELECTRICAL: Automatic electronic soft-start ramp prevents inrush current shock to both the IGBT rectifier manufacturer power stage and the downstream electrolysis cell. Dedicated over-voltage crowbar circuit, instantaneous over-current trip (within 2ms), short-circuit proof output. A phase-loss detector locks the unit before energizing to protect main capacitors.
THERMAL: Three independent PT100 temperature sensors monitoring IGBT heatsink, transformer winding, and cabinet ambient ambient temperature. If internal temperature exceeds safe threshold (85°C), the unit scales back current gradually (45% decrement per minute) to prevent thermal runaway. At the absolute limit (>95°C), a hard shutdown occurs with local/remote alarm.
PART 4 – TARGET INDUSTRIAL APPLICATIONS
This power supply is optimized for green hydrogen production but its industrial-grade design also supports critical electrolytic processes requiring high current stability and long-term reliability:
– Alkaline Water Electrolysis (AWE) station power
– PEM (Proton Exchange Membrane) electrolyzer stack testing and production
– Direct current input for hydrogen fuel cell reverse reaction studies
– Large-scale chlorine-alkali processing
– Metallurgical refining (copper foil, nickel plating)
PART 5 – CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
As a custom current voltage rectifier specialist, GAOHUI offers deep customization far beyond standard parameters. Every unit can be engineered for specific application needs:
VOLTAGE & CURRENT RANGE: Factory custom capability spans 1V to 1000V DC, and 1A to 100,000A DC. Our engineering team modifies transformer windings and IGBT module configurations to match any cell voltage profile.
INPUT / OUTPUT CONFIGURATION: Input is three-phase AC (any global standard). Output is pure DC. We can provide split output, dual polarity (for pulse reversal), or multi-tap secondary windings for parallel cell operation.
PROCESS OPTIMIZATION MODULES: Optional integrated modules include:
– Process Timer (on/off cycles)
– Multi-Stage Profile Control (ramp-up, dwell, ramp-down for specific deposition sequence)
– Ampere-Minute Integrator (calculate total Coulombs delivered — ideal for lab-standardization in hydrogen research)
– Automatic Reverse Polarity (optional burst reversal to reduce cathode poisoning in alkaline cells)
– Soft-Start / Soft-Stop (ramp profiles from 0.1s to 300s)
– Interface options: heavy-duty DC power supply price includes standard RS485 Modbus RTU. Available with Ethernet TCP/IP, Profibus, DeviceNet, and isolated 4-20mA analog inputs.
– Pulse Function: Fully adjustable from 1Hz to 3000Hz with independent duty cycle control for pulsed electrochemistry experiments or sonochemical hybridization.
CONTACT OUR FACTORY: Submit your custom specifications (cell voltage, stack current, ramp time, communication protocol) to receive a engineered proposal certified to UL / CE / CCC standards. We are your dedicated industrial high frequency rectifier factory partner for hydrogen economy infrastructure.
