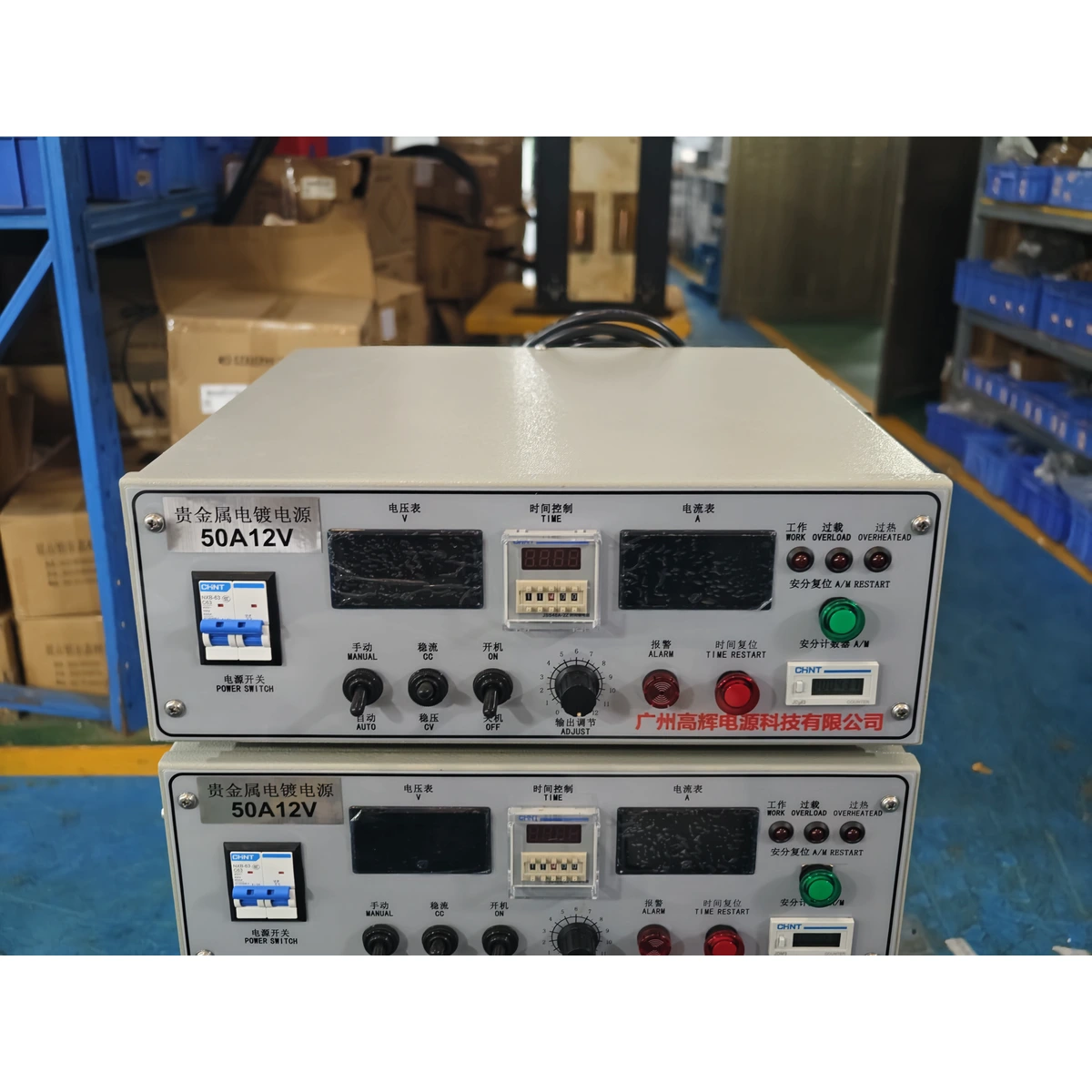

Gold Plating Power Source 12V 50A

Industrial-Grade 12V 50A Pulse Plating Rectifier for Precious Metal Deposition
Engineered for precision electrolyte refining, this 12V 50A DC power supply delivers stable, ripple-free current critical for high-value gold plating operations. Unlike conventional rectifiers, it features advanced pulse plating modulation to optimize crystal structure and deposit density. Sourced directly from an industrial high frequency rectifier factory, this unit eliminates cosmetic defects like burning and uneven coverage while maximizing metal utilization. The compact, air-cooled chassis is designed for continuous duty cycles in manufacturing plants, offering both constant current (CC) and constant voltage (CV) modes for diverse electrolytic processes.
Part 1 Key Features & Engineering Highlights
Precision Pulse Modulation: Adjustable pulse frequency from 1Hz to 3000Hz allows manipulation of grain size and porosity, resulting in denser, brighter gold deposits with reduced hydrogen embrittlement. This is a primary reason procurement managers compare heavy-duty DC power supply price versus long-term operational value.
High-Frequency MOSFET Switching: The switching frequency (20kHz-100kHz) ensures output ripple below 1% RMS, protecting sensitive electronic connector finishes from uneven plating. This IGBT-based topology achieves efficiency exceeding 92% at full load.
Digital Remote Control Interface: Equipped with RS485 Modbus RTU and Ethernet ports for seamless integration into smart production lines. The digital encoder allows setting current with 0.1A resolution and voltage with 0.01V precision.
Part 2 Technical Specifications Table
| Parameter | Specification | Notes |
| :— | :— | :— |
| Rated Output | 12V DC ±2% / 50A | Adjustable 0-100% |
| Input Power | AC 220V ±15%, 50/60Hz | Single or three-phase option |
| Efficiency | ≥92% | At rated load |
| Output Ripple | <1% RMS | Full load |
| Protection Class | IP20 | Clean, dry indoor use |
| Cooling Method | Forced Air Cooling | Low noise fan |
| Operating Temp | -10°C to +45°C | Derate above 40°C |
| Dimensions (WxDxH) | 280*400*180mm | Custom sizes available |
| Net Weight | 14.5 kg | Aluminum housing |
Part 3 Advanced Built-in Protection Systems
The control architecture includes a triple-layer safety protocol: automatic constant current limiting prevents overloading; reverse polarity alarm protects against incorrect anode connections; and thermal shutdown with auto-recovery safeguards the module during extended heavy-duty use. A soft-start circuit controls initial current surge, extending the lifespan of both the power supply and the precious metal bath. These features are critical for facility operators specifically seeking an IGBT rectifier manufacturer that provides failsafe operation in high-availability environments.
Part 4 Target Industrial Applications
Jewelry Gold Plating: Achieves uniform deposit thickness on complex geometries (rings, chains, pendants). The pulse function reduces porosity in flash plating and strike baths.
Rack Plating Precision: Ideal for barrel and rack lines requiring tight current distribution across large batches. Stable 12V output eliminates edge burning on flatware.
Electronic Connector Finishing: Low ripple content ensures reliable surface metallization for contacts and terminals, meeting IPC-4552 standards for gold thickness.
Part 5 Customization and Tailored Engineering Services
Our factory specializes in configuring units for unique processing demands: we can adjust output from 1V to 1000V and 1A to 100,000A (AC input to DC output only). Integration modules include a programmable Process Timer for batch consistency, a Multi-Stage Profile Control for ramping current during sensitive cycles, and an Ampere-Minute Integrator for precise material thickness control. The Automatic Reverse Polarity function enhances stripping and color variation tasks. Communication protocols can be upgraded with 4-20mA analog control for legacy PLC systems. For unique surface finishing needs, the Pulse Functions offer adjustable duty cycles between 0.1% and 99.9% at 1-3000Hz. Engineers are available to develop a custom current voltage rectifier that integrates directly into your waste treatment or scrubber system.
