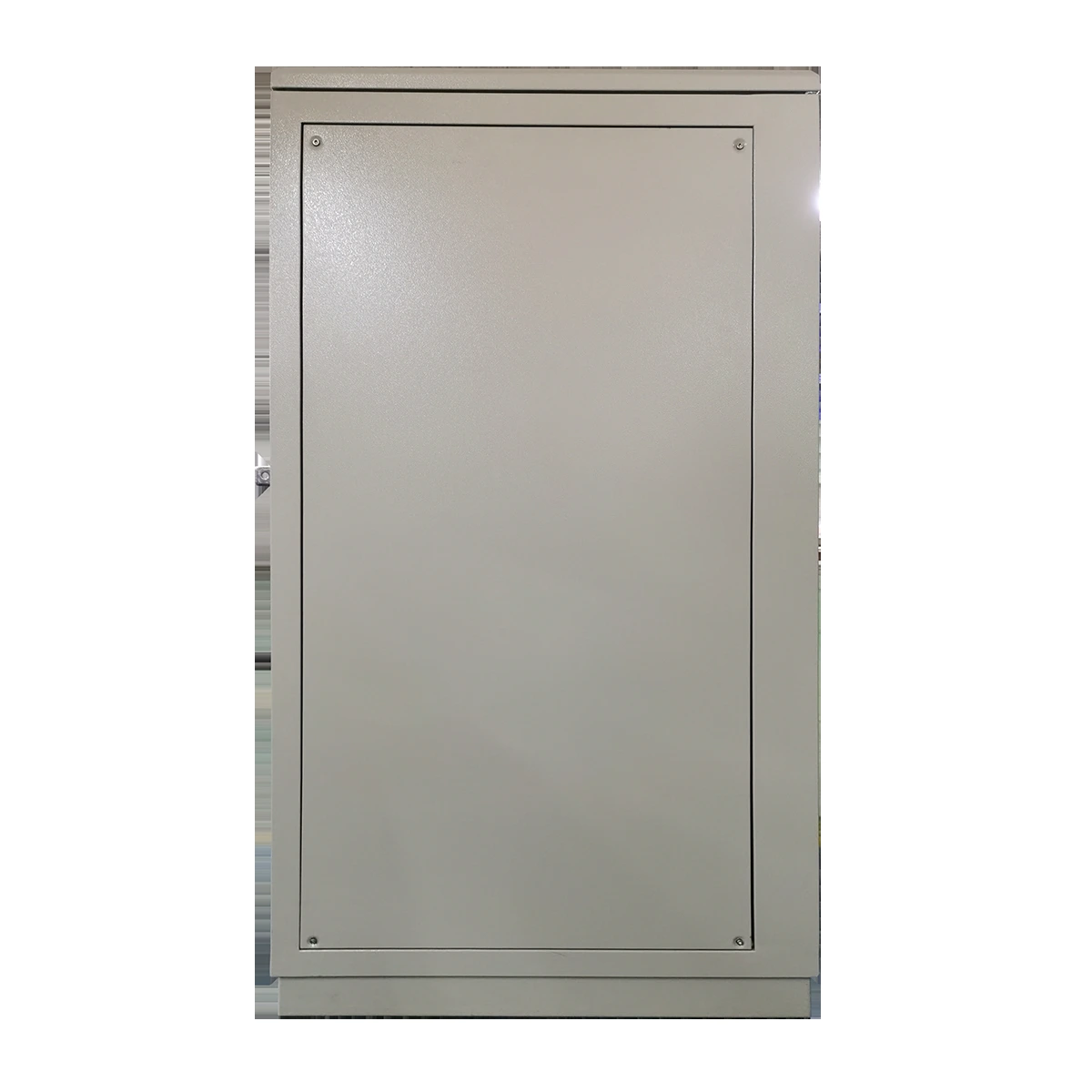

The industrial high frequency rectifier factory GAOHUI delivers a purpose-built 30V 5000A DC power supply engineered specifically for the electrochemical demands of alkaline water electrolysis and PEM electrolyzer stack operations. This system transforms renewable AC or grid power into ultra-pure, ripple-controlled DC current to drive the water-splitting reaction, converting H2O into green hydrogen and oxygen at maximum thermodynamic efficiency. Designed for continuous 24/7 industrial operation, this DC power source eliminates common issues of AC leakage and thermal instability that compromise electrolyzer membrane integrity and gas purity.
Part 1 Key Features & Engineering Highlights
High-Frequency IGBT Topology: Utilizes advanced IGBT switching at 20 kHz to deliver a pure DC output with less than 3% ripple, critical for maintaining electrolyzer stack voltage balance and minimizing ohmic losses.
High-Efficiency Power Conversion: Achieves greater than 92% conversion efficiency, reducing operational kWh per kilogram of hydrogen produced compared to standard SCR-based rectifiers.
Industrial-Grade Construction: Built with heavy-gauge steel enclosures, conformal-coated PCBs, and IP54 ingress protection to withstand humid hydrogen plant environments, caustic dripping, and ambient temperatures up to 50°C.
Precision Constant Current Regulation: Maintains output current stability within +/-0.5% even during dynamic load changes from gas bubble evolution, ensuring consistent hydrogen production rates.
Loadmatched Control Algorithm: Automatically adjusts voltage from 0V to 30V to accommodate varying stack impedance during system warm-up and electrolyte temperature changes, preventing cell starvation or overvoltage.
Part 2 Technical Specifications Table
| Parameter | Specification |
| Model | GAOHUI GH-HP30-5KA |
| DC Output Voltage | 0 30V continuously adjustable (custom 1V-1000V available) |
| DC Output Current | 0 5000A continuously adjustable (custom 1A-100,000A available) |
| Input Power | 3-Phase, 380VAC +/-10%, 50/60Hz (custom AC inputs available) |
| Efficiency | > 92% at full rated load |
| Output Ripple | < 3% rms at any operating point |
| Regulation Mode | Constant Current / Constant Voltage with auto crossover |
| Stability | +/-0.5% over 8 hours after warm-up |
| Cooling Method | Forced air, high-velocity fans with dual redundancy |
| Protection Rating | IP54 (enclosure), suitable for alkaline and PEM environments |
| Operating Temperature | -10°C to +50°C |
| Humidity | 0 to 90% non-condensing |
Part 3 Advanced Built-in Protection Systems
This heavy-duty DC power supply price reflects an investment in multi-layered protection against every failure mode present in industrial electrolysis. The system includes independent electronic fast-blow fuses, over-voltage crowbar protection, and over-current electronic limit circuits that respond in under 5 milliseconds. A built-in over-temperature trip protects the IGBT modules and transformer from sustained thermal overload. The controller also monitors earth leakage current, immediately shutting down if ground fault exceeds 30mA, a critical safety for personnel working near caustic electrolyte. Back-EMF protection clamps any voltage surges from the electrolyzer stack during sudden load disconnect, preventing damage to internal power semiconductors.
Part 4 Target Industrial Applications
Alkaline Water Electrolysis AWE: Optimized for 30V 5000A operation typical of multi-cell bipolar stacks using 25-30% KOH electrolyte for industrial hydrogen production rates up to 100 Nm3/hr.
Proton Exchange Membrane PEM Electrolyzer: Provides the stable, low-ripple current required to protect sensitive PFSA membranes and iridium-coated anodes, ensuring high faradaic efficiency and gas crossover prevention.
Green Hydrogen Fueling Stations: Serves as the primary DC power conversion unit for renewable-powered microgrid installations producing compressed hydrogen for vehicle refueling.
Industrial Gas Generation: Powers electrolyzers in chemical plants, glass manufacturing, and metal processing where hydrogen is used as a reducing agent or feedstock.
Research and Development: Suitable for testing new catalyst coatings, electrode configurations, and high-current electrolysis cycle experiments in laboratory settings.
Part 5 Customization and Tailored Engineering Services
As a dedicated industrial high frequency rectifier factory, GAOHUI offers complete customization beyond standard 30V 5000A ratings to match any electrolyzer stack design. Voltage can be specified from 1V up to 1000V, and current from 1A up to 100,000A. Input power can be engineered for any three-phase AC grid standard worldwide (208V, 400V, 480V, 690V, or 11kV medium voltage direct feed). Core output remains pure DC only to support the electrochemical reaction.
Advanced process modules available for integration:
Process Timer: Programmable run-time for batch electrolysis, automatic shutdown after set production volume.
Multi-Stage Profile Control: Pre-load, ramp-up, steady-state, and ramp-down current profiles for membrane conditioning cycles.
Ampere-Minute Integrator: Real-time total charge tracking for precise hydrogen output measurement and billing verification.
Automatic Reverse Polarity: Periodic polarity reversal (up to 5 minutes interval) to clean electrode surfaces and reduce scaling in alkaline systems.
Soft-Start Ramp: Controlled voltage rise over user-definable 1-60 seconds to prevent inrush current stress on stack components.
Control and communication interfaces include RS485 Modbus RTU for SCADA integration, Ethernet TCP/IP for remote monitoring via web dashboard, 4-20mA analog inputs for external PLC control, and isolated dry contact relays for alarm and fault outputs. Pulse Function modules are available with adjustable frequency from 1Hz to 3000Hz and duty cycle from 10% to 90%, enabling advanced pulsed electrolysis studies for enhanced gas detachment. Contact our engineering team for a custom current voltage rectifier quote matched to your exact hydrogen production parameters.
