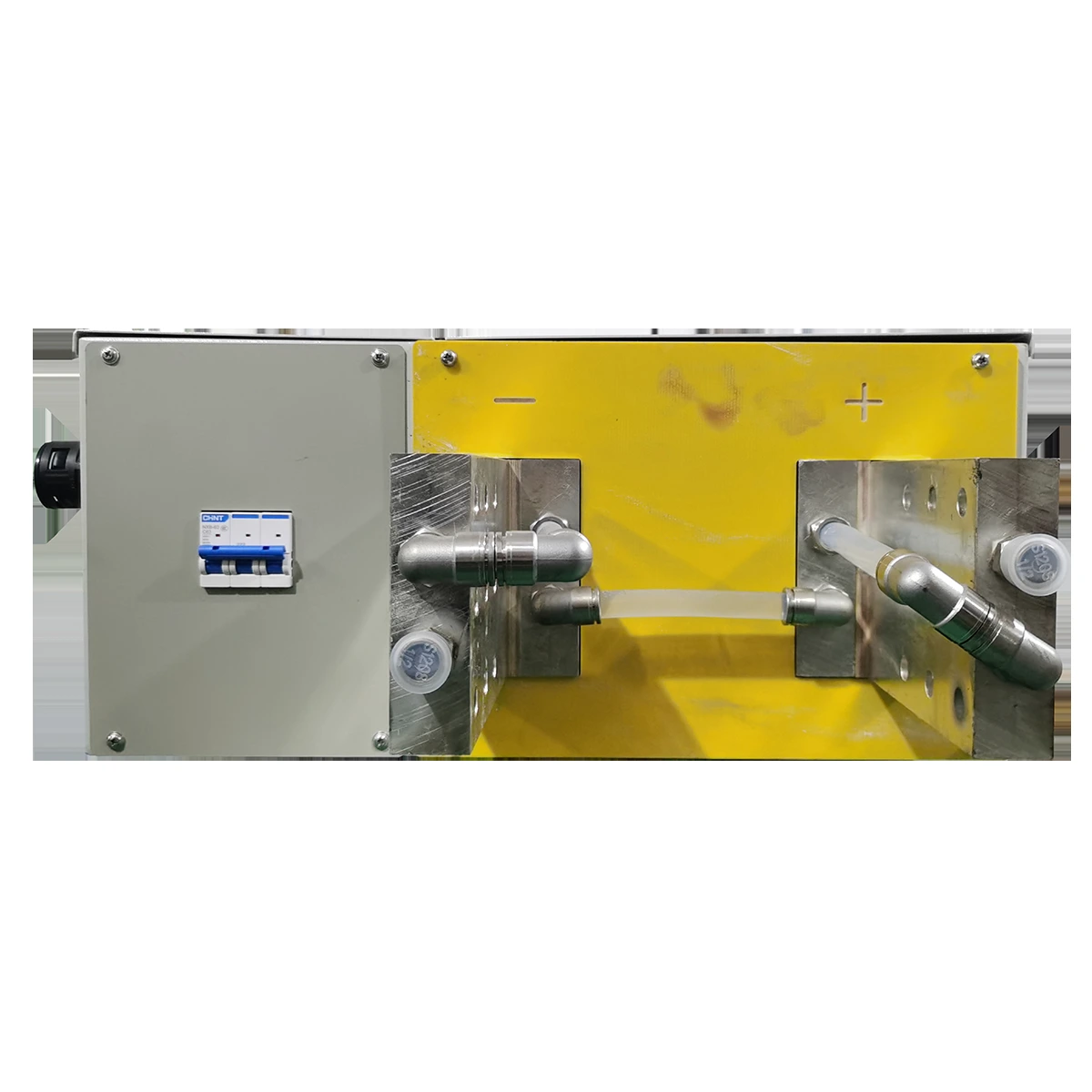

GAOHUI High Current Plating Supply (12V/1000A) for Precision Hard Chrome Finishing

Executive Summary
Eliminate the guesswork of your chrome electroplating line with a purpose-built, high efficiency IGBT rectifier that delivers 12,000 watts of pure DC output. This GAOHUI unit is engineered specifically for industrial hard chromium processes where ripple-free current, long duty cycles, and unwavering voltage stability dictate final part quality. By sourcing directly from an industrial high frequency rectifier factory, you bypass middlemen markups and secure a system matched to your production demands, not a generic compromise.
Part 1 Key Features & Engineering Highlights
IGBT Switching Technology: Utilizes advanced IGBT modules and high frequency transformer topology to achieve greater than 90% efficiency while reducing physical footprint compared to traditional SCR units. This directly translates to lower operational heat and reduced energy waste during long hexavalent chrome plating runs.
True Air Cooling Engineered for Hard Chrome: Designed to handle the aggressive chemistry and high ambient temperatures common in heavy-duty plating barrel environments. The forced air system requires no deionized water or secondary coolant loops, simplifying installation and reducing your total heavy-duty DC power supply price with a lower total cost of ownership.
Direct Digital Regulation: Microprocessor-controlled 0-12V voltage regulation and 0-1000A current limiting allow you to dial in the exact cathode current density required for industrial hard chromium applications. The rectifier maintains setpoint accuracy within +/- 1%, essential for achieving correct deposit thickness and hardness specifications on critical tooling and high-wear components.
Part 2 Technical Specifications Table
| Parameter | Specification | Notes |
|—|—|—|
| Output Voltage | 0-12V DC (continuous adjustable) | Other custom ranges available |
| Output Current | 0-1000A DC (continuous adjustable) | Linear derating above 40°C ambient |
| Input Voltage | 380V / 400V / 480V AC, 3-Phase, 50/60 Hz | +/- 10% tolerance |
| Efficiency | > 90% at full load | Typical at rated output |
| Ripple | < 3% RMS | Essential for hard chrome |
| Cooling Method | Forced Air Cooling | No external water needed |
| Protection Grade | IP-31 | Standard industrial |
| Control Interface | Standard remote 0-10V / 4-20mA. Optional RS485 Modbus RTU, Ethernet. | Panel mounted metering included |
Part 3 Advanced Built-in Protection Systems
Every rectifier we engineer as a leading IGBT rectifier manufacturer includes redundant safety systems to protect both the machine and your expensive plating tank loads. The unit automatically triggers shutdown during output overcurrent, input phase loss, overtemperature on power devices, and internal DC short circuit conditions. A software-controlled soft-start function eliminates initial current inrush, preventing nuisance tripping of upstream breakers, especially critical when powering large hard chrome tanks with high surface area parts.
Part 4 Target Industrial Applications
Heavy-Duty Hard Chrome Plating: Delivers the precise low-ripple current required for industrial hard chromium on hydraulic cylinders, rolls, and mold tooling.
Decorative Chrome Finishing: Capable of maintaining consistent finish over large rack or barrel workloads in decorative hexavalent chrome systems.
Anodizing & Surface Preparation: Supports type II and type III anodizing as well as standard nickel activation and stripping processes.
High Precision Electroforming: The low output ripple ensures fine grain structure deposition for aerospace and tooling applications.
Part 5 Customization and Tailored Engineering Services
Your process is unique. GAOHUI provides a custom current voltage rectifier service to match your exact production footprint and chemistry. We offer full customization across a voltage range of 1V-1000V and a current range of 1A-100,000A. Input is AC only, output is DC only.
Customer-Requested Modular Add-On Modules:
Process Timer Module: Set precise plating cycles from seconds to hours, with automatic shutoff.
Multi-Stage Profile Control: Program a current density ramp, a holding level for thick build, and a reverse strike clean cycle, all from the front panel.
Ampere-Minute Integrator: Track actual material consumption with a digital counter output for accurate chemical replenishment logic.
Automatic Reverse Polarity (ARP): Switch current direction at adjustable intervals (1-3000Hz pulse frequency available) to reduce nodule growth and improve throwing power into complex geometries.
Soft-Start and Remote Interface: Choose from RS485 Modbus RTU, Ethernet IP, or 4-20mA control for seamless PLC integration.
Pulse Function: 1-3000Hz adjustable pulse output for enhanced grain refinement in special chrome and nickel plating chemistries.
Contact GAOHUI today to discuss your specific current and voltage requirements. We provide the product, the engineering support, and the factory-direct pricing that keeps your hard chrome finishing line competitive.
