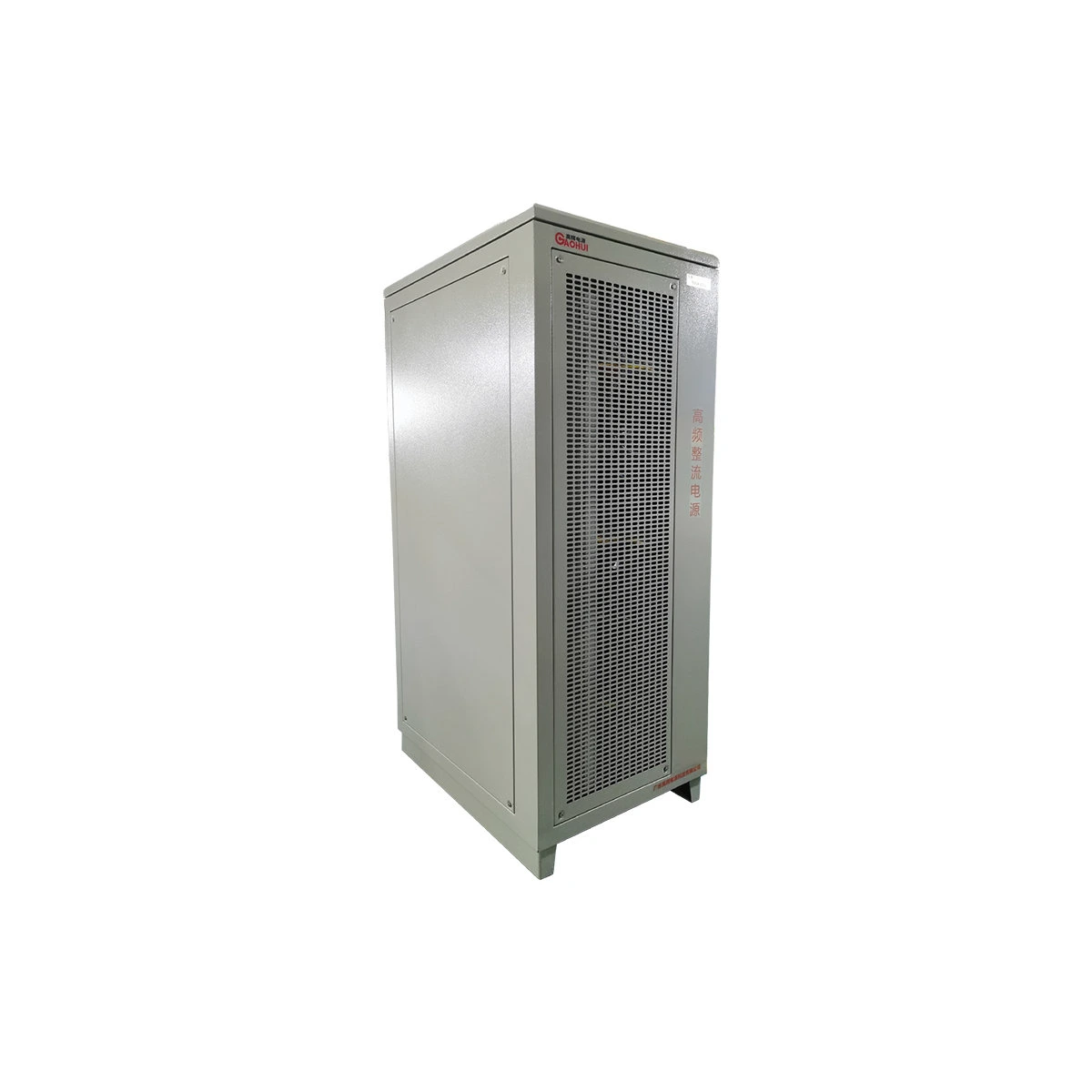

GAOHUI Heavy Duty Plating Power Supply (30V/5000A) for Water Electrolysis for Hydrogen Production

Executive Summary:Engineered for the exacting demands of green hydrogen production, this GAOHUI 30V 5000A DC power supply is not a generic rectifier; it is a precision power source specifically designed for PEM and alkaline electrolyzer stacks. Operating as a high-efficiency IGBT rectifier manufacturer, GAOHUI ensures that every kilowatt of input power is converted into stable, ripple-free DC current required to split water molecules efficiently. This unit replaces legacy thyristor-based systems with a modern, digitally controlled solution that dramatically reduces harmonic distortion and improves system power factor (over 99%). Whether you are scaling a pilot project or operating a continuous industrial plant, this unit delivers the reliable, heavy-duty performance demanded by the hydrogen revolution.
Part 1: Key Features & Engineering Highlights
This unit represents a strategic upgrade for any electrolysis facility, moving beyond basic rectification to become an integral part of the process control loop.
Ultra-Low Output Ripple: The advanced IGBT switching topology produces exceptionally clean DC output below 3% ripple. This is critical for protecting sensitive PEM electrolyzer membranes from thermal stress and degradation, directly improving stack lifespan and reducing maintenance intervals.
Digital Communication Core: Built for Industry 4.0 integration, the unit features standard RS485 Modbus RTU and Ethernet interfaces. This allows a PLC or SCADA system to monitor real-time current/voltage performance and receive alarms, enabling predictive maintenance and optimized hydrogen yield.
Dynamic Load Response: Unlike conventional units that lag during load changes, this rectifier responds in milliseconds to fluctuations in the electrolyzer stack’s internal resistance, ensuring stable gas output even under variable renewable energy input conditions.
Compact & Scalable Design: The modular architecture allows for effortless expansion. The core unit is built in a floor-standing cabinet, but the control and power sections can be separated for remote operation in hazardous or space-constrained areas.
Part 2: Technical Specifications Table
| Parameter | Specification | Notes |
| :— | :— | :— |
| Input Voltage | 380V / 10kV / 35kV (3-Phase AC) | Customizable via isolation transformer |
| Output Voltage (Rated) | 30V DC | Adjustable from 0 to 110% |
| Output Current (Rated) | 5000A DC | Adjustable from 0 to 100% |
| Voltage Regulation | < 0.5% | Over full load range |
| Current Ripple | 0.99 | Ultra-low THDi (< 3%) |
| Cooling Method | Forced Air / Demineralized Water | Factory configured based on load |
| Certifications | ISO 9001, CE | Standard for industrial equipment |
Part 3: Advanced Built-in Protection Systems
An electrolysis rectifier is an investment in a mission-critical process. This GAOHUI unit features multi-layer redundancy to prevent catastrophic failure. industrial high frequency rectifier factory practice dictates that we integrate protection against overcurrent (both I2t and instantaneous), overvoltage, and phase loss to shield the thyristor stage. More critically, it features an IGBT Junction Temperature Monitoring system that dynamically modulates switching frequency to prevent thermal runaway. Additionally, a dedicated Earth Fault Monitor constantly checks for leakage current to ground, which is a common failure precursor in wet electrolysis environments. heavy-duty DC power supply price is justified by these features, which reduce your total cost of ownership by preventing unplanned downtime.
Part 4: Target Industrial Applications
While every IGBT rectifier manufacturer can claim general industrial use, this model is fine-tuned for specific high-purity processes:
Alkaline Water Electrolysis (AWE): Ideal for large-scale plants (MW+) requiring high current (5000A) at relatively low voltage (30V) for commercial alkaline electrolyzer stacks.
PEM Electrolyzer Systems: The ultra-low ripple current is non-negotiable for protecting the delicate catalyst-coated proton exchange membranes used in green hydrogen production.
Research & Laboratory (Electrolysis): Precise current control suitable for pilot plants testing new electrode materials or advanced cell designs.
Part 5: Customization and Tailored Engineering Services
A standard “off-the-shelf” solution rarely fits the unique electrical footprint of a hydrogen facility. As a custom current voltage rectifier provider, GAOHUI offers deep customization (1V-1000V, 1A-100,000A) from a single source. Your unit can be built up with specialized modules to automate your process:
Process Enhancement Modules:
Process Timer: Set precise ON/OFF cycles for batch electrolysis.
Multi-Stage Profile Control: Pre-program a voltage/current ramp to match the heat-up curve of your electrolyzer.
Ampere-Minute Integrator: High-resolution (0.1 A-min) totalizer to track cumulative hydrogen output for billing or process validation.
Automatic Reverse Polarity: For cleaning electrodes in real-time without process interruption.
Soft-Start Function: Prevents massive inrush current that can trip facility breakers.
Programmable Pulse Function: Generate pulsed DC output (1-3000Hz adjustable) to test advanced electrode configurations or influence bubble detachment from the electrodes.
All custom units integrate seamlessly with your existing RS485, Ethernet, or analog 4-20mA control loops, ensuring your electrolyzer power supply is the most intelligent part of your hydrogen production line.
