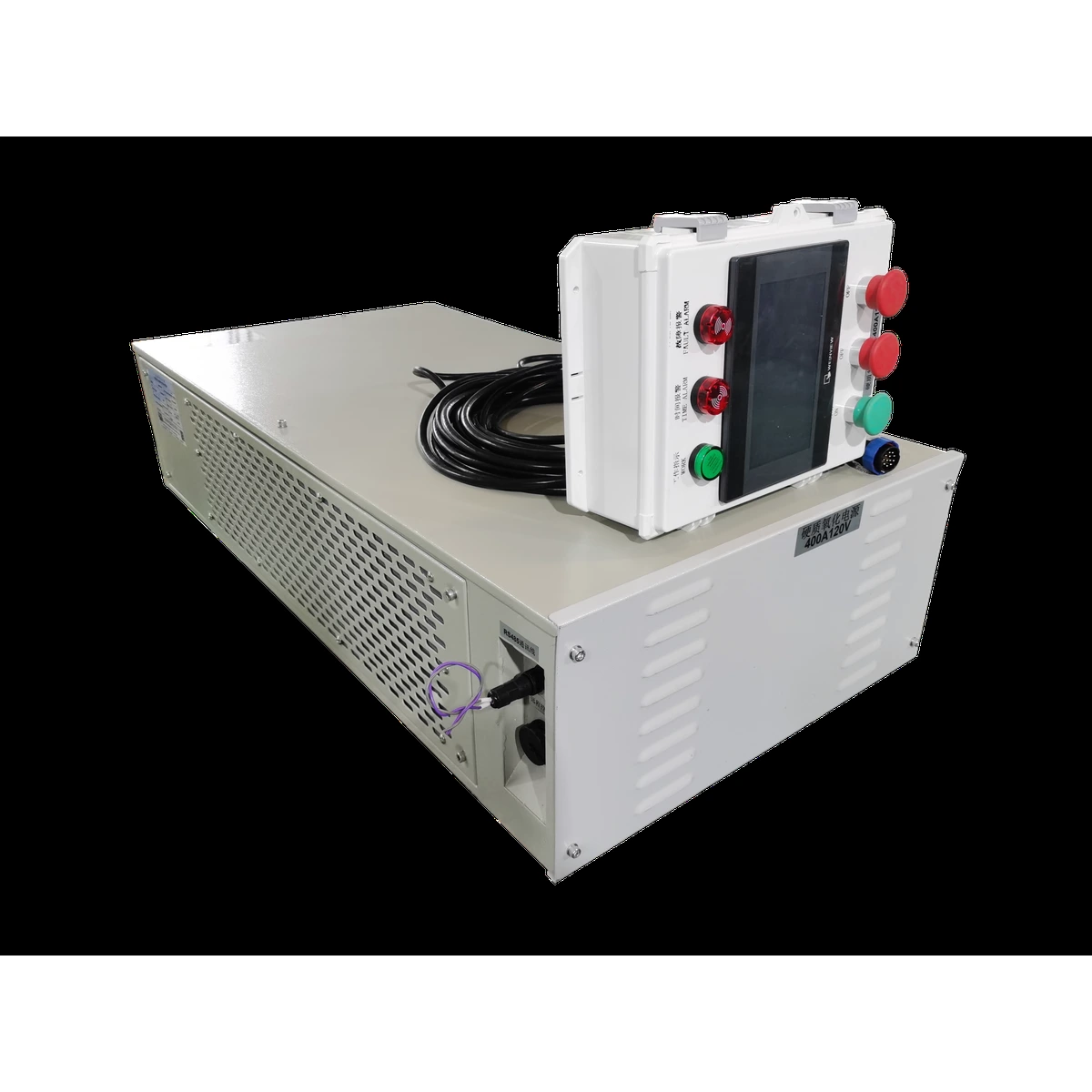

GAOHUI Electrocatalytic Oxidation Rectifier (48V 1000A) Industrial High Frequency Power Supply

Executive Summary
GAOHUI engineered this 48V 1000A power supply specifically to solve the brutal energy demands of electrocatalytic oxidation systems. Unlike generic switch-mode units that degrade under mineralized anode loads and high current density spikes, this rectifier maintains rock-solid voltage regulation while delivering the raw amperage required for advanced oxidation processes and industrial effluent treatment. Every unit leaves our industrial high frequency rectifier factory with verified ripple performance and a five-year mean time between failures for continuous duty cycles in COD removal applications.
Part 1 Key Features & Engineering Highlights
Electrocatalytic oxidation demands a power source that can sustain high current density without waveform distortion or thermal runaway. The GAOHUI 48V 1000A unit employs true high-frequency IGBT switching at 20-50kHz, achieving efficiency above 92% across the full load range. The output stage uses redundant electrolytic capacitor banks and heavy-duty bus bars to handle the instantaneous current demands of sensor-based closed-loop control systems. For operators concerned about the heavy-duty DC power supply price, this unit delivers tier-one performance at factory-direct cost savings by eliminating intermediary distribution markups. The sealed IP54 cabinet protects electronics from humid, chemically aggressive environments typical in advanced oxidation treatment facilities.
Part 2 Technical Specifications Table

Part 3 Advanced Built-in Protection Systems
This rectifier deploys multi-layer safety architecture to protect both the power supply and downstream electrodes. Overvoltage protection instantly clamps output if the feedback loop detects drift, preventing anode passivation. Overcurrent protection reacts in under 5 milliseconds to electrode short circuits or bath foaming events. Reverse polarity detection disables output before connection errors damage the semiconductor stack. Phase loss and brownout protection ensures the unit shuts down gracefully rather than cycling during unstable mains conditions. A dedicated digital watchdog monitors internal temperature and derates current gradually if ambient exceeds 50°C, avoiding the catastrophic failure patterns seen in budget rectifiers.
Part 4 Target Industrial Applications
This power supply is optimized for electrocatalytic oxidation processes where mineralized electrodes and high current density demand consistent energy delivery. Primary applications include industrial effluent treatment for textile dyeing wastewater, pharmaceutical intermediate removal, and landfill leachate COD reduction. The unit supports both constant current and constant voltage modes, allowing operators to fine-tune the voltage gradient across multiple electrode pairs in series or parallel configurations. For combined processes like electro-Fenton advanced oxidation, the adjustable output waveform helps optimize hydroxyl radical generation without electrode sintering.
Part 5 Customization and Tailored Engineering Services
As your dedicated IGBT rectifier manufacturer, GAOHUI offers full customization before production. Our factory configures units across the full spectrum of 1V-1000V and 1A-100,000A, all AC input to DC output architectures. You can integrate a process timer for automated batch termination, multi-stage profile control for combining constant current and constant voltage phases in a single cycle, or an ampere-minute integrator for plating and deposition monitoring. Automatic reverse polarity modules support periodic electrode cleaning cycles without manual intervention. Soft-start circuits prevent transformer inrush and electrode thermal shock. Communication interfaces include RS485 Modbus RTU PID control, Ethernet TCP/IP for remote SCADA integration, 4-20mA analog monitoring, and pulse functions adjustable from 1-3000Hz for specialized electrocoagulation or pulse-plating requirements. Every custom current voltage rectifier comes with a two-year warranty and direct technical support from our application engineers.
