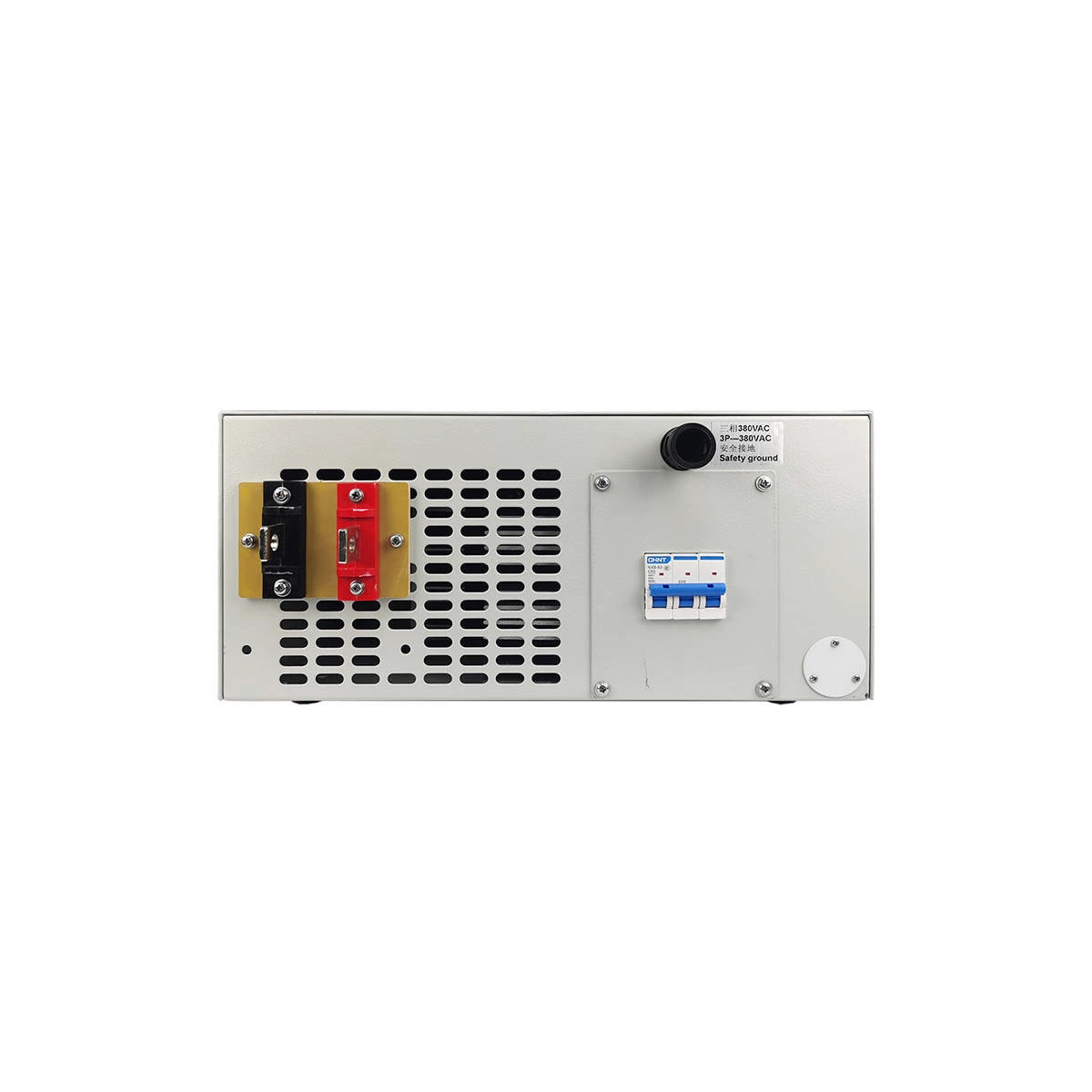

GAOHUI 12V 800A IGBT High Frequency Zinc Plating Rectifier for Electroplating DC Power Supply

Key Features and Engineering Highlights

– Advanced IGBT inverter technology delivers a stable 12V 800A DC output with up to 90% efficiency, reducing energy costs in high-volume zinc plating operations. This heavy-duty DC power supply price point is competitive for industrial high frequency rectifier factory requirements, ensuring long-term reliability for continuous duty cycles.
– Microsecond-level fault response time protects your plating bath and racks from short circuits and overloads, critical for maintaining consistent deposit quality in acid zinc plating and alkaline cyan-free zinc processes. As a trusted IGBT rectifier manufacturer, GAOHUI integrates this protection to minimize downtime.
– Digital control with precise voltage regulation from 0-12V and current regulation from 0-800A, enabling fine-tuning for zinc nickel plating on bolts or larger parts. The custom current voltage rectifier design supports 30 amps per square foot for standard rack plating, easily adjustable for small parts requiring lower amperage.
– Built-in power factor correction (PFC) above 0.95, compliant with national power quality standards for three-phase AC 380V ± 10% 60Hz input. This reduces harmonic distortion and improves overall system efficiency in your plating facility.

Technical Specifications Table

Advanced Built-in Protection Systems

– Overvoltage protection automatically cuts output if voltage exceeds 14V, safeguarding sensitive zinc plating baths from burning or anode passivation.
– Overcurrent protection with adjustable trip point from 800A to 880A, preventing damage to bus bars and cables during heavy-duty plating on large parts.
– Overtemperature protection with thermal sensors on IGBT modules and transformer, engaging fan cooling or shutdown at 85°C for reliable operation in hot shop environments.
– Short circuit protection with < 2 millisecond response, ensuring no arc flash or component failure when racks accidentally contact tank walls.
– Phase loss protection monitors all three input phases, shutting down if one phase drops, preventing single-phase operation that could damage the rectifier.

Target Industrial Applications

– Acid zinc plating for decorative and functional coatings on steel parts, including bolts, brackets, and automotive components requiring 2-5 volts at 30 amps per square foot.
– Alkaline cyan-free zinc plating for environmentally compliant processes, using 6-12 volts for barrel or rack plating on small hardware items.
– Zinc nickel alloy plating for corrosion-resistant coatings on fasteners and hydraulic components, demanding precise voltage control between 8-12V.
– Galvanized steel wire coating for continuous plating lines, where 800A supports multiple strands at moderate speeds.
– Small automatic or semi-automatic electrolytic plating machines for job shops processing mixed batches of zinc-plated parts.

Customization and Tailored Engineering Services

– GAOHUI offers full customization from 1V to 1000V and 1A to 100,000A, with input AC and output DC only, matching your specific zinc line requirements. For this 12V 800A model, we can scale to 12V 1000A for higher throughput on bolts and small parts.
– Custom functional modules include a Digital Process Timer for precise plating cycles, Multi-Stage Programmable Profile Control for ramp-up and hold sequences, Ampere-Minute Integrator for thickness monitoring, and Automatic Reverse Polarity for periodic current reversal to improve deposit uniformity.
– Additional options include Soft-Start Ramp-Up to prevent current surge on initial immersion, Local/Remote Control via Push-Button or HMI Touch Screen for operator convenience, and interfaces such as RS485 Modbus RTU, Ethernet, 4-20mA, and Pulse Functions with 1-100% duty cycle and 1-3000Hz frequency adjustable for advanced pulse plating on zinc nickel alloys.
– All custom rectifiers are engineered and tested at our industrial high frequency rectifier factory, with 2-year warranty and full technical support for integration into your existing plating line.
