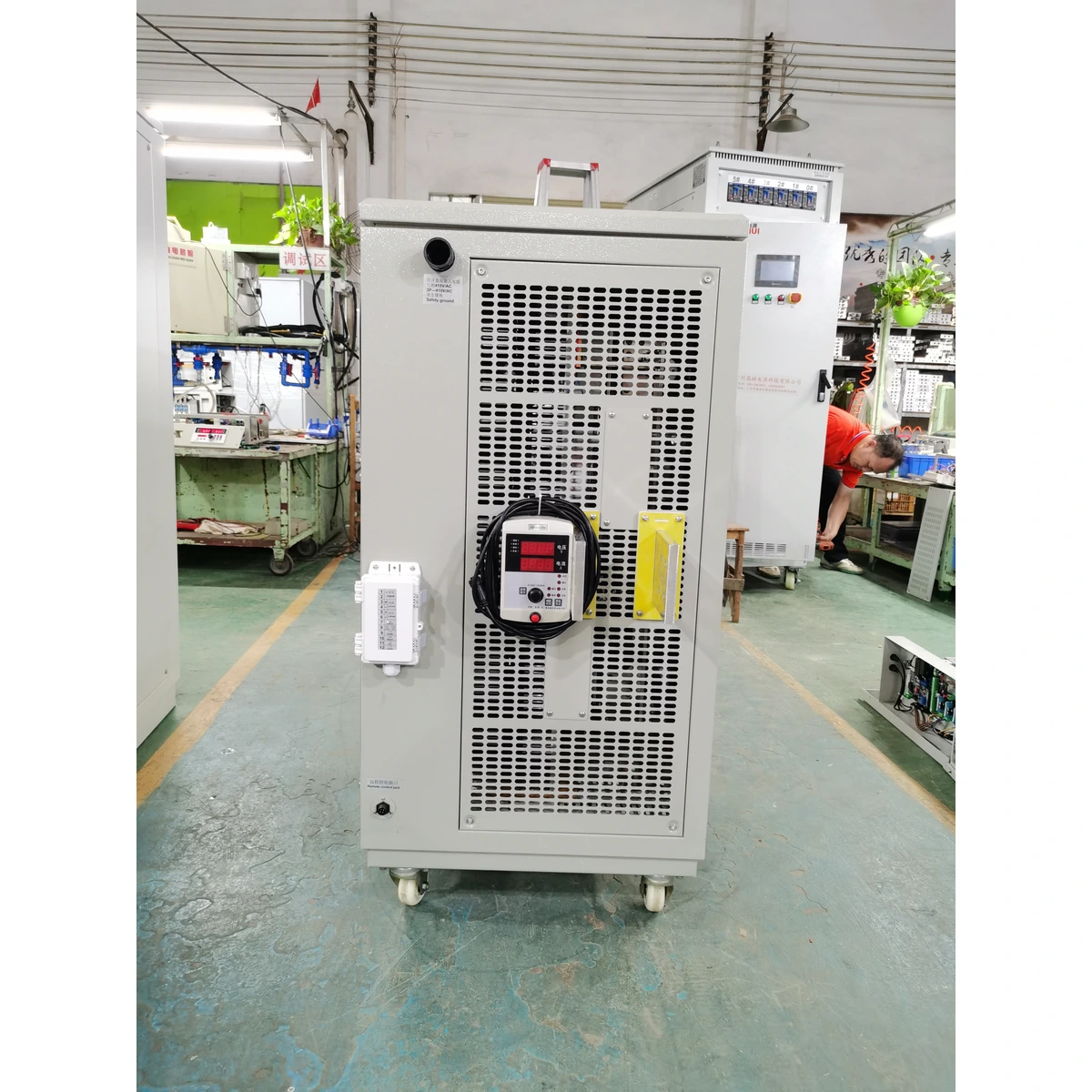

Designed specifically for heavy industrial hydrometallurgy and metal recovery circuits, the GAOHUI 12V 6000A rectifier delivers pure, stable DC power for precision electrolysis processes. Unlike consumer jump starters which provide short bursts for automotive cranking, this unit is engineered for continuous 24/7 operation in nickel and lead recovery plants, providing low-ripple current below 5% that protects electrode integrity and maximizes current efficiency. As a dedicated industrial high frequency rectifier factory, GAOHUI ensures this unit operates at efficiency levels exceeding 90%, reducing energy waste in high-intensity electrolytic applications.
PART 1: KEY FEATURES & ENGINEERING HIGHLIGHTS
IGBT Inverter Technology switching at 20kHz allows for a compact chassis with reduced copper losses and precise voltage regulation of ±0.5%. The integrated microprocessor control ensures zero crossover distortion, critical for maintaining uniform metal deposition in nickel lead recovery. This unit directly competes with legacy SCR designs but offers 30% less weight and superior dynamic response. For procurement managers evaluating heavy-duty DC power supply price, this model provides a lower total cost of ownership due to reduced cooling requirements and longer operational lifespan.
PART 2: TECHNICAL SPECIFICATIONS TABLE
| Rated Output Voltage | 0-12V DC (continuously adjustable) |
| Rated Output Current | 0-6000A DC (continuously adjustable) |
| Input Voltage | 3-Phase 380V AC / 480V AC (configured per site) |
| Cooling Method | Forced Air Cooling via industrial grade fans |
| Ripple Factor | Less than 5% RMS at full load |
| Power Factor | Greater than 0.92 at rated load |
| Efficiency | Greater than 90% at full rated output |
| Protection Class | IP54 (electronics bay), IP20 (transformer section) |
| Material | Heavy gauge steel chassis with powder coated finish |
| Dimensions | 1200mm x 800mm x 1800mm (approximate, varies with options) |
PART 3: ADVANCED BUILT-IN PROTECTION SYSTEMS
Overvoltage, Overcurrent, Overtemperature, Short Circuit, Phase Loss, and Reverse Polarity protection are all standard. The rectifier also features an automatic soft-start circuit to prevent inrush current when energizing large capacitive loads inherent to electrolysis tanks. Each critical semiconductor is safeguarded by thermal sensors that trigger fault alarms before component failure.
PART 4: TARGET INDUSTRIAL APPLICATIONS
Directly deployed in nickel purification plants and lead electrowinning facilities where consistent DC power drives electrochemical reactions. Also used in heavy metal wastewater recycling processes to recover copper, zinc, or nickel from acidic solutions. As a trusted IGBT rectifier manufacturer, GAOHUI supports production environments requiring precise current density control for optimized metal purity.
PART 5: CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
Our factory excels in providing a custom current voltage rectifier configured to exact process requirements. Standard specifications can be adjusted within a range of 1V to 1000V and 1A to 100,000A. Input options include single-phase or three-phase AC, while output is exclusively pure DC. Available auxiliary modules include a Process Timer for automated batch cycles, Multi-Stage Profile Control to vary current over time, an Ampere-Minute Integrator for charge tracking, Automatic Reverse Polarity for periodic cleaning cycles, and a Soft-Start circuit. Communication interfaces support RS485 Modbus RTU, Ethernet TCP/IP, and 4-20mA analog control signals. Pulse functions can be integrated with adjustable frequency from 1Hz to 3000Hz for specialized periodic reverse electrodeposition techniques.
