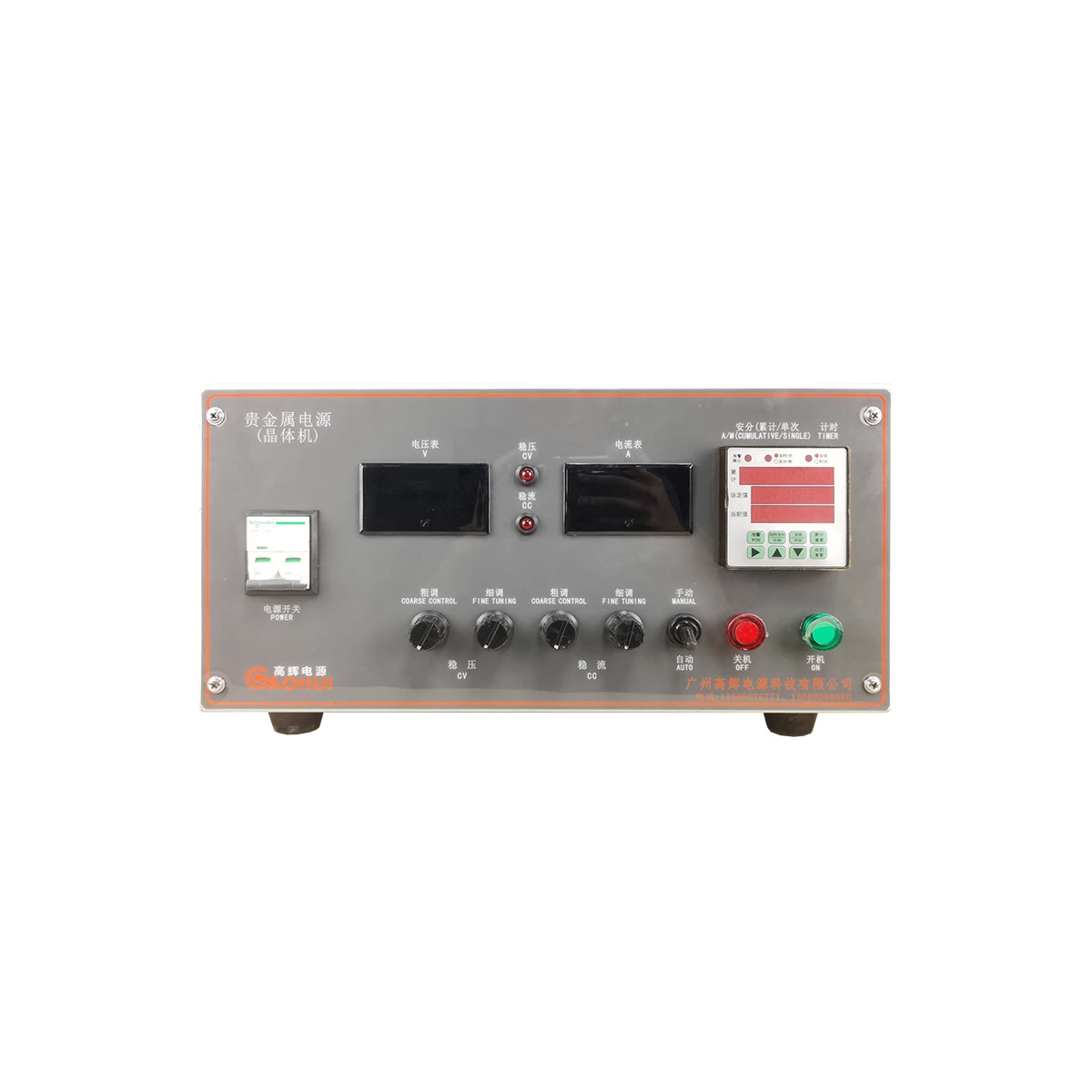

The 12V 100A Industrial Silver Plating Rectifier is a unidirectional DC power supply rated at 12 V and 100 A for silver electroplating projects. The published rating defines the available DC envelope; it does not replace process calculations or establish the normal operating setpoint.
Published Rating and Electrical Boundary
| Rated DC output | 12 V DC, 100 A DC |
|---|---|
| Application | silver electroplating |
| Regulation | Constant-current or constant-voltage main mode, selected for the confirmed process |
| AC input | AC 220 V or 380 V; AC 415 V can be evaluated as a site option. Final phase and frequency must be confirmed. |
This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.
Application and Selection
This page applies to silver or silver-alloy deposition for a defined decorative, conductive, contact or engineering objective Use effective energized area and the current-density window from the exact chemistry; soft gold, hard gold, flash and thick deposits are not interchangeable. Confirm loaded cell voltage from chemistry, contacts, spacing, selective electrodes and connection losses.
Silver chemistry, substrate, underplate and coating purpose must be confirmed; values from gold or other precious metals do not transfer automatically.
Voltage-loss focus: include electrode gaps, busbars, cables, contacts, fixtures and electrolyte or load resistance when checking loaded voltage. Excess voltage margin can increase heat without improving the process.
Information Required for Selection
- metal or alloy
- chemistry supplier and product
- substrate and underplate
- coating purpose and thickness
- effective area and load
- approved current density
- rack, barrel, selective or continuous method
- waveform and traceability requirements
Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.
Configuration Boundary
The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.
Frequently Asked Questions
Why can working voltage be below the rated voltage?
The rated value provides an operating envelope. The actual requirement is the loaded process voltage plus verified conductor and contact losses.
Can AC input be selected from DC current alone?
No. DC voltage and current determine output power, and the site supply, phase and frequency must also be confirmed.
Does the page guarantee a particular process result?
No. Process results also depend on chemistry, materials, geometry, preparation and the validated operating recipe.
Review related options in Electroplating Rectifiers, or contact Gao Hui with the selection data above.
