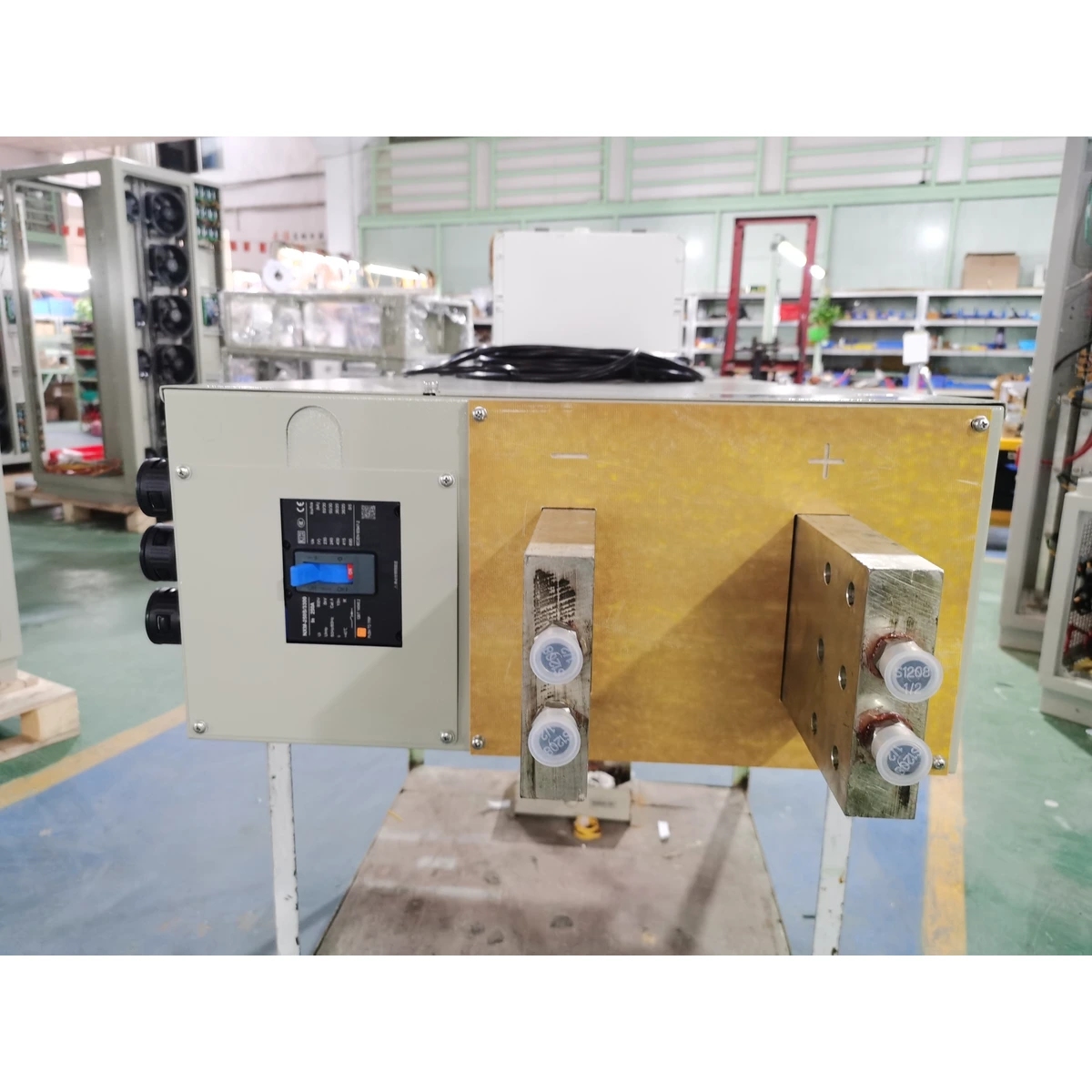

Electrocatalytic Oxidation – 48V 1000A Ripple-Free Industrial High Frequency Rectifier

EXECUTIVE SUMMARY
This 48V 1000A power supply is purpose-built for demanding electrocatalytic oxidation processes where mineralized anodes and high current density demand zero ripple, precise voltage clamping, and rock-solid DC stability. Engineered for continuous-duty operation in industrial effluent treatment facilities, this rectifier delivers the exact electrical characteristics required for hydroxyl radical generation while maintaining optimal electrode longevity. The unit operates in either voltage-regulated current-limited mode or current-regulated voltage-limited mode with seamless analog switching, giving process engineers full control over COD removal kinetics and oxidation reduction potential.
PART 1 KEY FEATURES AND ENGINEERING HIGHLIGHTS
Modular IGBT topology ensures over 92% efficiency at full rated load, significantly reducing thermal load on facility cooling systems compared to traditional SCR designs. The high-frequency switching architecture eliminates bulky line-frequency transformers and provides instantaneous response to load changes typical of electrocatalytic baths where conductivity shifts rapidly with pollutant concentration.
As a trusted IGBT rectifier manufacturer, we equip this unit with dual-mode regulation (CV/CC) that transitions without output glitches, critical for protecting sensitive electrode coatings. The output ripple is less than 1% RMS at any operating point, preventing unwanted side reactions and maximizing current efficiency for advanced oxidation processes.
PART 2 TECHNICAL SPECIFICATIONS

PART 3 ADVANCED BUILT-IN PROTECTION SYSTEMS
This power supply incorporates multi-layer safety architecture to protect both the equipment and the electrolytic process. Primary protections include reverse polarity protection on output terminals, over-temperature shutdown with auto-recovery hysteresis, and instantaneous overcurrent trip at 110% of set value. Additional features include DC ground fault detection, phase-loss monitoring on the AC input side, and soft-start circuitry that prevents inrush current spikes during initial contactor closure. The advanced protection logic differentiates between transient load faults and genuine system failures, reducing nuisance trips while maintaining process uptime.
PART 4 TARGET INDUSTRIAL APPLICATIONS
This rectifier is specifically engineered for electrocatalytic oxidation cells used in industrial effluent treatment systems targeting high-strength COD removal. Typical installations include textile dye wastewater decolorization, landfill leachate treatment, pharmaceutical intermediate destruction, and pesticide manufacturing effluent remediation. The 48V 1000A output matches the voltage-current balance required for boron-doped diamond (BDD) anodes, mixed metal oxide (MMO) electrodes, and lead dioxide anodes operating in high-conductivity waste streams. Electro-fenton advanced oxidation processes benefit particularly from the low-ripple output which stabilizes hydrogen peroxide generation kinetics.
PART 5 CUSTOMIZATION AND TAILORED ENGINEERING SERVICES
As a full-service custom current voltage rectifier specialist, our factory supports an extensive range of customization across voltage (1V–1000V), current (1A–100,000A), with DC output only. The standard unit includes RS485 Modbus RTU and Ethernet interfaces for centralized monitoring and control. Optional enhancements include an integrated process timer for batch cycle management, multi-stage profile control enabling stepped voltage or current ramping, and ampere-minute integrator for Coulomb-based dosing. For advanced treatment sequences, automatic reverse polarity switching reverses electrode polarity at programmable intervals to mitigate passivation. A 4-20mA analog interface provides direct connection to existing PLC and DCS systems. Pulse function modules are available with adjustable frequency from 1Hz to 3000Hz, pulse duty cycle from 10% to 90%, enabling pulsed electrocatalytic operation for enhanced mass transfer. Each unit receives full-load burn-in testing before shipment. For competitive heavy-duty DC power supply price quotes or to discuss your process requirements directly with an industrial high frequency rectifier factory engineer, contact our technical sales team.
