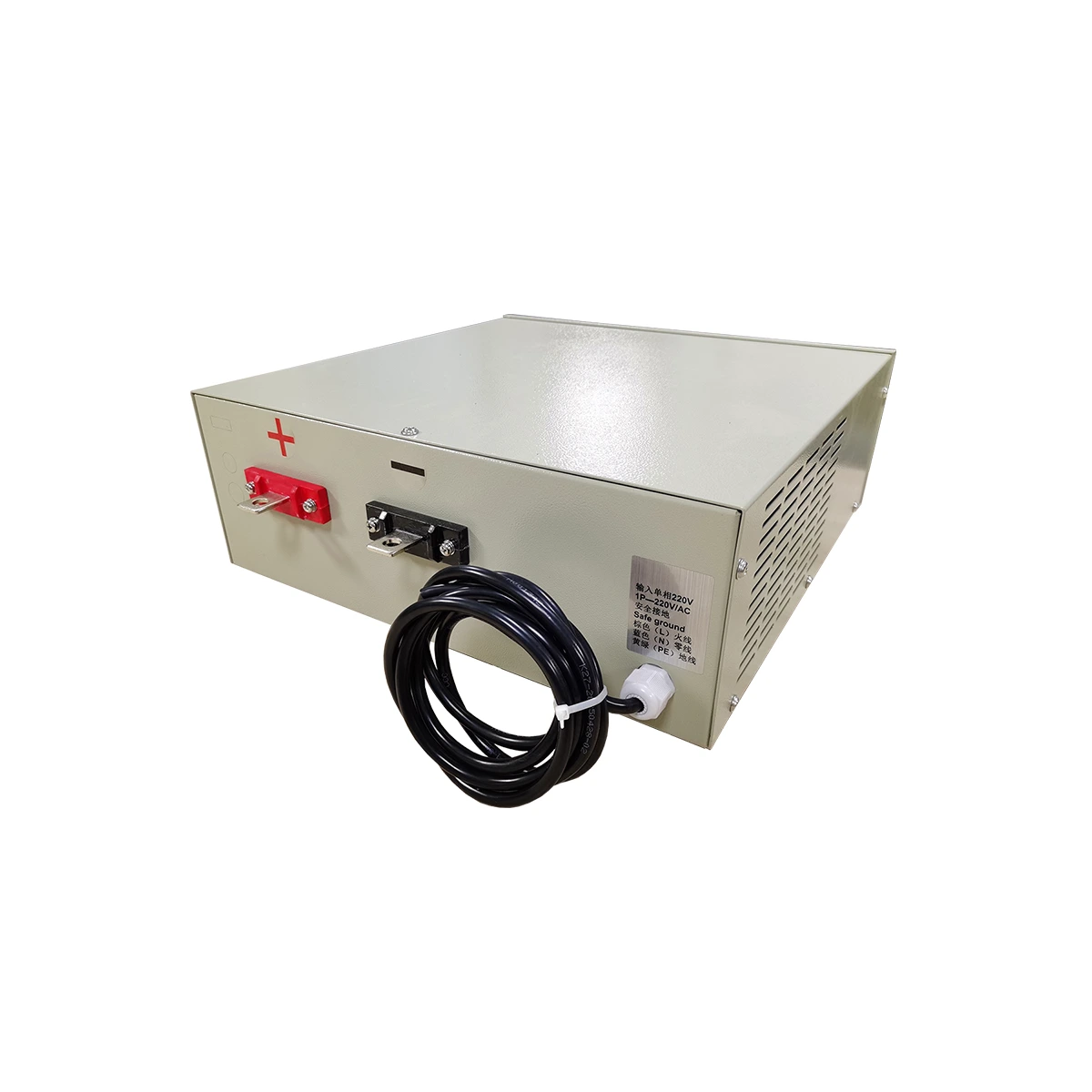

2400W DC Power Supply 12 Volts 200 Amps Diamond Electrodeposition Rectifier

Executive Summary
This 2400W industrial rectifier is engineered for the specialized demands of diamond tool electroplating and composite electrodeposition processes. Operating at a precise 12V 200A output, it provides the stable, ripple-free DC current necessary for the uniform co-deposition of diamond particles within a metal matrix, whether for abrasive tools, cutting segments, or wear-resistant coatings. Unlike generic power supplies, this unit is configured for continuous 24/7 production duty at an industrial high frequency rectifier factory, delivering consistent metal ion reduction and particle encapsulation. The design directly addresses the need for a programmable, repeatable current profile essential for achieving high-quality diamond retention and matrix adhesion.
Part 1: Key Features & Engineering Highlights
This unit moves beyond basic rectification to offer process-controlled power for precision coating. Its core strength lies in delivering a steady, adjustable DC waveform that prevents particle settling and ensures even deposit thickness on complex cathode geometries. The power stage utilizes advanced IGBT switching technology, minimizing thermal drift and output fluctuation. As a result, buyers seeking a heavy-duty DC power supply price often find this model provides a superior cost-performance ratio for high-volume diamond tool manufacturing due to its extended lifespan and lower ripple factor. Consult a trusted IGBT rectifier manufacturer to confirm compatibility with your specific electrolyte chemistry and bath loading. For integrated systems, we offer a custom current voltage rectifier tailored to match your exact process chamber impedance and automation requirements.
Part 2: Technical Specifications Table

Part 3: Advanced Built-in Protection Systems
Continuous electrodeposition of diamond tools requires fault-tolerant operation. This rectifier integrates multiple layers of protection to safeguard both the power supply and your valuable product batch. An electronic current limiter prevents exceeding the set current in the event of a short circuit or sudden load change, commonly encountered during initial rack immersion. Active overtemperature monitoring adjusts fan speed and can trigger a soft shutdown if internal temperatures exceed safe operating limits. Additionally, the unit features a hardware-based overvoltage clamp that activates within microseconds to protect sensitive digital controllers and the deposition bath from power surges. These features are standard, not optional upgrades, ensuring operational longevity.
Part 4: Target Industrial Applications
This model series is precisely calibrated for several niche electroforming and electroplating processes. Primary uses include:
Diamond Tool Coating: Ensuring uniform distribution of synthetic diamond grit within nickel or cobalt matrices for saw blades, grinding wheels, and wire saws.
Composite Electrodeposition: Co-depositing ceramic particles (SiC, Al2O3) with metals for wear-resistant industrial components.
Abrasive Tool Manufacturing: Building up thick, dense abrasive layers on mandrels for honing tools and drilling segments.
Specialized Electroforming: Creating free-standing metallic parts with embedded particulate reinforcement where low stress and dimensional accuracy are critical.
Part 5: Customization and Tailored Engineering Services
We recognize that commercial diamond coating baths have unique process requirements. Our factory capabilities extend far beyond standard catalog units. We offer full customization across three key dimensions:
Electrical Range: We can engineer any output from 1V to 1000V and from 1A to 100,000A, matching your specific rectifier size to your tank and part geometry. Input options are AC only; output is strictly filtered DC.
Process Controllers: Enhance your system with built-in modules including a Process Timer for total plating time, a Multi-Stage Profile Control for ramping current, an Ampere-Minute Integrator for precise deposit weight, and Automatic Reverse Polarity for periodic current reversal (PPR) to improve deposit density.
Control & Pulse Integration: Standard interfaces include RS485 Modbus RTU, Ethernet TCP/IP, and analog 4-20mA signal for seamless PLC integration. For advanced applications, we integrate Pulse Functions from 1 to 3000Hz with adjustable duty cycle, crucial for optimizing particle embedment in abrasive tools co-deposition. All units feature a Soft-Start function to eliminate initial current surge. Contact our engineering team for a complete BOM and CAD drawing of your custom power module.
